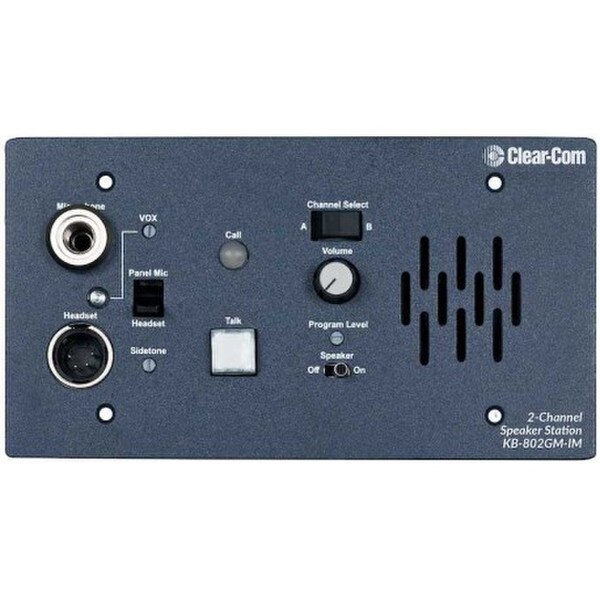

Clear-Com 2 Ch. M+I Flush-Mount Speaker Station

Encore Marine certified and DNV-GL registered two-channel selectable flush-mount headset/speaker station, gooseneck microphone jack and VOX. Mounts in four-gang box, console, or V-Box accessory enclosure 21.6cm/8.25" X 11.4cm/4.5". Includes a Four-pin male headset connector. Mic preamp with limiter and proprietary speech-shaping circuits improve the quality of words spoken into the system. With balanced or unbalanced line-level audio inputs, users can monitor program feeds at the station or send to another channel where it can be set up for Program Interrupt. Individual Sidetone control allows the operator to vary the level of his or her own voice as heard in the headset.

Features:

• 2-Channel Remote Speaker Station with Gooseneck Mic Connector
• Selectable one- or two-channel communication
• IP-20 environmental rating
• Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
• Marine Certification compliant with DNVGL-CG-0339 (2016)
• Visual and audible call signaling with bright LED indicator
• Mic jack for gooseneck mic plus VOX circuitry
• Optional 4-wire daughter boards
• Wall or console mount, or optional V-BOX for portable or desktop use

Specifications:

• Panel Microphone Input
  • Input Type: Electret
  • Input Impedance: >=2K
  • Mic Limiter Threshold: -2dBu ±3dB
  • Mic Limiter Range: >= 15dB
• Headset Microphone Input
  • Input Type: Dynamic
  • Input Impedance: >= 1K
  • Mic Limiter Threshold: -2dBu ± 3dB
  • Mic Limiter Range: >= 15dB
• Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K
  • Headset Output
  • Load Impedance: >= 8
  • Output Impedance: <= 25
  • Output Limiter Threshold: +5dBu ± 3dB
  • Maximum Output Level before Distortion: >= 17dBu
• Speaker Output
  • Load Impedance: >= 4
  • Max Output Level before
  • 1% Distortion: 20dBu ± 2dBu
  • Partyline Output
  • Off Noise: < -74dBu
  • Output Impedance: >10K
• Partyline Input
  • Crosstalk: < -60dB
  • Max level before Clipping : >= 12dBu
  • Sidetone Null Capability: > 25dB
• Frequency Response
  • Panel Mic – Partyline: 300 – 16KHz ± 3dB
  • Headset Mic – Partyline: 300 – 15KHz ± 3dB
  • Program Input – Headset Out: 200 – 18KHz ± 3dB
  • Program Input – Speaker Out: 200 – 18KHz ± 3dB
  • Partyline – Headset Out: 200 – 18KHz ± 3dB
  • Partyline – Speaker Out: 200 – 18KHz ± 3dB
• Max Distortion
  • Panel Mic – Partyline: <= 0.5%
  • Headset Mic – Partyline: <= 0.5%
  • Program Input – Headset Out: <= 0.2%
  • Program Input – Speaker Out: <= 0.5%
  • Partyline – Headset Out: <= 0.2%
  • Partyline – Speaker Out: <= 0.5%
• Noise
  • Panel Mic – Partyline: < -65dBu
  • Headset Mic – Partyline: < -70dBu
  • Program Input – Headset Out: < -60dBu
  • Program Input – Speaker Out: < -60dBu
  • Partyline – Headset Out: < -50dBu
  • Partyline – Speaker Out: < -50dBu
• Max Gain
  • Panel Mic – Partyline: >= 37dB
  • Headset Mic – Partyline: 41dB ± 2dB
  • Program Input – Headset Out: >= 18dB
  • Program Input – Speaker Out: >= 24dB
  • Partyline – Headset Out: >= 34dB
  • Partyline – Speaker Out: >= 40dB
• Power
  • Input Voltage Range: 20-30 VDC
  • Input Current (Idle): <= 90mA
  • Input Current (Max): <=110mA
• Internal Adjustments and Connections
  • Intercom: Line Five terminal connector
  • Program Input Three terminal connector
  • Option Switches: Three DIP switches
  • Call Signal Jumper3: Three sets of options jumpers
  • Call Alert Tone Level Control: Level adjustment control
  • Front Panel Connectors
    • Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
    • Headset: (1) XLR-4M
  • Front Panel Controls & Indicators
    • (1) Panel /headset mic switch
    • (1) Program monitor level control
    • (1) Sidetone null control
    • (1) Talk button
    • (1) Call button
    • (1) Speaker ON-OFF switch
    • (1) Channel select switch
    • (1) Speaker volume control
    • (1) VOX control
    • (1) VOX indicator
• Environmental
  • 32 – 122°F (0 – 50°C)
  • Relative Humidity: 0 – 96%, non-condensing
  • Vibration Frequency Range: 2 – 13.2 Hz
  • Amplitude: 1.0 mm
  • Peak Value Frequency Range: 13.2 – 100 Hz,
  • Acceleration Amplitude: 0.7 g
  • EMC: DNVGL-CG-0339 – Class B
  • Enclosure: IP-20
• Dimensions
  • 4.5 x 8.25 x 1.75 (HxWxD)
  • (114 x 210 x 44 mm)
• Weight
  • 1.1 lbs (0.50 Kg)

• Certifications and Compliance
  • This device complies with part 15 of the FCC Rules.
  • This device complies with European Union CE Mark:
  • Electromagnetic Compatibility Directive 2014/30/EU
  • Low Voltage Directive 2014/35/EU
  • RoHS Directive 2011/65/EU
  • Standards: EN 55032, EN 55024, EN 60950-1, EN 50581
  • This device complies with Maritime Certification:
  • Conformity with DNVGL-CG-0339 Edition November 2016
  • Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
  • Compass Safety Distance conformity per DNVGL-CG-0339 and IEC 60945
