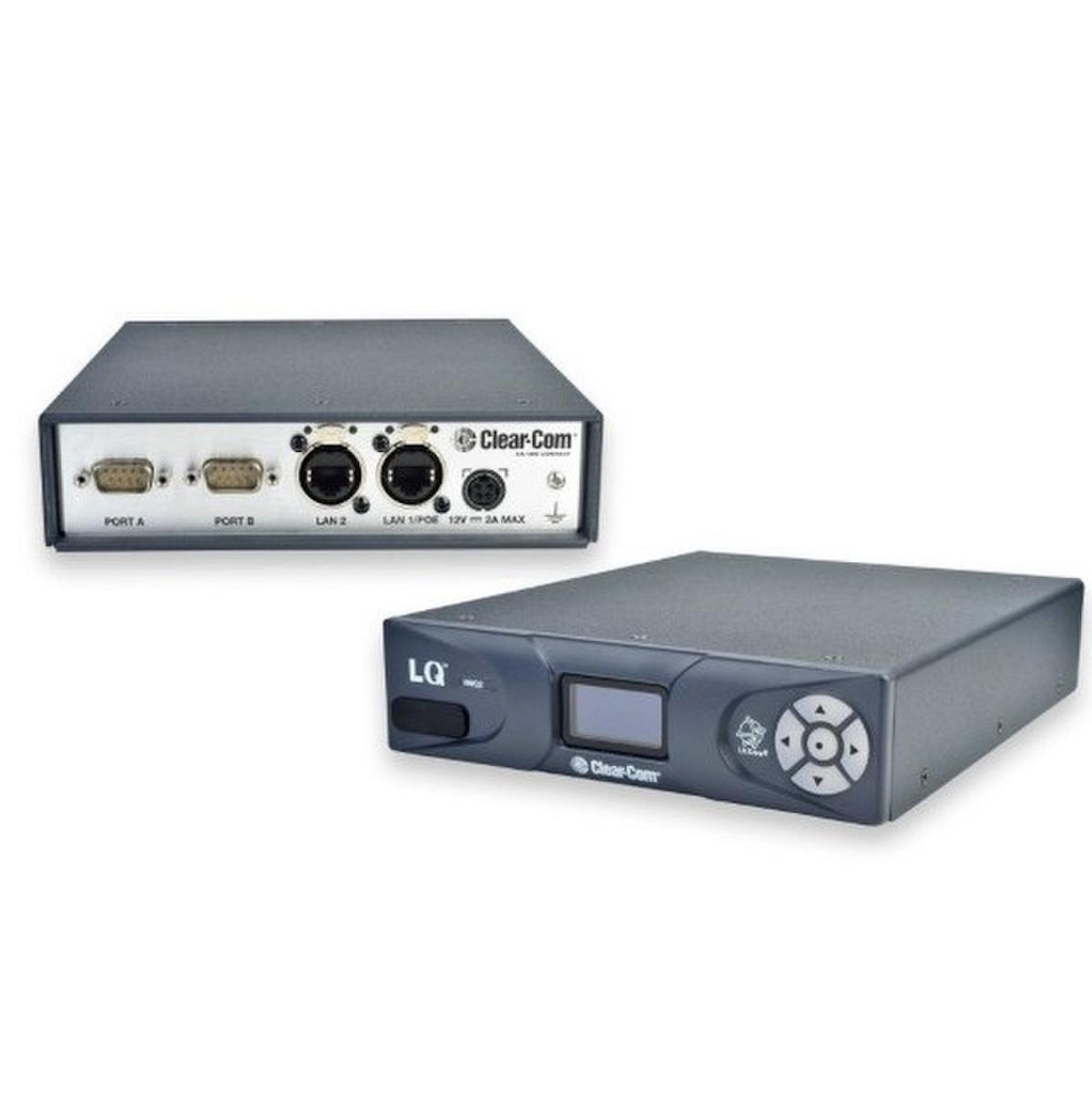

Clear-Com 2-Channel 4-Wire GPIO IP Interface

The LQ-4WG2 is a compact box that enables connection of 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The LQ-4WG2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.

Specifications:

Audio:

• Resolution: 12, 24 bit
• Sample Rate: 24, 48 KHz
• Frequency Response: 100 - 12 KHz or 100 - 20 KHz
• CODEC: OPUS
• Line Level: (0 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB
• Mic Level: (-50 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB

Network Setting:

• Bit Rates: 16, 32, 48, 64, 128Kbps
• Packet Size: 5, 10, 20, 40, 60ms
• Jitter Buffers: 0 - 1000ms

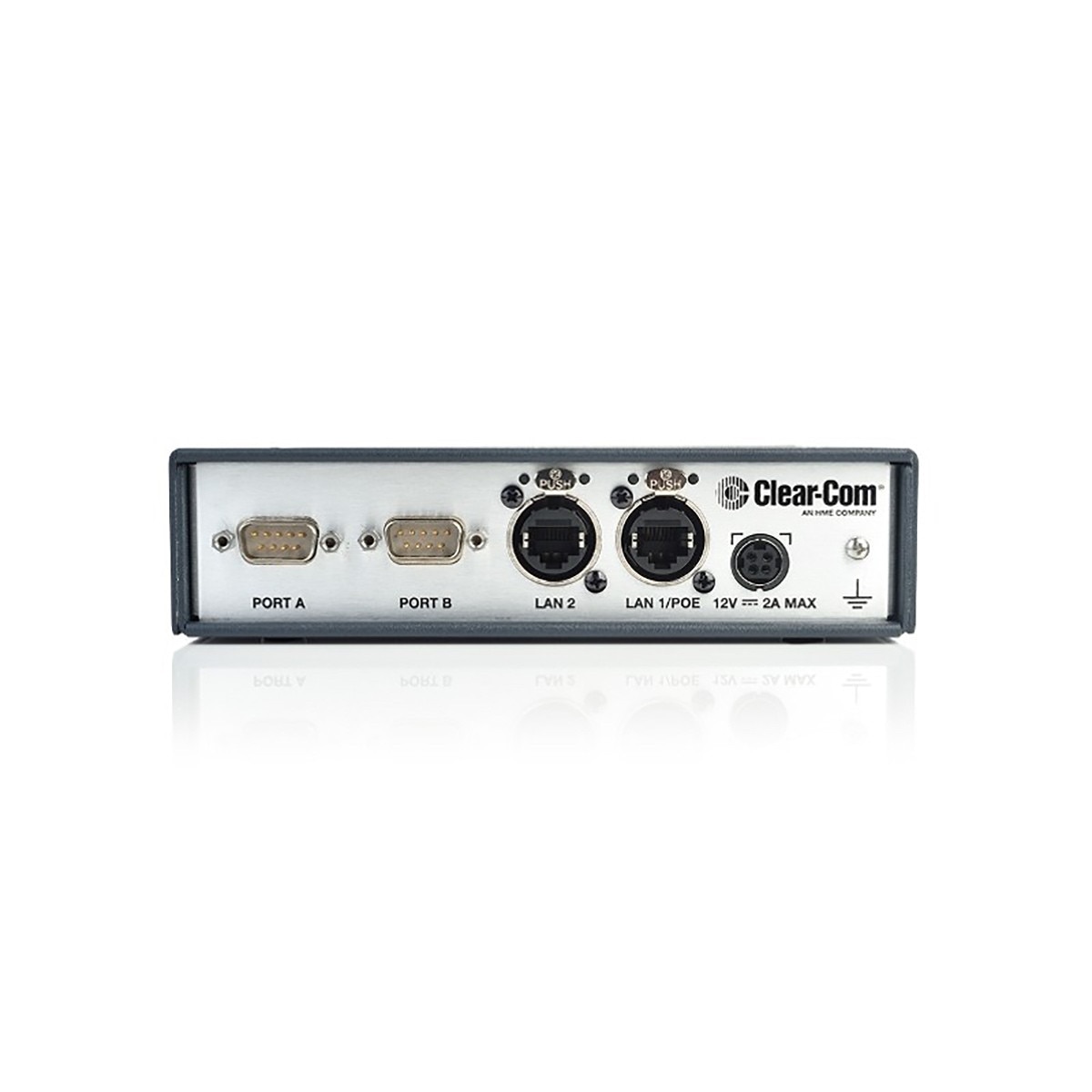

Connectors:

• Network/LAN: EtherCON/RJ45 (female)
• 4-wire with GPIO Audio I/O: 9-way D-type (male)

Partyline Output Current:

• Type: Clear-Com & RTS TW
• Local DC Powered: 150mA
• POE Powered: 70mA

Power Supply:

• Plug-in adapter with sleeve locking connector (US, UK, Europe, AUS & China sockets included)
• Input: 100-240V, 47-63Hz, 0.58A MAX
• Output: DC 12V, 2A, 24W MAX

Environmental:

• Operating Temperature: +32 degrees F - +104 degrees F (0 degrees C - +40 degrees C)
• Storage Temperature: -67 degrees F - +158 degrees F (-55 degrees C - +70 degrees C)
• Humidity: 90%, non-condensing

Dimensions:

• (W x H x D): 6.8 x 1.79 x 8.45” (173 x 46 x 215mm)

Weight:

• 1.83 lbs (.83kg)
