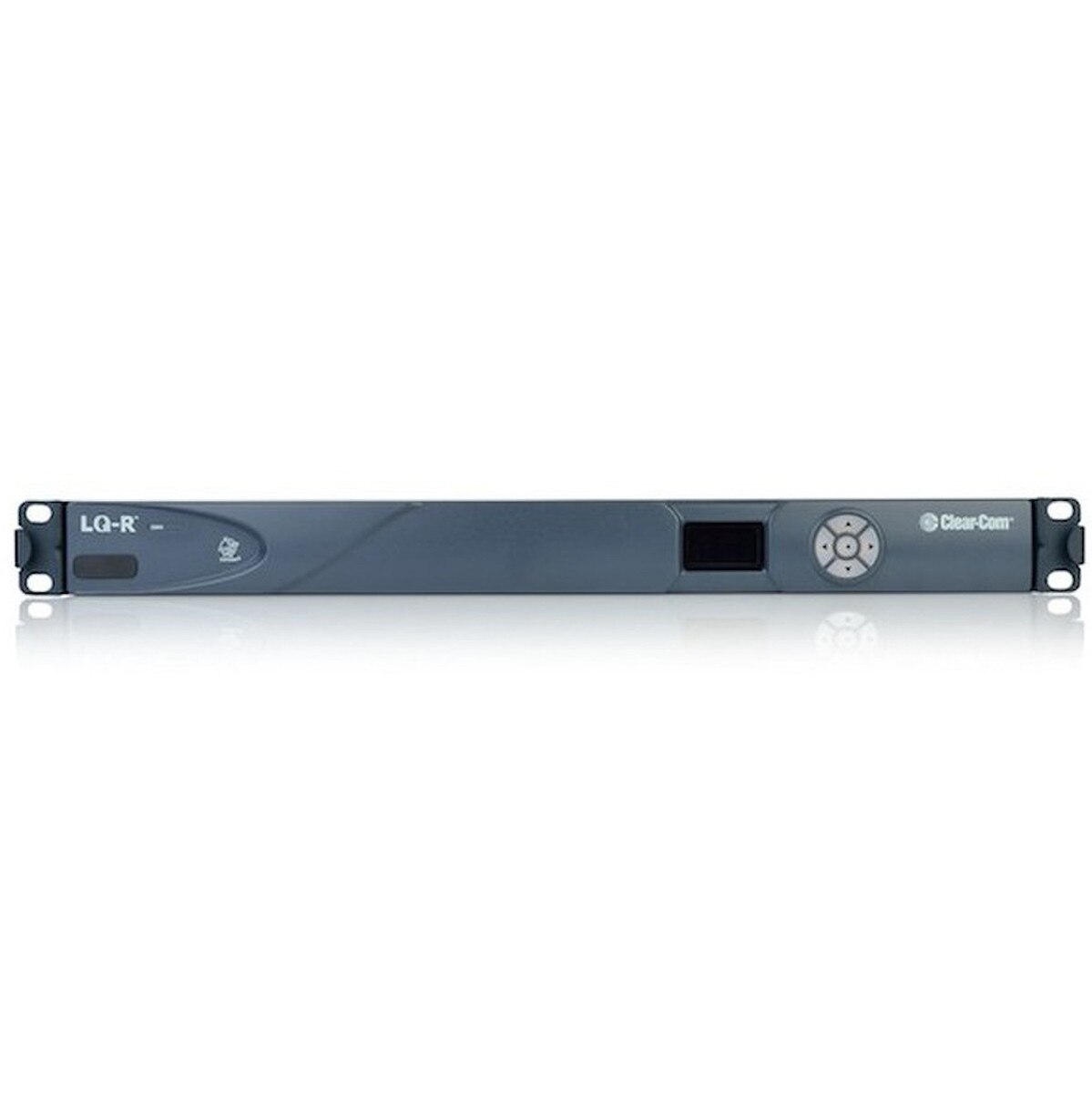

Clear-Com 4 Ch. Partyline IP Communications Interface
The LQ-R2W4 enables the connection of partyline audio devices over LAN, WAN or Internet IP infrastructures in a 1RU panel. Connect up to 6 panels together to create standalone partyline intercom group. The LQ-R2W4 is Clear-Com and RTS compatible. Each port has Female and Male XLR connectors to allow loop through.
Specifications:
Audio
- Resolution: 12 bit
- Sample Rate: 24KHz
- Frequency Response: 100 – 12KHz
- CODEC: OPUS
Partyline Audio
- Input Gain: -3dB to +3dB
- Output Gain: -3dB to +3dB
Network Setting
- Bit Rates: 16, 32, 48, 64, 128Kbps
- Packet Size: 5, 10, 20, 40, 60ms
- Jitter Buffers: 0 - 1000ms
Connectors
- Network/LAN: EtherCON/RJ45 (female)
- Partyline Audio I/O: 3 Pin XLR (female)
Partyline Output Current
- Type: Clear-Com & RTS TW
- Local DC Powered: 250mA per pair of PL ports (500mA total)
Power Supply
- In-line supply with sleeve locking connector
- Input: 100-240V, 50-60Hz, 1.4A MAX
- Output: DC 12V, 5A, 60W MAX
Environmental
- Operating Temperature: +32°F - +104°F
- (0°C - +40°C)
- Storage Temperature: -67°F - +158°F
- (-55°C - +70°C)
- Humidity: 90%, non-condensing
Dimensions
- 19” W x 1.79” H x 8.8” D
- (483mm x 46mm x 224mm)
