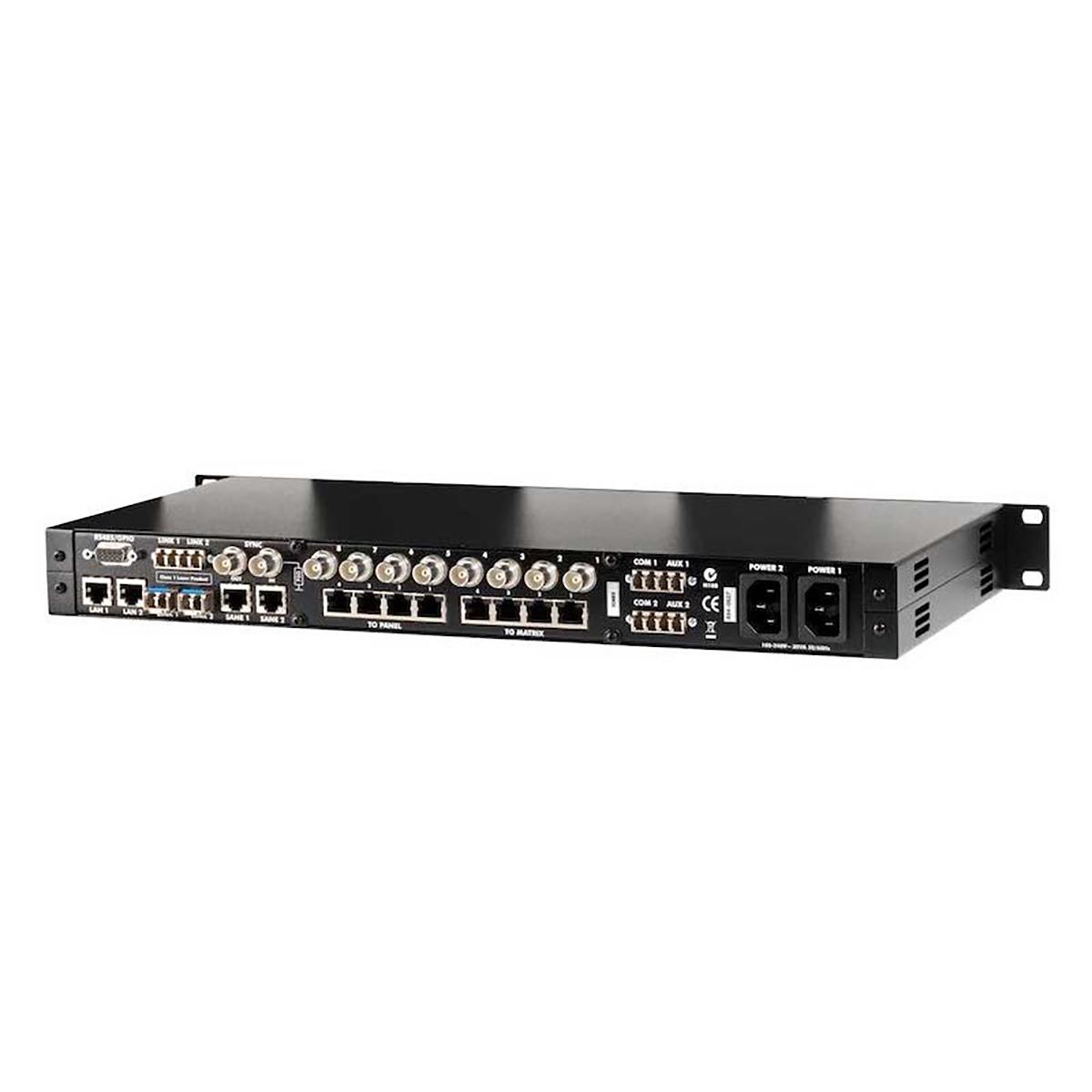

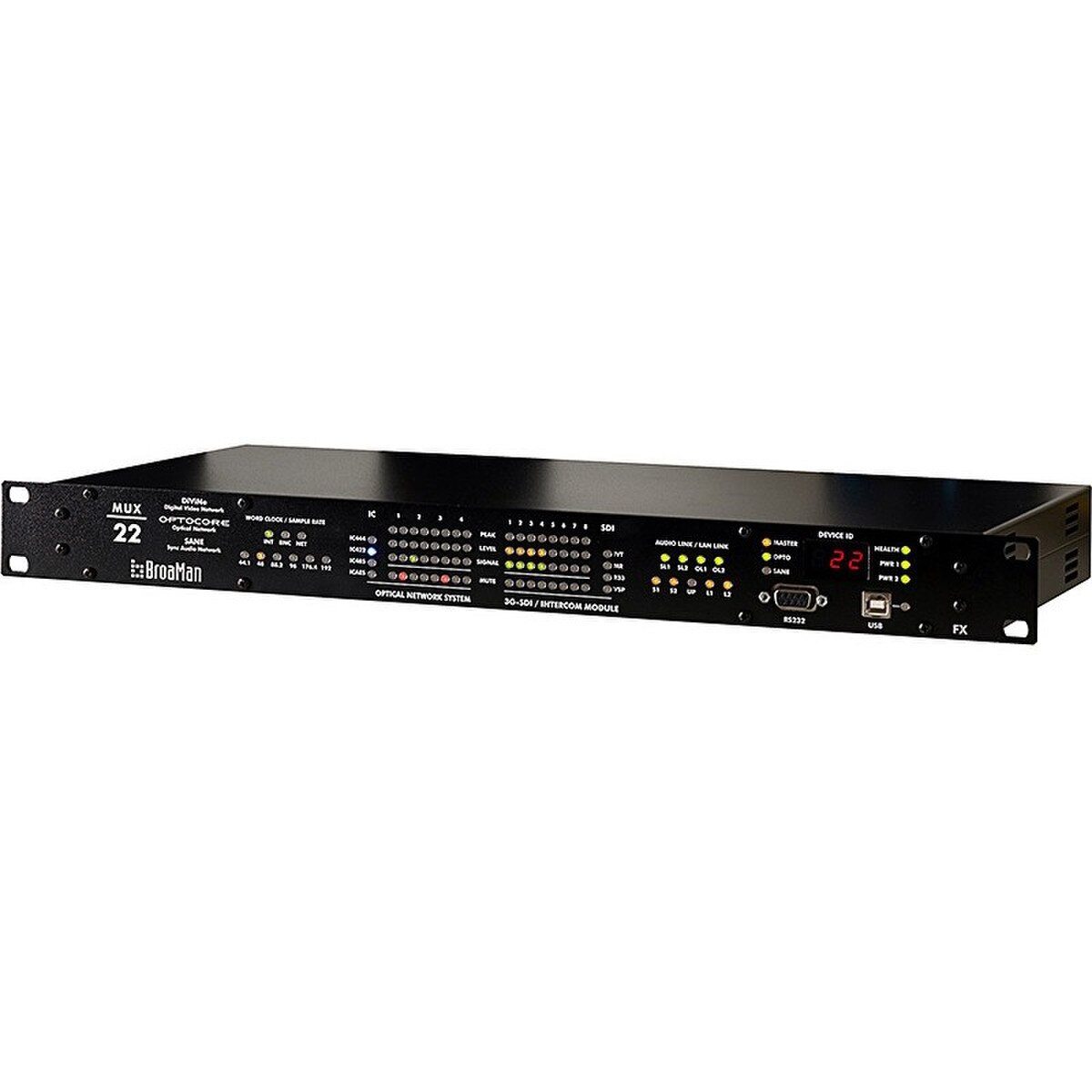

Clear-Com 4 Dual BNC MADI + 4 Video in 4 Video Out Fiber MUX

One 1RU single point to point BroaMan Intercom and Video interface with two SANE CAT5 network ports and Optocore Single-Mode LC Fiber interface, includes 4 Dual BNC MADI I/O, 4 3G-SDI video inputs and 4 3G-SDI video outputs and GPIO Option card. Separate sync i/o, 2 LAN ports and 1 Auxiliary 1310nm fiber tunnel is available.

NOTE at least two compatible BroaMan MUX-22 interfaces are required for an end to end link.

Features:

• 1RU 8-Port Fiber Transport Interface Devices
• Seamlessly transports, routes and distributes audio, video, intercom and control data over one fiber optic cable
• Full integration into SANE, DiViNe and Optocore network
• SD/HD/3G-SDI capacity
• 8 SD/HD/3G-SDI ports
• 4 simplex LC fiber ports
• CWDM (Coarse Wavelength Division Multiplexing) module
• Tri/Bi-level video clock input and output module
• Optocore module
• 2 x Optocore 2Gbps ports
• 2 x SANE/LAN ports
• 2 x LAN ports
• 4 x RS485/422 ports
• Word Clock I/O
• Redundant power supplies
• Full control with ProGrid control software
• LAN, USB and RS232 ports for configuration

Specifications:

Intercom Ports

• Connector: 4-wire Clear-Com standard; 4 x input, 4 x output RJ45, Clear-Com convention

Optical Link

• Connection: Duplex LC
• Protocol: Optocore
• Transmission: Full Duplex
• Fiber Cable Lengths: Standard singlemode transceiver <10 km; Special singlemode transceiver < 80 km (on request)
• SANE, LAN ports
• Auxiliary Ports
• Convention EIA / TIA-485
• Data channels: Digital control data; 4
• Data rate: Up to 10 Mbps
• Impedance: Termination; 330 Ω; Source; ≤ 10 Ω

Video

• Standards: SD, ED, HD, Dual Link, 3G
• Complies with SMPTE: 259M, 292M, 344M, 372M, 424M
• Interface: SDI – Serial Digital Interface

Word Clock

• Hardware standard
• BNC – 75 Ω
• Data Rate: Dependent on sample rate; Up to 192 kHz
• Impedance: Output ≤ 5 Ω; Input 75 Ω
• Drive Level: Output; ≥ 1 Vpp
• Zero Level: Referring to GND; +1.7 V
• Sense Level: Input; ≥ 400 mVpp

Optical Connection

• Complies with 21 CFR 1040.10 and 1040.11

Remote Control

• RS232: EIA / TIA – 232; 57 600 Baud
• USB: USB 2.0 – Device; 12 Mbit/s
• LAN: IEEE – 802.3; 10/100 Mbit/s

Power Supply

• Type: Switch-mode, universal input
• Main Voltage: 100-240 V; 50-60 Hz
• Frequency: 50-60 Hz
• Cooling: Passive, via surface and ventilation openings on both sides of the device
