Clear-Com 8 Ch. IP Communications Interface
Details
Clear-Com 8 Ch. IP Communications Interface

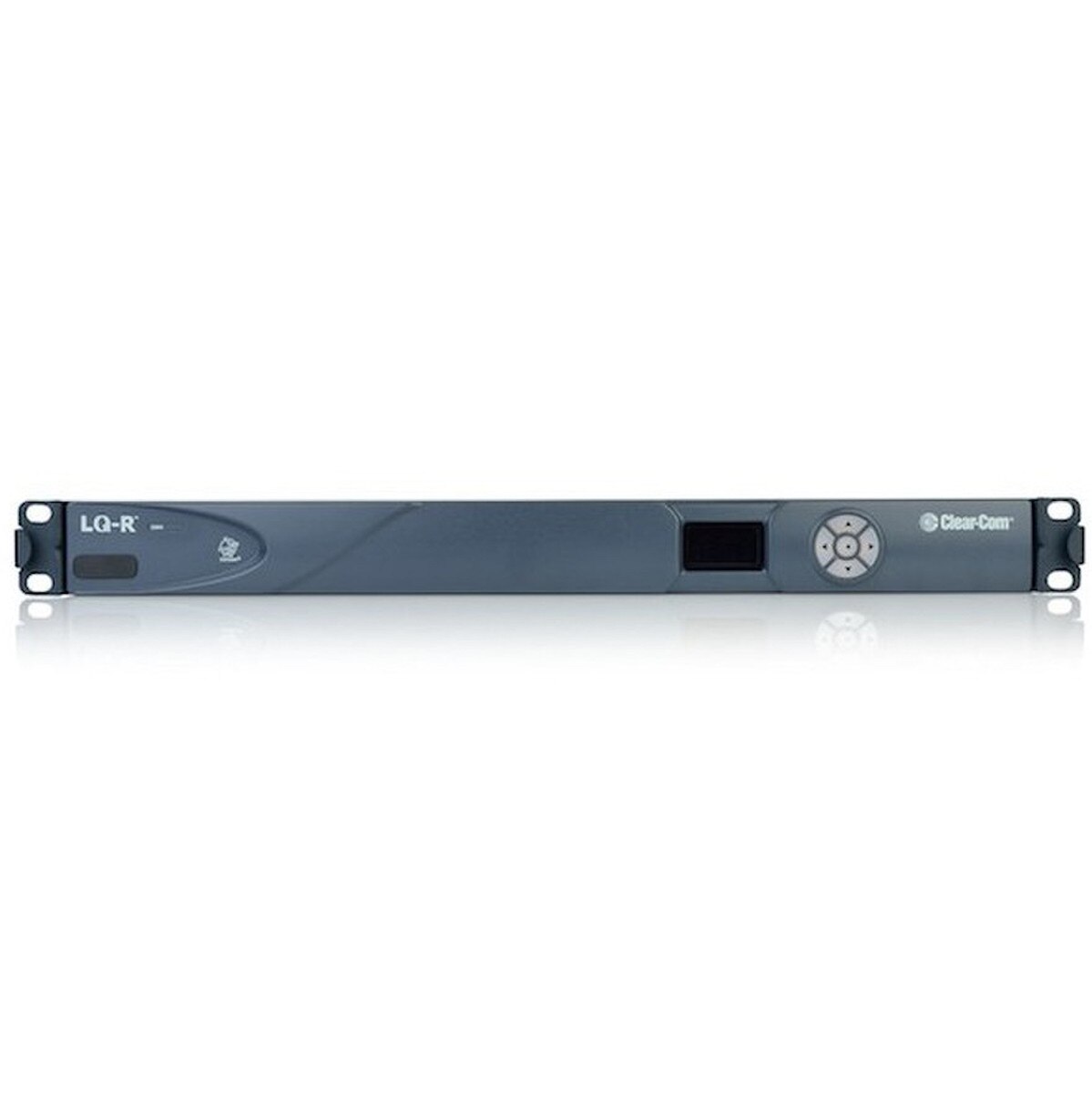

The LQ-R2W4-4W4 enables the connection of both partyline and 4-wire audio over LAN, WAN or Internet IP infrastructures in a 1RU panel. The partyline connections are compatible with Clear-Com and RTS; while the 4-wire connections can support ECS, EHX and Drake 4000 II panels.
Specifications:
Audio
- Resolution: 12 bit
- Sample Rate: 24KHz
- Frequency Response: 100 – 12KHz
- CODEC: OPUS
Partyline Audio
- Input Gain: -3dB to +3dB
- Output Gain: -3dB to +3dB
4-Wire Audio
- Input Gain: -12dB to +12dB
- Output Gain: -12dB to +12dB
Network Setting
- Bit Rates: 16, 32, 48, 64, 128Kbps
- Packet Size: 5, 10, 20, 40, 60ms
- Jitter Buffers: 0 - 1000ms
Connectors
- Network/LAN: EtherCON/RJ45 (female)
- Partyline Audio I/O: 3 Pin XLR (female)
- 4-wire Audio I/O: EtherCON/RJ45 (female)
Partyline Output Current
- Type: Clear-Com & RTS TW
- Local DC Powered: 250mA per pair of PL ports (500mA total)
Power Supply
- In-line supply with sleeve locking connector
- Input: 100-240V, 50-60Hz, 1.4A MAX
- Output: DC 12V, 5A, 60W MAX
Environmental
- Operating Temperature: +32°F - +104°F
- (0°C - +40°C)
- Storage Temperature: -67°F - +158°F
- (-55°C - +70°C)
- Humidity: 90%, non-condensing
Dimensions
- 19" W x 1.79" H x 8.8" D
- (483mm x 46mm x 224mm)
Weight
- 4.29lbs (1.95kg
