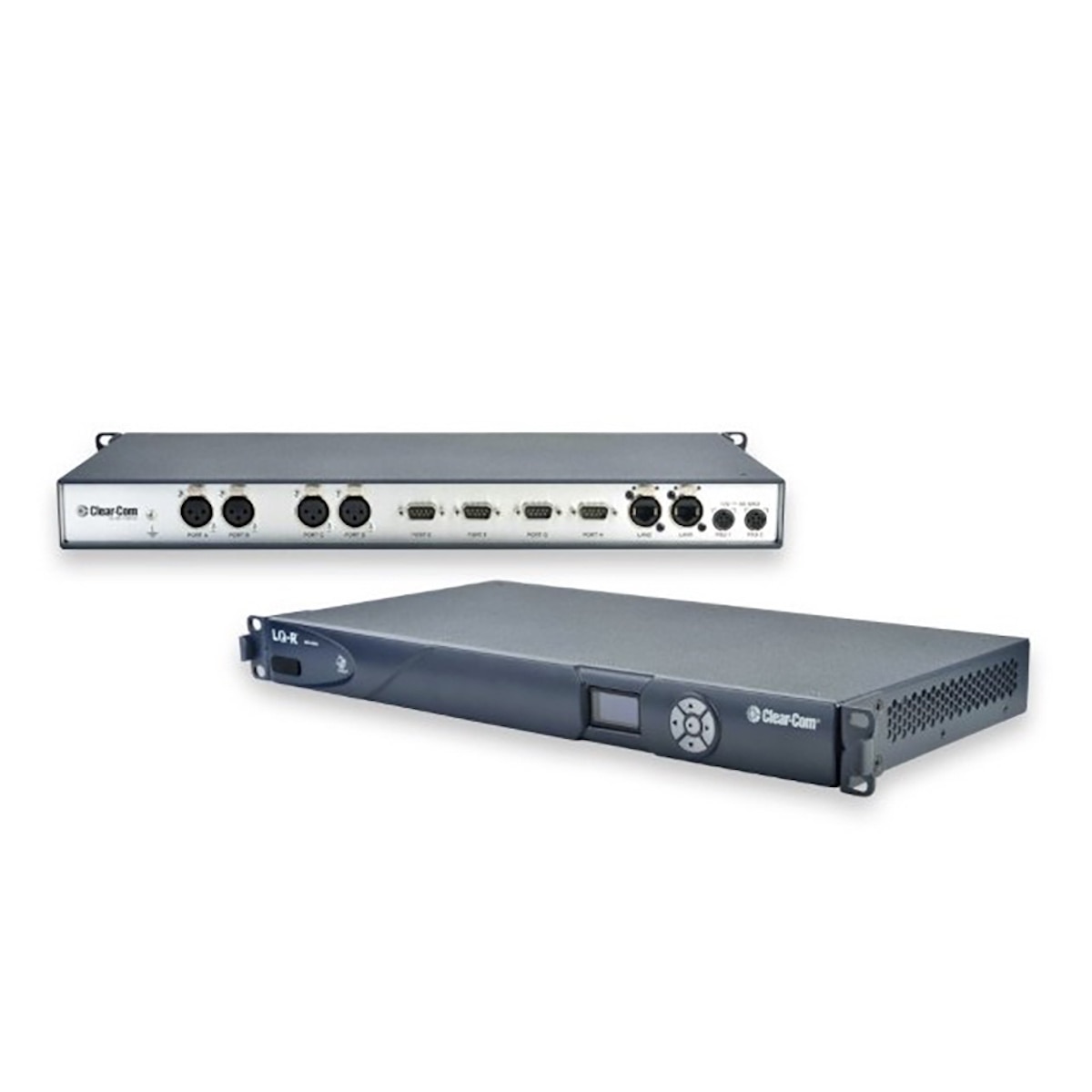

Clear-Com 8 Channel 4-Wire with GPIO and Partyline IP Interface

The LQ-R2W4-4WG4 enables the connection of both partyline and 4-wire with GPIO audio over LAN, WAN or Internet IP infrastructures in a 1RU panel. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The partyline connections are compatible with Clear-Com and RTS.

Specifications:

Audio:

• Resolution: 12, 24 bit
• Sample Rate: 24, 48 KHz
• Frequency Response: 100 - 12 KHz or 100 - 20 KHz
• CODEC: OPUS

Partyline Audio:

• Input Gain: -3dB to +3dB
• Output Gain: -3dB to +3dB
• 4-Wire with GPIO Audio
• Line Level: (0 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB
• Mic Level: (-50 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB

Network Setting:

• Bit Rates: 16, 32, 48, 64, 128Kbps
• Packet Size: 5, 10, 20, 40, 60ms
• Jitter Buffers: 0 - 1000ms

Connectors:

• Network/LAN: EtherCON/RJ45 (female)
• Partyline Audio I/O: 3 Pin XLR (female)
• 4-wire with GPIO Audio I/O: 9-way D-type (male)

Partyline Output Current:

• Type: Clear-Com & RTS TW
• Local DC Powered: 250mA per pair of party line ports (500mA total)

Power Supply:

• In-line supply with sleeve locking connector
• Input: 100-240V, 50-60Hz, 1.4A MAX
• Output: DC 12V, 5A, 60W MAX

Environmental:

• Operating Temperature: +32 degrees F - +104 degrees F (0 degrees C - +40 degrees C)
• Storage Temperature: -67 degrees F - +158 degrees F (-55 degrees C - +70 degrees C)
• Humidity: 90%, non-condensing

Dimensions:

• (W x H x D): 19 x 1.79 x 8.8” (173 x 46 x 215mm)

Weight:

• 4.29 lbs (1.95kg)
