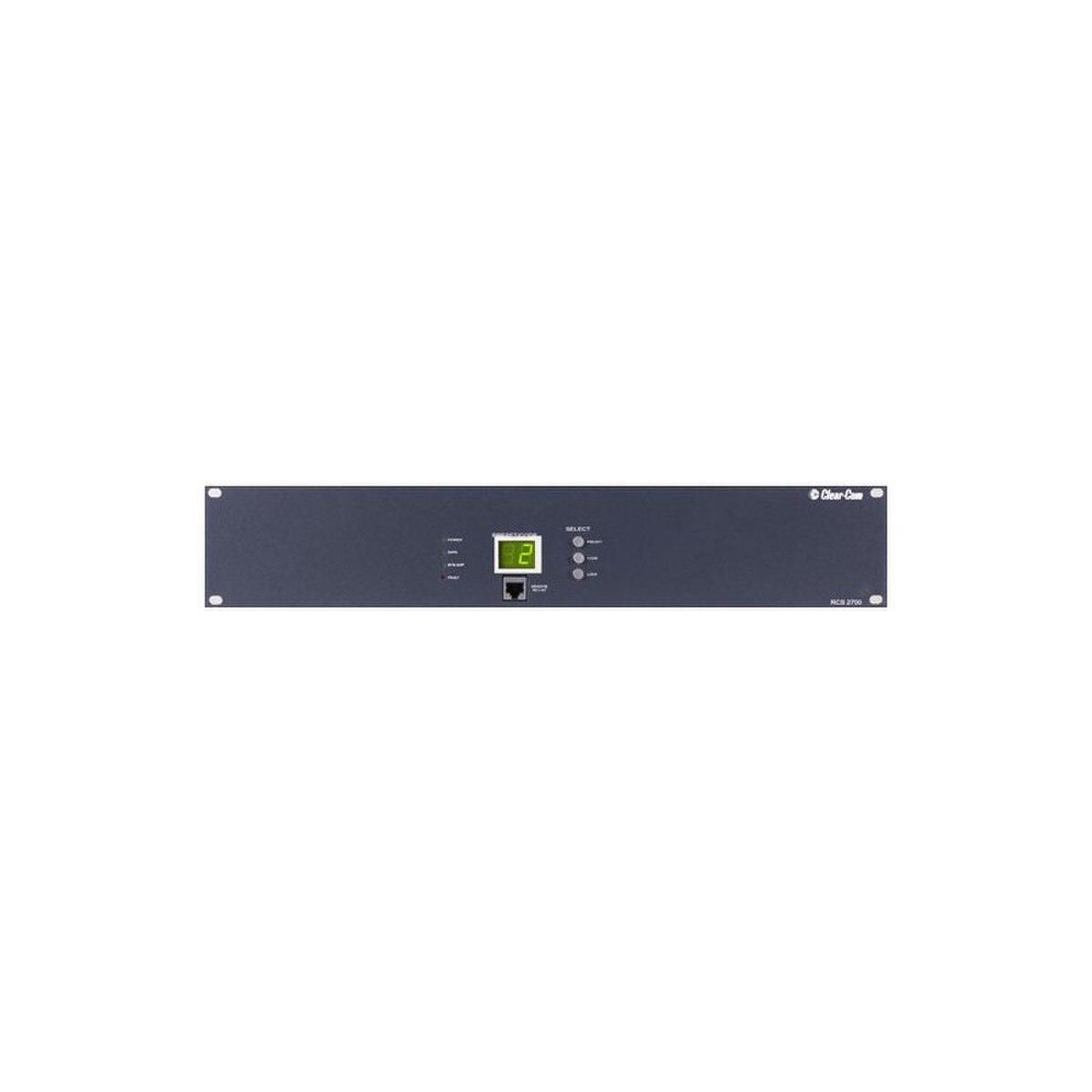

Clear-Com 8 X 24-Channel Programmable Station-Assignment Panel

*Download RCS-WIN, RCS-2700 programming software from Clear-Com's website

The RCS-2700 + RCU-67 is ideal for medium to large installations where channel assignments to remote stations frequently change. 8 master channel "sources" can be assigned to any 24 remote station "destinations", and additional RCS-2700 units can be connected for up to 15 sources and 72 destinations. It can store 14 presets.

Features:

• 8x24 programmable assignment panel
• Remote control of frame from up to 300 feet (90 m) away
• Expandable up to 15 "sources" and 72 "destinations"
• Stores fourteen presets in non-volatile memory
• Easy-to-use Graphical User Interface (virtual station)
• Multiple systems can be controlled from the same PC
• Six-character labels in GUI
• Latching relays keep current draw extremely low
• Optional RCU-67 handheld remote with built-in diagnostics
• "TW" compatible
• Front-panel security lockout for RCS-2700
• Easy-to-wire Euro-terminal blocks used for rear-panel connections
• External contact closure input for remote preset selection

Specifications:

• Party-line intercom: 20 - 20KHz (passive switching)
• Baud rate: 19.2 Kbps
• Start Bits: 1 start bit
• Stop Bits: 1 stop bit
• Parity: no parity
• Crosstalk: <-70 dB
• Frequency Response: Port-Port: 20Hz - 20KHz
• Switching Current: <=2A
• Input Voltage: 27-33 VDC
• Input Current (max): <= 80mA
• Rear Panel Connectors:
  • (1) RJ-45
  • (1) DB-9 for RS-2700
• Euro-block pins for:
  • Sources
  • Source expansions
  • Source power
  • Destinations
  • Destination power
  • RCS power
  • Source 8 continuation
  • Data links
  • Matrix/contact closure
• Rear Panel Controls:
  • Reset button
  • Unit address switch
  • Termination switches (8)
• Front Panel Connector: RJ-45
• Front Panel Controls:
  • Preset
  • Code
  • Lock/Unlock
• Front Panel Indicators: Double-digit, 8-segment LED readout LEDs for Power, Data, System Expansion, Fault, Lock
• Sizes: Single frame, 1x2, 2x1, 2x2, 1x3, 2x3
• Maximum RCS-2700 Units: 6 RCS-2700 units for a 15-source by 72-destination system
• Non-volatile memory system maintains all settings and switching matrix connections when powered off
• Environmental: 32° to 122° F (0° to 50° C)
• Dimensions: 19" W x 3.5" H x 10.75" D (48.3 cm x 8.9 cm x 27.31 cm)
• Weight: 5.5 lb. (2.5 kg)
