Clear Com System Interface

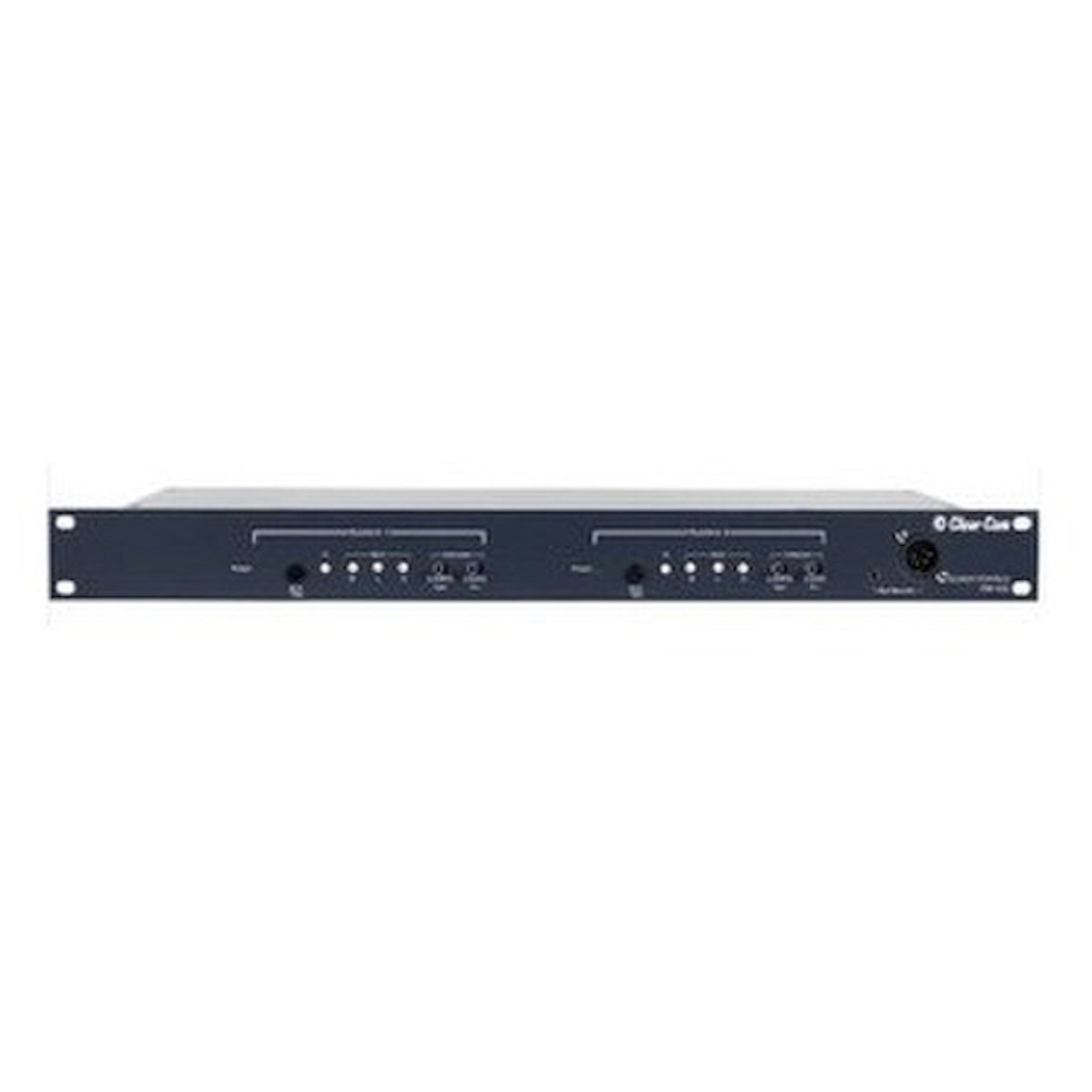

Clear-Com/RTS System Interface Rack Mount (1RU), connects Clear-Com to Clear-Com or Clear-Com to RTS systems.

The TW-12C connects a single channel of intercom from one system to another. Opt isolation eliminates hums and buzzes. Compensates for level and impedance differences between systems and allows Clear-Com-to-Clear-Com, Clear-Com-to-RTS, and RTS-to-RTS system configurations. Powered by the connected intercom system. Translates "call" signals in both directions.

Technical Specifications:

Clear-Com Format:

Line Characteristics:

• Max Level Before Clipping : >=3dBu
• Impedance: >=10KΩ

Signaling:

• Receive: <=4 VDC
• Send: >=11VDC

RTS Format:

Line Characteristics:

• Max Level Before Clipping : >=5dBu
• Impedance: >=10KΩ

Signaling Tone:

• Send frequency: 20kHz ±100Hz
• Receive frequency: 20kHz ±500Hz
• Send level: >=-6dBu
• Receive level: <=-25dBu

General Characteristics:

• Frequency Response: Party-line - Party-line: 200-8KHz
• Distortion: Party-line - Party-line: <=0.2%

Max Gain:

• Clear-Com - RTS: >=9dB
• Clear-Com - Clear-Com: >=4dB
• RTS - Clear-Com: >=-1dB
• RTS - RTS: >=4dB

Min Gain:

• Clear-Com - RTS: <=1dB
• Clear-Com - Clear-Com: <=-4dB
• RTS - Clear-Com: <=-9dB

Power Requirements:

• Input Voltage Range: 20-30VDC
• Input Current (average): <=50mA

Rear Panel Connectors:

• Rear panel: (2) XLR3M (1 per channel)
• (2) XLR3F (1 per channel)

Front Panel Connectors:

• Headset: (1) XLR4M
• TS1 Earphone: (1) 3.5mm Jack Socket

Front Panel Controls and Indicators:

• Power: (2) Green LED (1 per channel)
• Null Test Button : (2) Buttons (1 per channel)
• Gain Level Adjust: (2) Controls (1 per channel)
• Null Adjust: (6) Controls (3 per channel)
• Connection Type Switch: (2) Switches (1 per channel)
• Pin Connection Select Switch: (2) Switches (1 per channel)

Dimensions:

• 1.75in. H x 19in. W x 7.25in. D (45 x 483 x 185 mm)

Weight:

• 5.63 lbs. (2.56 Kg)
