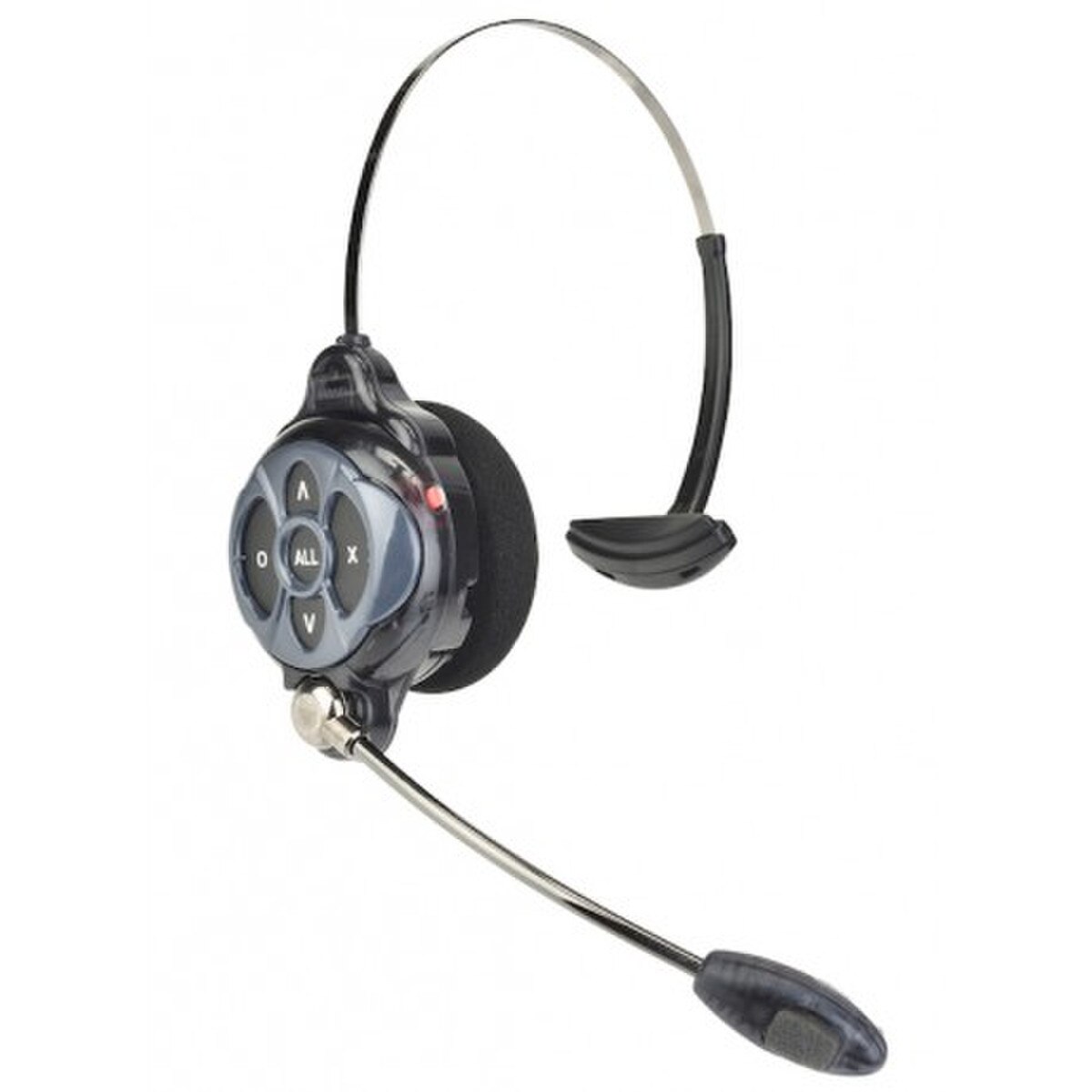

Clear-Com WH340 Wireless Headset
Details
Two-Channel Wideband 7kHz all-in-one wireless headset with 2 BAT50 batteries. Uses AC50 battery charger. MB340ES base station only, does not work on other DX base stations. The DX340ES is a slightly modified version of the DX300ES that includes better RF filtering, lost packet concealment and enhanced 7kHz wideband audio.
Features:
- 2-Channel All-in-One Wireless Headset
- 2.4GHz frequency range
- Up to 4 full-duplex or 12 half-duplex all-in-one headsets per base station
- Hands-free communication
- Single-ear, light-weight design
- 7 kHz wideband audio
- Rugged and reliable
- Up to 12 hours of battery life
- Uses BAT50 Battery and AC50 Battery Charger
Specifications:
- System
- Frequency Range: All (2400 – 2483.5 MHz), Low (2401.92 to 2439.936 MHz) or High Band (2443.392 to 2481.408 MHz)
- Frequency Response: 200 Hz to 7 kHz
- Security: 64-Bit Encryption
- Temperature Range: -4 to131°F (-20 to 55°C)typical
- Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
- Transmit Power: 100mw Burst
- Modulation Type: Gaussian Filtered FSK, TDMA
- Frequency Stability: 13 ppm
- Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
- RF Sensitivity: <-90dBm w 10-3 BER
- System Distortion: <2%
- Dynamic Range: -90dBm to –20dBm
- FCC Acceptance: Part 15
- All-in-One Headset
- Antenna Type: Internal, Dual Diversity
- Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)
- Mic Input: Electret
- Headset Output: 160mw into 32W
- Controls (Default): Power-On/Off, Volume-Up/Down, IC-Talk, ISO-Relay
- Indicators: Power/Transmit/Low Battery LED & Voice Prompts
- Battery Life
- Latched: Up to 14 Hours
- PTT: Up to 20 Hours
- Weight
- 5.7 oz (0.16 kg) with Battery
