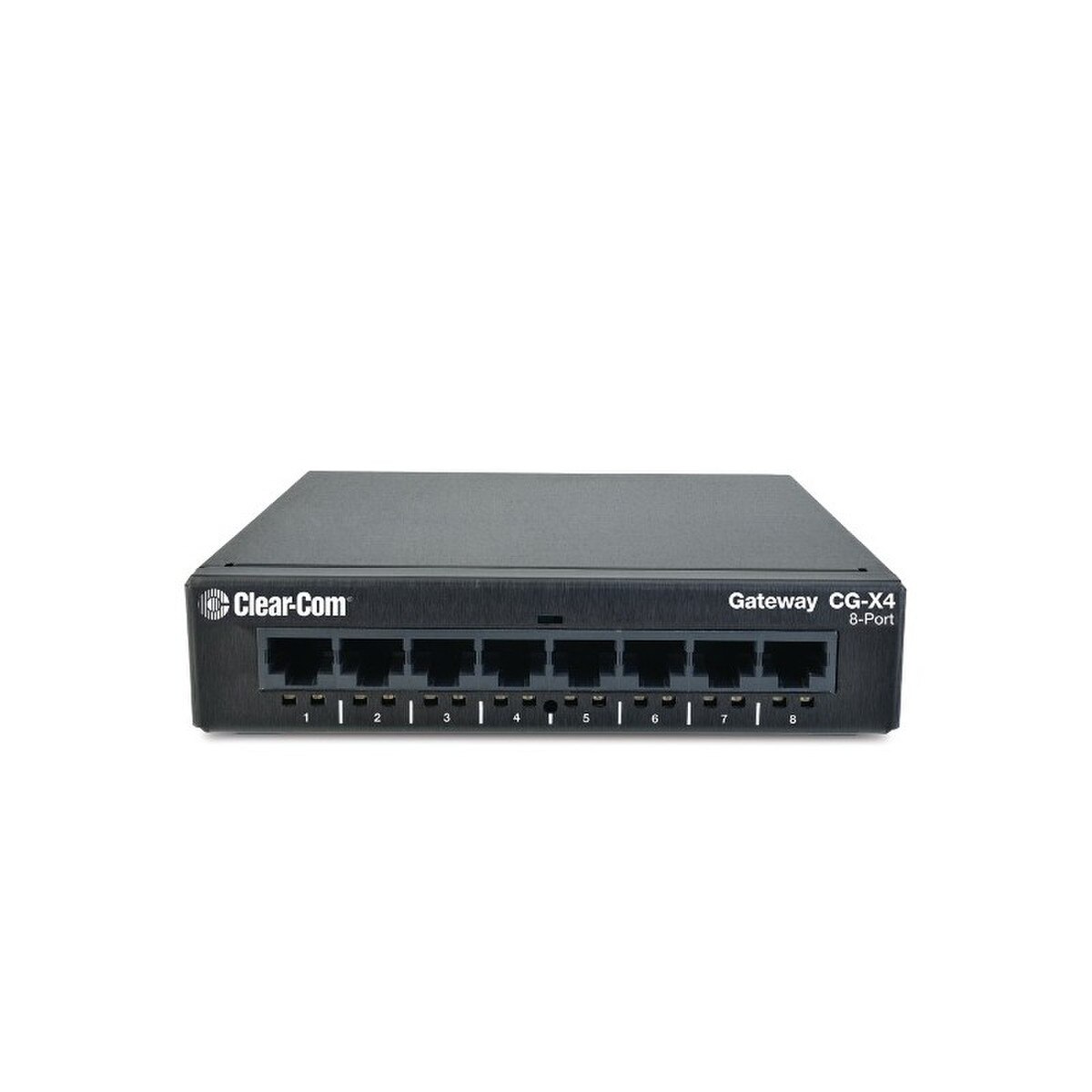

Clear-Com X4 Gateway - 1 Port IP and 7 Ports 4-Wire

The CG-X4 is an 8-port Clear-Com Gateway device that enables radio bridging, radio interfacing, IP interfacing in a simple modular design. Using a modular design, the CG-X4 can support 4 modules (8-ports) in a small form factor where each module can be configured for 4-wire connectivity (intercom, radio and audio sources), VoIP connectivity (SIP and RoIP), or digital radio connectivity (Digital Voice Systems' AMBE 3003 VoCoder technology).

Features:

• Radio Bridging
• Port-to-port
• Port-to-multi-port
• Radio-over-IP (RoIP)
• Analog-to-digital
• Digital-to-digital
• Radio Interfacing
• Trigger radios with 4-wire port signaling
• DMR and P25 compatibility
• IP Interfacing
• Voice-over-IP (VoIP)
• RoIP
• Unicast
• Multicast
• SIP (8 assignable SIP accounts per IP module)

Specifications:

• 4-Wire Audio Ports:
• Input/Output Levels: -16 to 7 dBm @ 600 Ohms, adjustable in 0.1dB steps
• Frequency Response: 5 to 3400 Hz; +/-1 dB ref. to 1 KHz
• Isolation: >60 dB
• Idle Noise: <20 dbrnC0
• Input Impedance: 600 Ohms or 100 Ohms, software selectable each port
• Output Impedance: 600 Ohms, true differential
• Hybrid Return Loss: 25 dB minimum
• Power Supply:
  • Switchable plug-in adapter with locking connector and IEC cord
  • Input Voltage: 85 – 264VAC; 100 – 240VAC; nominal
  • Output Voltage: 12V; 1.67A
  • MTBF (min.): 200,000 hrs demonstrated
• Dimensions (W x H x D): 5.7 x 1.4 x 13” (144.8 x 35.6 x 330.2mm)
• Weight: 4.75 lbs (2.15kg)
