Rosco DMG DASH – Pocket LED Kit CRMX
Details
We are thrilled to announce the introduction of the DMG DASH™ Pocket LED Kit CRMX. This fully accessorized, broad color spectrum LED fixture brings our award-winning MIX® Technology into an affordable, versatile, handheld form factor for filmmakers and photographers. DMG DASH was developed in response to feedback from MIX users who wanted a small, portable version of the technology they’ve come to depend upon.
Rosco's DMG DASH is the smallest member of Rosco’s MIX® Family of LED lights. Its compact design provides filmmakers with high quality light output and precise color control from a durable, handheld light fixture. This versatile LED light features powerful output from its durable and weatherproof 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm) aluminum alloy housing. The DMG DASH has the same six-chip MIX LED technology that’s inside all of Rosco’s MIX LED lights to provide a broad color spectrum and superior color mixing. DMG DASH can also create white light with high CRI and TLCI values (1700K – 10,000K), and over 130 True Rosco Color™ gel matches.
Each DMG DASH Pocket LED Kit ships with a complete set of mounting and magnetized beam-shaping accessories - all inside a durable carrying case.
*Also available in a four-unit DMG DASH Quad CRMX Kit.
Case Study: A "1 Minute" Introduction to DMG DASH by Tatiana Massano
Features:
Superior Color-Mixing:
- DMG DASH features Rosco’s patented, six-chip MIX® Technology – enabling it to produce the same color-quality and True Rosco Color™ gel matches that other MIX lights do!
Fully Accessorized:

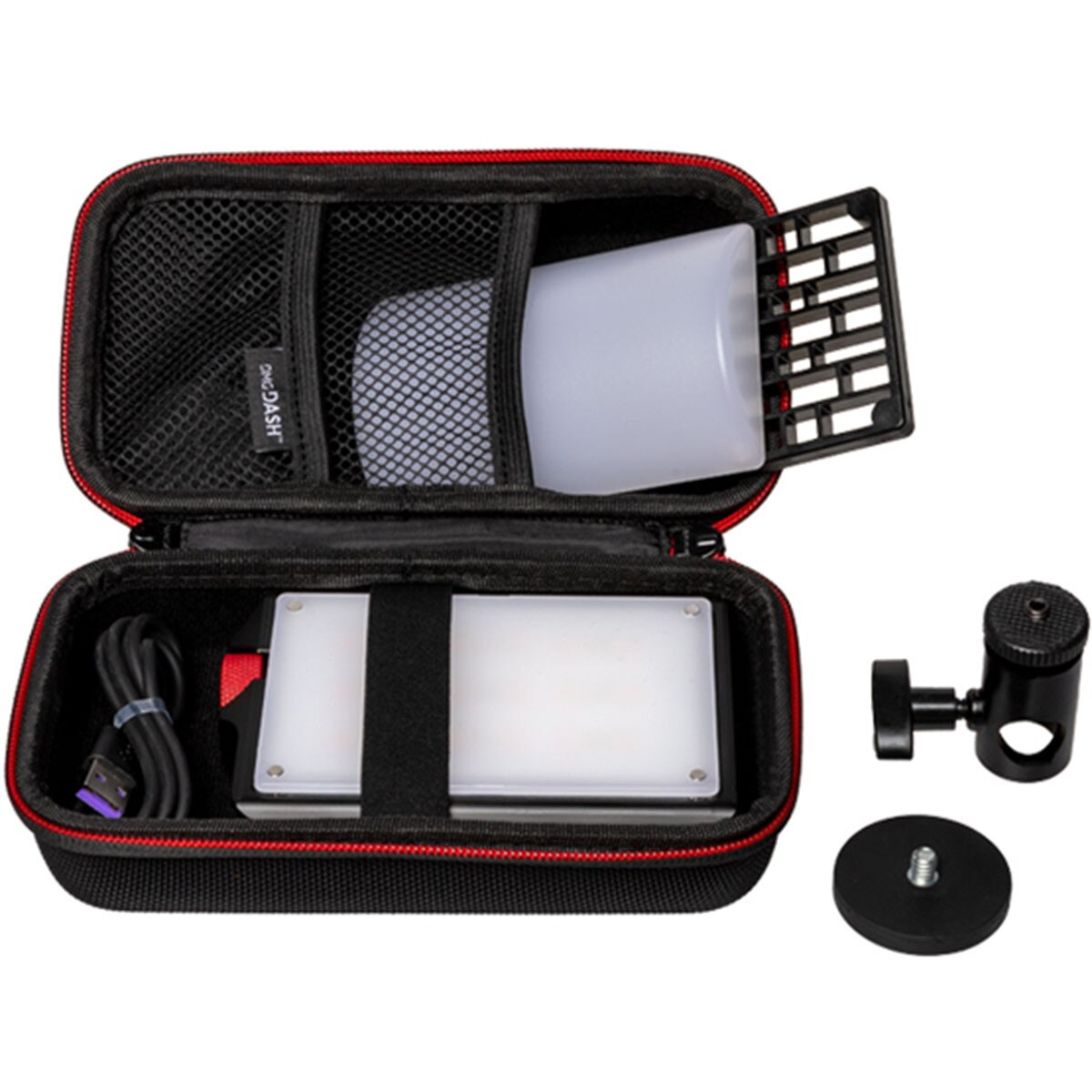

- Each DMG DASH Pocket LED Kit ships with a set of magnetic beam-shaping accessories, including a flat diffuser panel, dome diffuser, eggcrate, and a gel holder for adding any Rosco gel or diffusion material desired. The kit also includes a light stand mount, a powerful magnetic mount, and a USB-C charging cable.
Multiple Control Options:
- DMG DASH is controlled by its onboard user interface, or via the free myMIX® app. A wireless DMX model featuring LumenRadio for control via W-DMX & CRMX is also available.

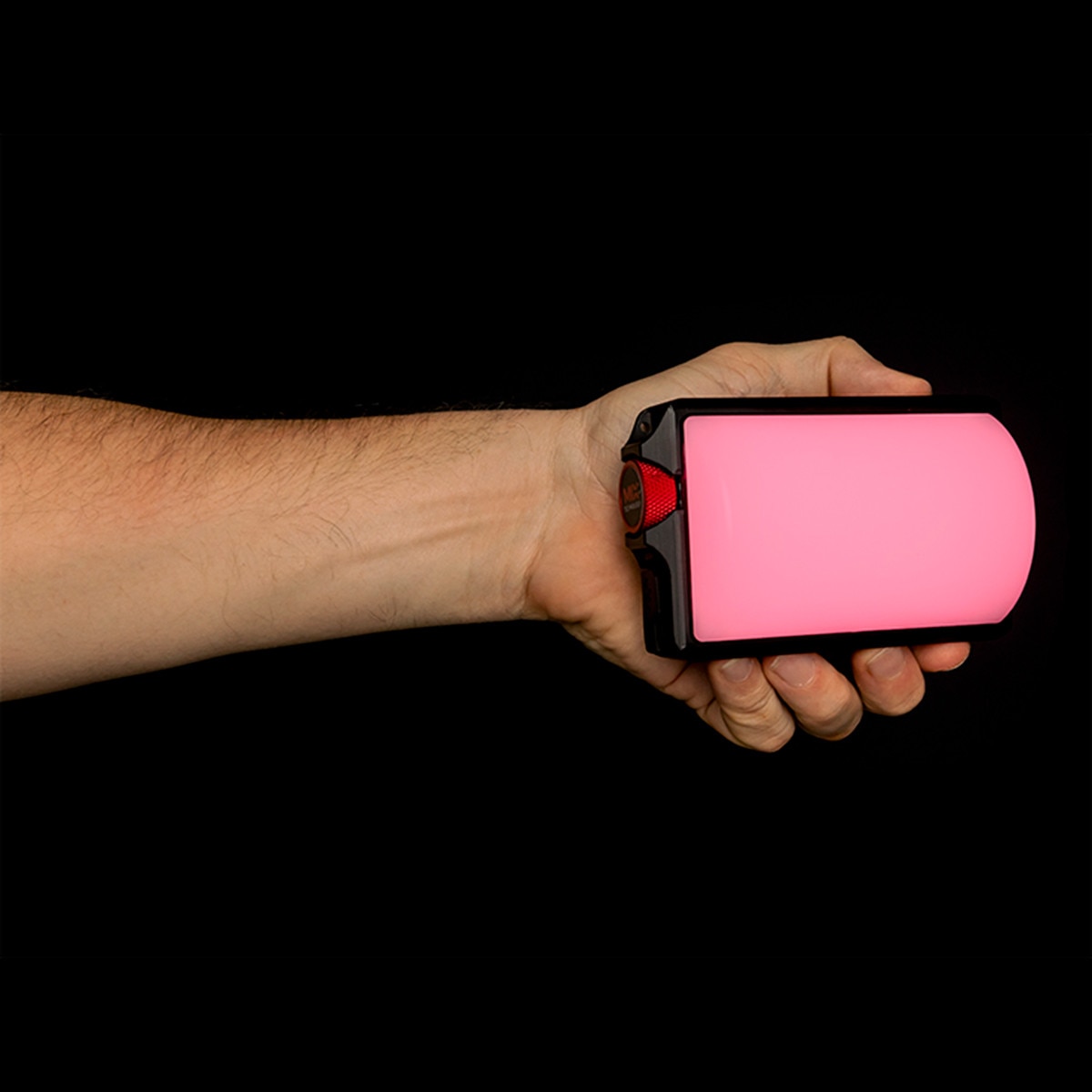

Pocket-Sized But Powerful:
- Don’t let its small size fool you, the battery-operated DMG DASH can produce up to 500 lumens of output – all from a fixture that fits in the palm of your hand.
Link Together - Or Deploy Independently:
- The DMG DASH Quad Kit includes a DMG DASH LINK4 accessory that connects the four lights together. This enables the user to deploy the four DMG DASH units independently or link them together and control them as a group via the myMIX app to create a single, larger light source.
Weatherproof & Durable:
- It takes a thrashin’ and keeps on DASHIN’. DMG DASH is constructed from a lightweight aluminum alloy to provide a shock-resistant and IP65 weatherproof housing.
Note: In order to control DMG DASH Pocket LED Kit, you must use the myMIX app, which is available for iOS® and Android™ devices.
Download the myMIX App:
Specifications:
- Lux @ 1m (3.3 ft.): 250 Lux @ 6500K
- Lux @ 1m (3.3 ft.) – Boost Mode: 320 Lux @ 6500K
- Maximum Power: 14W
- Battery Runtime: Three Hours at 100% Intensity (Less In Boost Mode)
- LED Colors: Red, Green, Blue, Lime, Amber, White (4000K)
- Light Modes: WHITE / GEL (with True Rosco Color Gel Matches) / COLOR – HSI & XY (With Rec 709 & Rec 2020 overlays) / EFFECTS / SOURCE MATCH
- Color Temperature: 1700K – 10,000K
- Color Rendering: CRI Average: >95 TLCI Average: >90
- Flicker-Free: Up To 1,000 FPS

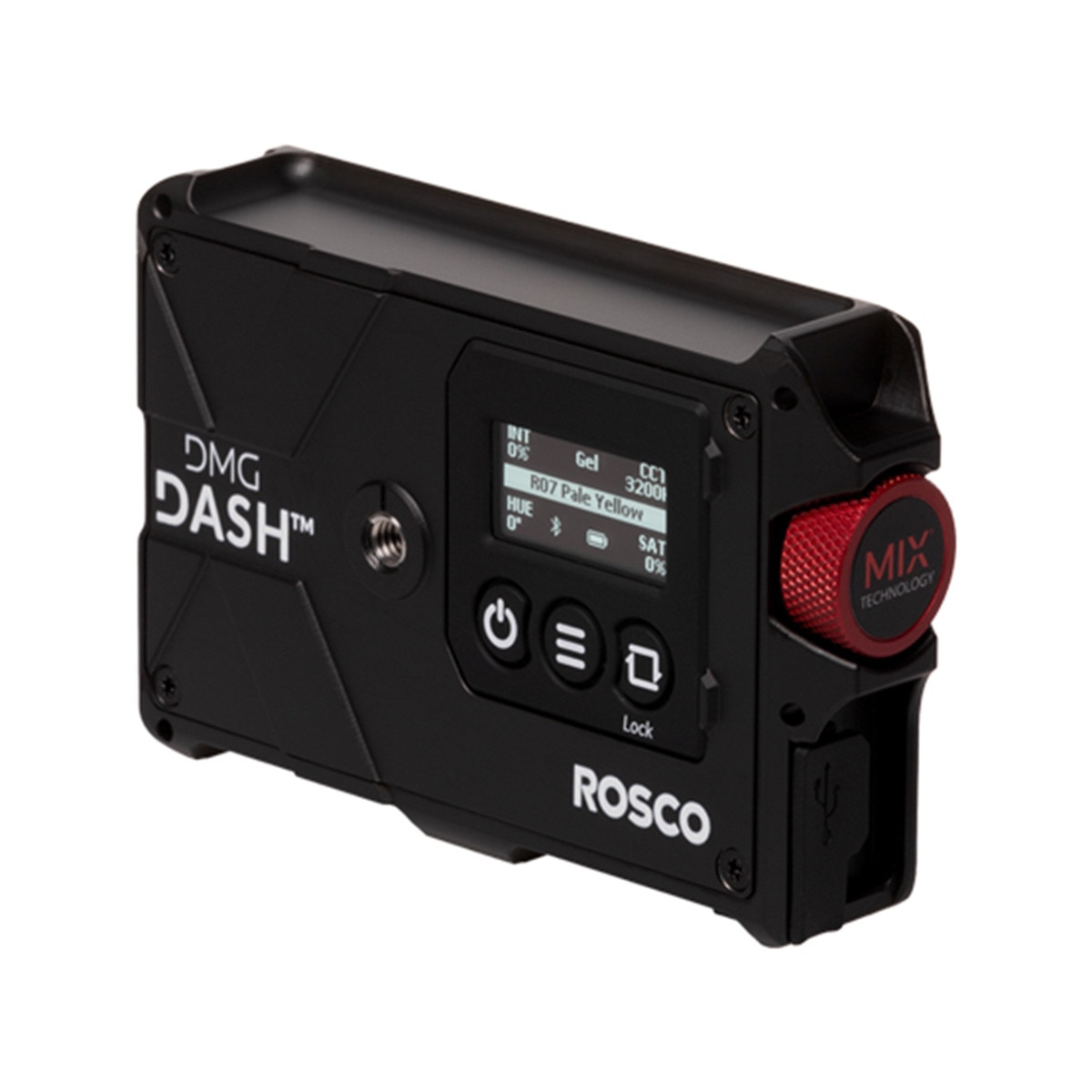

- On-Board Control: Local UI: 1.3″ OLED Graphical Display – 128px x 64px
- Wireless Control: Bluetooth BLE via the myMIX® Mobile App - Available for iOS/Android. Wireless DMX (CRMX model only): LumenRadio with CRMX and W-DMX control, plus RDM
- Size: 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm)
- Weight: 12.8 oz (367g)
- Body Material: Aluminum Alloy
- Outdoor Rating: Weather-Resistant – IP65
- Charging Connector: USB Type-C
