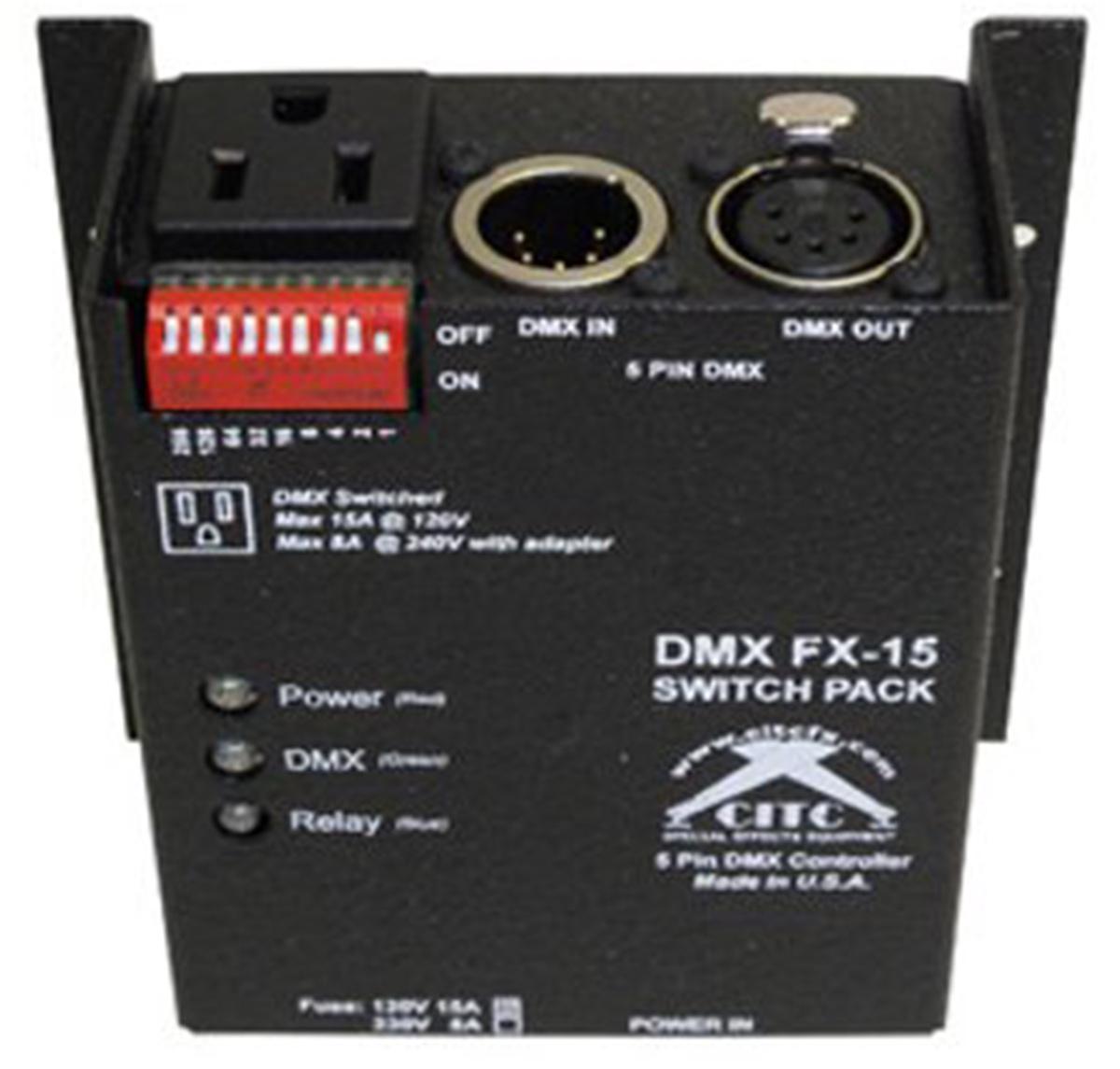

CITC DMX FX-15 Switchpack - 120vac

The DMX FX-15TM Switch Pack is CITC's newest innovation, allowing you to add DMX ON/OFF control to a multitude of equipment. Its compact and rugged design offers an amazing 15 amps of control on 120v and 8 amps on 230v.

Specifications:

• 120 vac P/N 250051, 230vac P/N 250052
• Unit Dims: 4.5” X 4.5 ” X 2” (10.8cm X 11.3cm X 5.1cm)
• Unit Weight: 2 lbs. (.907 kg)
• Color: Black
• Operating temp: 32 ̊F (0 ̊C - 50 ̊ C)
• DMX Connectors: 5 pin XLR
• Assignable DMX Address 1-511
• DMX Channels Used: 1
• Electrical Supply:
  • 120VAC/15A, 50/60Hz
  • 230VAC, 8A, 50/60Hz
• Fuse:
  • 15A - 125 VAC, 5mm X 20mm
  • 8A - 250 VAC, 5mm X 20mm
• Accessory (included): Power Cord (Universal Plug Adapt- er 230V Only
• One Year Limited Warranty
