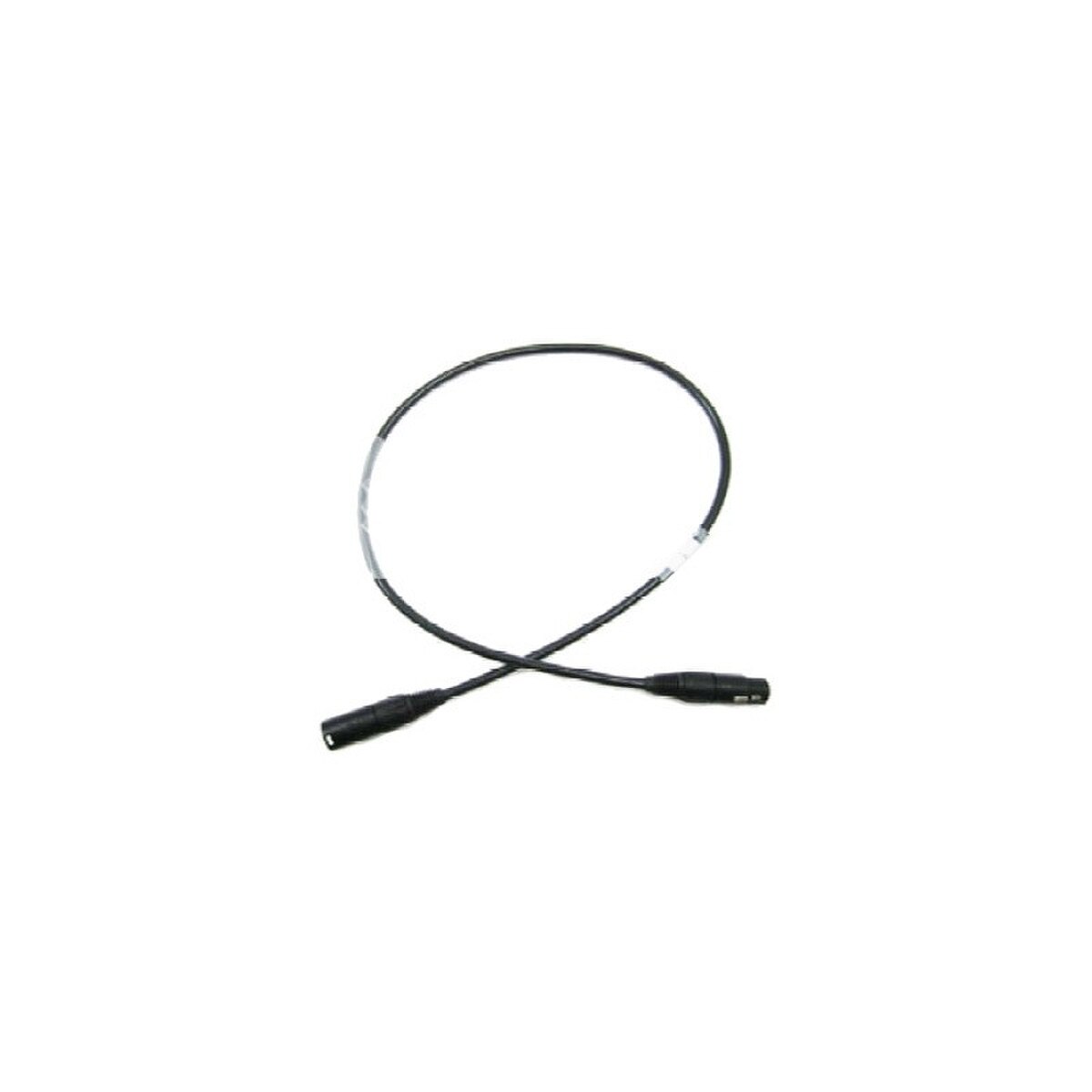

DataSure 15' 5-pin Neutrik XX Black/Gold DMX Cable

(0)No Reviews yet
$53.70
SKU: XD45NXXB0015L

If you add this item, you're only $195 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

Features:

  • 22 AWG (19 x 34) tinned soft annealed copper
  • Nominal capacitance conductor/conductor 20pF/ft.
  • Color Coded Black/White ‐Red/Green
  • Solid FR Polyethylene
  • Aluminum Mylar shield providing 100% coverage
  • Tinned copper braid providing miminum 85% coverage
  • Nominal Capacitance conductor/shield 40pF/ft.
  • Nominal impedance 90 ohms
  • 2 Blue FR fibrilated Polypropylene fillers
  • Single Kevlar strength member
  • FR PVC Nominal Thickness: 0.030"
  • Overall cable diameter 0.255" (6.48mm)
  • Tensile strength 6000psi
  • Operating Temperature: ‐30º C to 75º C
  • Conductivity per 1000ft: 16ohms (max) at 20º C

Specifications:

  • Male Connector: NEUNC5MXB
  • Female Connector: NEUNC5FXB
  • Cable: RCDATASURE4
  • Weight: 3.4 lbs per 100'

*Custom lengths available. Please contact us for a quote.
