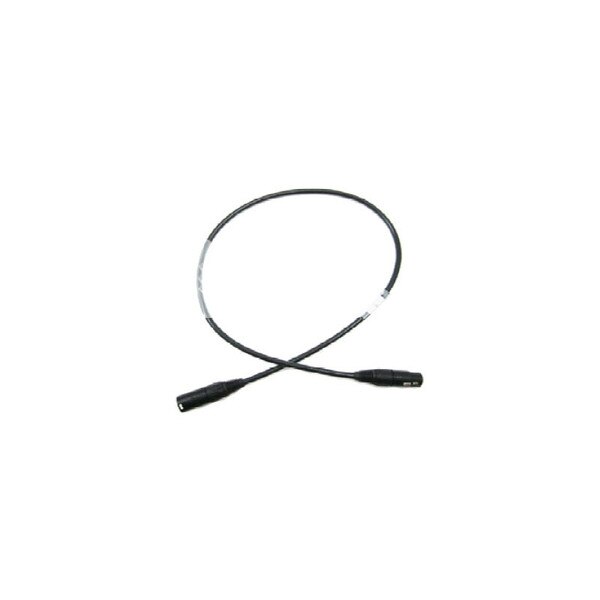

DataSure 50' 5-pin DMX Cable

Features:

• 22 AWG (19 x 34) tinned soft annealed copper
• Nominal capacitance conductor/conductor 20pF/ft.
• Color Coded Black/White ‐Red/Green
• Solid FR Polyethylene
• Aluminum Mylar shield providing 100% coverage
• Tinned copper braid providing miminum 85% coverage
• Nominal Capacitance conductor/shield 40pF/ft.
• Nominal impedance 90 ohms
• 2 Blue FR fibrilated Polypropylene fillers
• Single Kevlar strength member
• FR PVC Nominal Thickness: 0.030"
• Overall cable diameter 0.255" (6.48mm)
• Tensile strength 6000psi
• Operating Temperature: ‐30º C to 75º C
• Conductivity per 1000': 16ohms (max) at 20º C

Specifications:

• Male Connector: NEUNC5MX
• Female Connector: NEUNC5FX
• Cable: RCDATASURE4
• Weight: 3.4 lbs per 100'

*Custom lengths available. Please contact us for a quote.
