Doug Fleenor 12 Channel 100W Rack Mount Dimmer in Junction Box - Reverse Phase

The DMX12DIM ELV-JBOX is a twelve output dimmer designed for high efficacy loads, and minimal losses. This dimmer uses “reverse phase” (aka: “trailing edge”) dimming techniques and MOSFET power devices. This type of control is required
for proper dimming of many LED fixtures. Each output can drive loads up to 100 Watts. Each channel may be configured for reverse phase dimming (default), forward phase dimming, or non-dim operation.

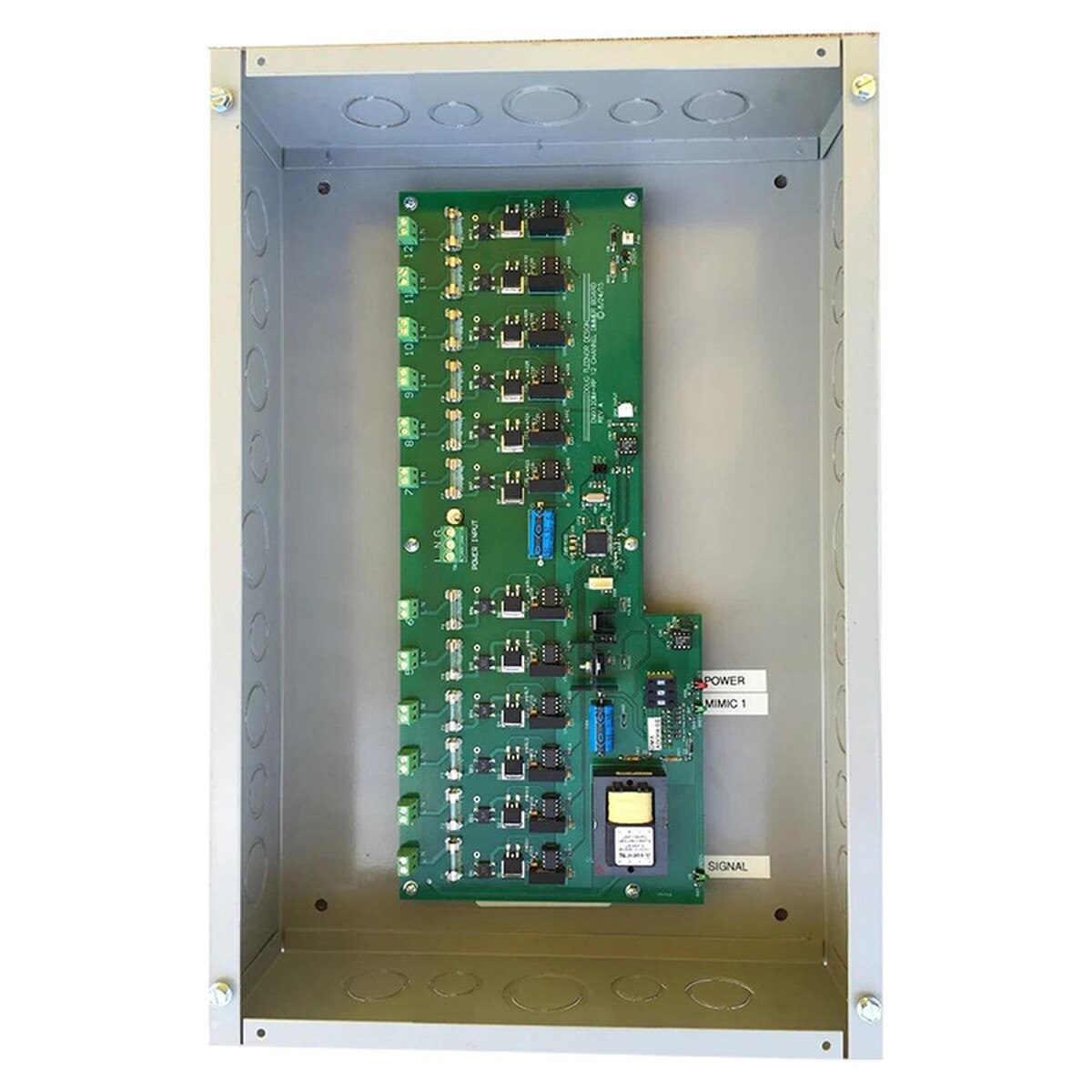

The dimmer is a wall mounted unit. All connections are made by terminal blocks for easy contractor installation. The NEMA1 electrical enclosure is provided with standard conduit knockouts on four surfaces.

Specifications:

• Input circuit: Protected EIA-485 receiver (LT1785)
• Input protection: Undamaged by up to 60 Volts continuous, 15KV transients
• Input signal: 0.2 volts minimum, DMX512, DMX512/1990, or DMX512-A
• Input & thru connectors: Pluggable Phoenix terminal blocks
• Termination: No internal termination provided. A 120 Ohm termination resistor is provided on the Thru
• connector if the dimmer is the last device on the line
• Power input: 120 VAC 60 Hz 10 Amps at full load, actual current draw is 0.07A plus connected load
• Power input connector: 3 position terminal block (Line, Neutral, Ground) suitable for up to #12 AWG wire
• Idle power: 7 Watts
• Power output: 120 VAC 60 Hz 0.83 Amps (100W) maximum per output
• Minimum load: No minimum load requirement
• Output protection: 1.5A internal fuse on each output channel
• Output connectors: 2 position terminal block (Line, Neutral) on each output suitable for up to #12 AWG wire
• Color: Gray
• Safety listing: ETL Listed to UL 508
• Size and weight: 18"H × 4”D × 12"W, 10 pounds
