Doug Fleenor Analog to DMX Converter - 12 Channel - 0-10V Inputs

Doug Fleenor Analog to DMX Converter - 12 Channel - 0-10V Inputs.

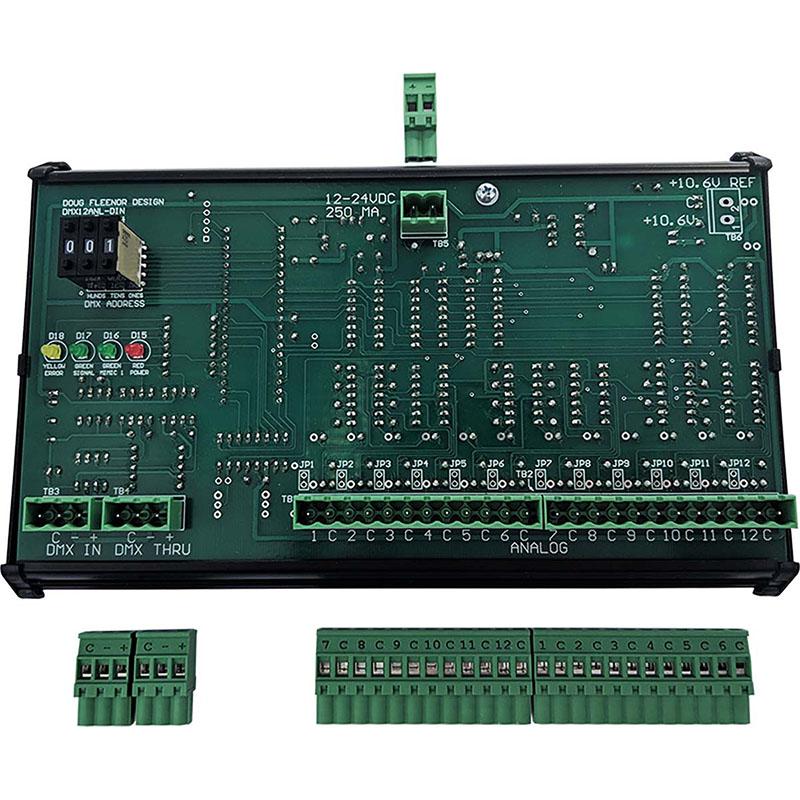

The DMX12ANL is a 12 channel DMX512 to analog 0-10V interface. It is available with either 5 pin XLR connectors or pluggable terminal blocks for the DMX512 in and thru connections. The analog outputs for both versions appear on pluggable terminal blocks.

Each analog output is capable of sourcing or sinking up to 15mA. No user adjustments or modifications are needed to select sourcing or sinking modes. Each output channel has a dedicated common terminal to ease field wiring. The DMX512 input is optically isolated from the analog outputs. The analog outputs are not isolated from each other. 0-12 volt output is available on special order.

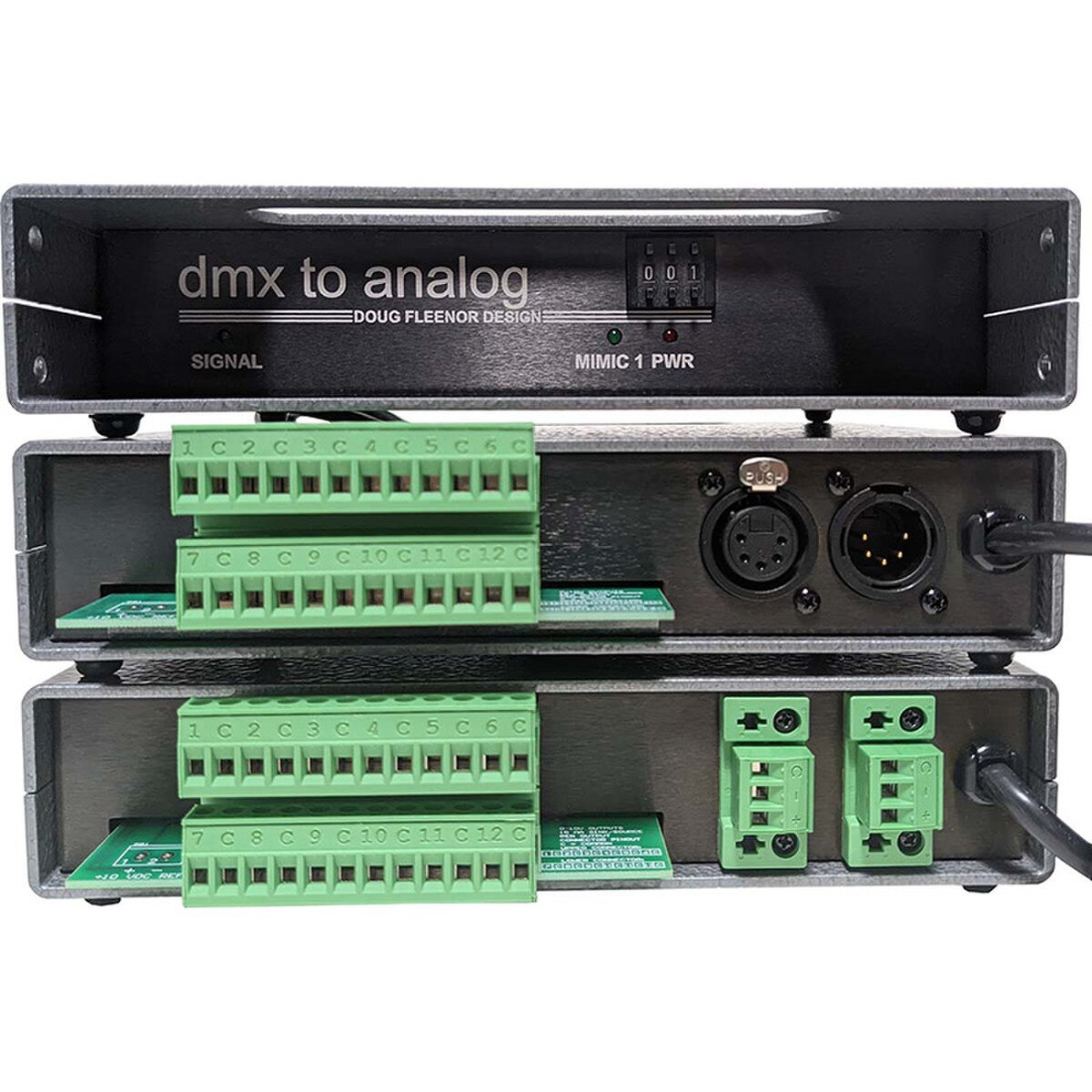

Available connector types: 5 pin XLR, 3 pin XLR, or terminal block.
