Doug Fleenor DMX 24 Channel 100W Rackmount Dimmer - 2U

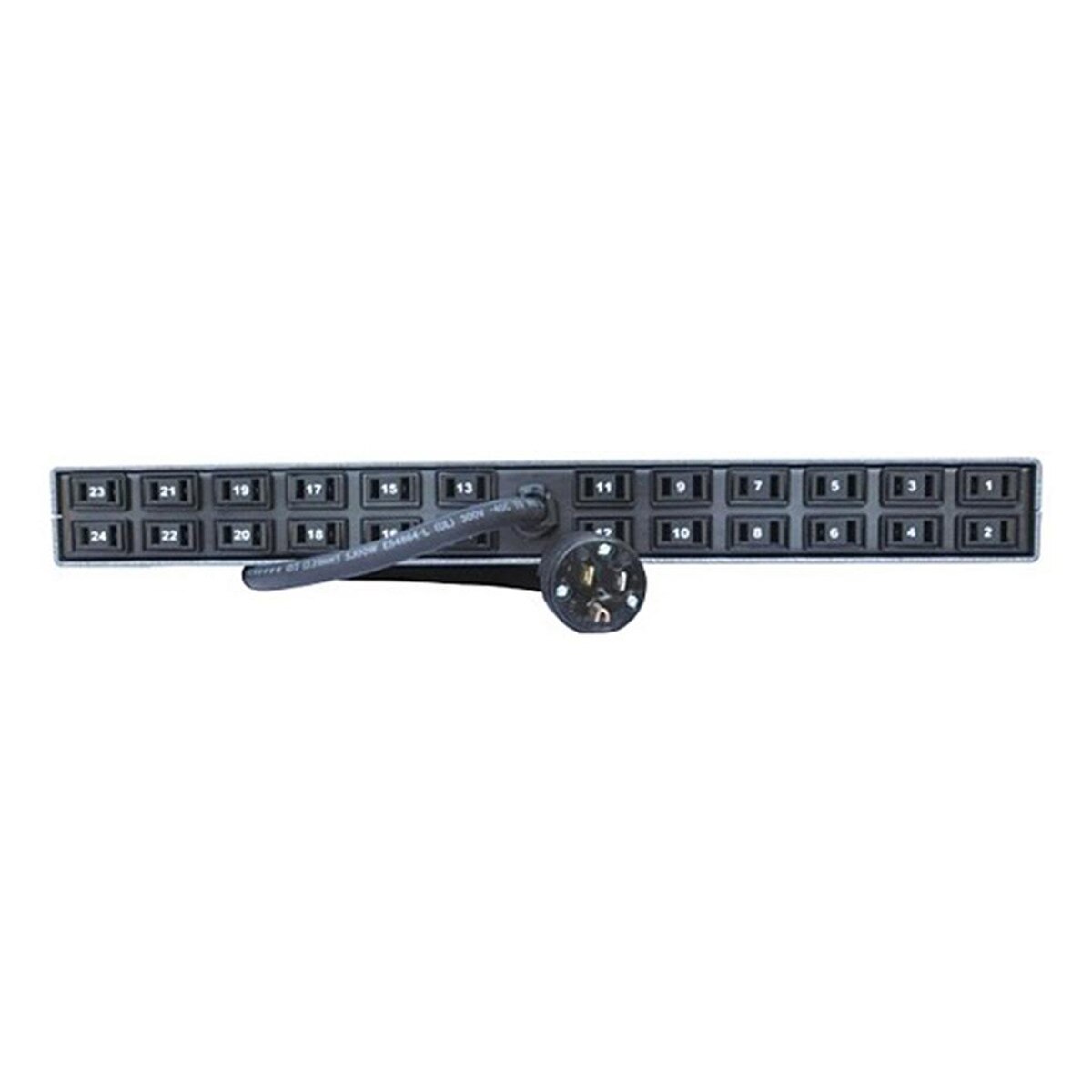

The DMX24DIM is a twenty-four output dimmer designed for high efficacy loads, low idle power, and minimal losses. Typical loads include Christmas light strings (LED and incandescent), and low power lamps such as LED, neon, compact fluorescent, electronic and magnetic low voltage, halogen and incandescent. Common applications include Christmas tree lighting, cue lights, signs, marquees, and practicals.

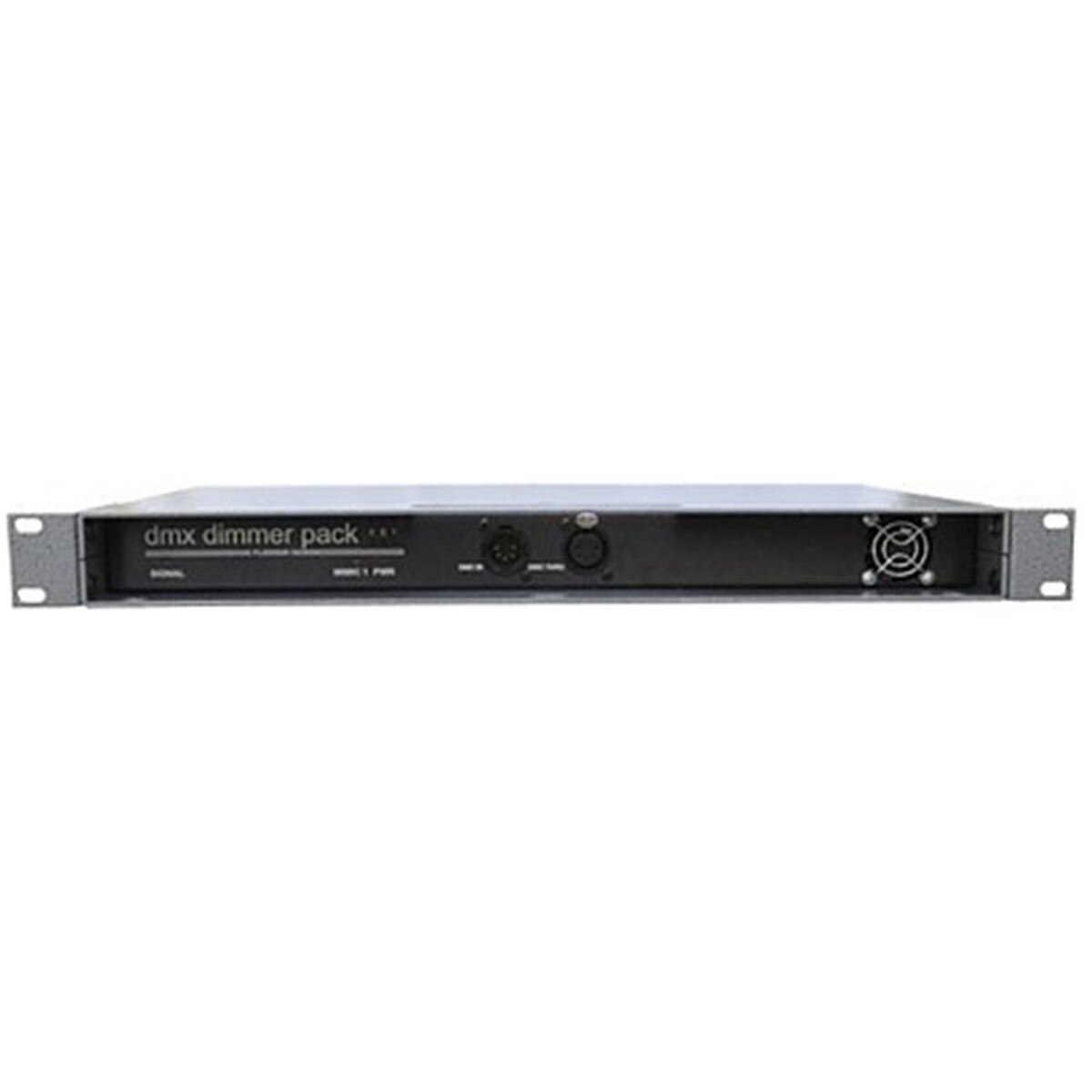

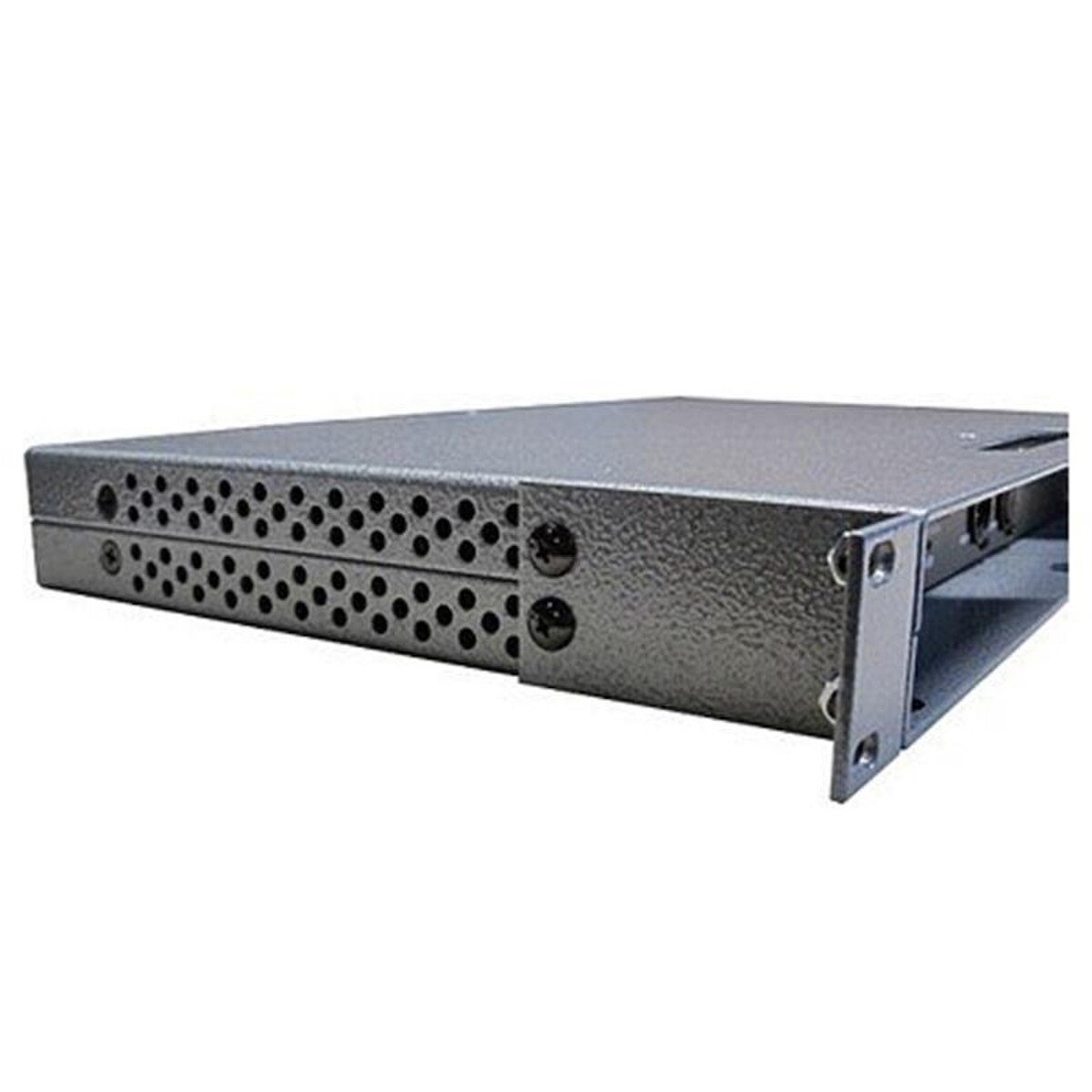

The dimmer is a single-space rack mount unit with removable rack ears. Airflow is front to side. Half inch holes are provided for half couplers or C clamps. The enclosure features a carry handle and a 3/8 inch safety cable slot.

Specifications:

• All specifications meet or exceed DMX512 requirements.
• Input circuit: Protected EIA-485 receiver (LT1785).
• Input protection: Undamaged by up to 60 Volts continuous, 15KV transients.
• Input signal: 0.2 volts minimum, 12 volts maximum, DMX512, DMX512/1990, or DMX512-A.
• Input connector: Gold plated 5 pin male XLR (Neutrik D-1 series) 3 pin XLR optional.
• Input pass through: Gold plated 5 pin female XLR (Neutrik D-1 series). All five pins are passed through.
• Termination: None. Unused pass through connectors must be externally terminated.
• Power input: 120 VAC 60 Hz 20 Amps at full load. Actual current draw is 0.05A plus connected load.
• Power input connector: NEMA 5-15P (15A U-ground) on 18 inch 12 gauge pigtail. Connector must be replaced with a 20A connector for connected loads greater than 1800 Watts.
• Idle power: Less than 1 Watt.
• Power output: 120 VAC 60 Hz 0.83 Amps maximum per output.
• Minimum load: No minimum load requirement.
• Size and weight:
  • H x D x W: 1.7 x 10.5 x 19"
  • 17" behind rack ears
  • 7 lbs
