Doug Fleenor DMX Universe Identification Tool - Pack of 25

*Pack of 25

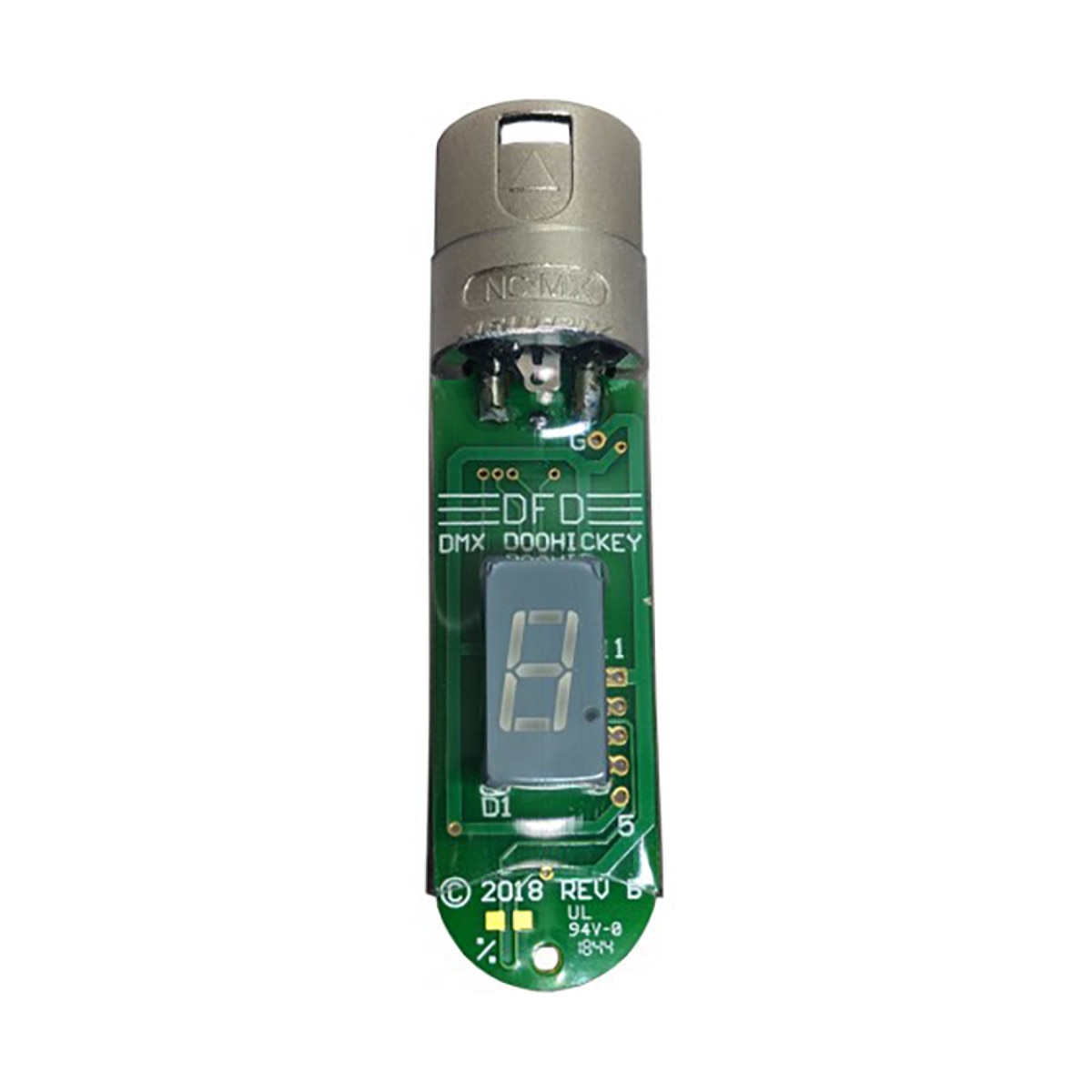

The DMXdoohickey is a DMX512 testing device that displays the level recorded into channel 512. This channel is often used to hold the universe number of that particular DMX line, and the DMXdoohickey is a quick testing device to show that number.

Specifications:

• Environmental:
• Operating temperature: 0-40º C (32-104° F)
• Operating humidity: 10-90% non-condensing
• Power: The DMXdoohickey sources power from a replaceable CR1225 battery.
• Signal Connector: The DMXdoohickey uses a male 5-pin XLR connector. Pins 4 and 5 are not used by the DMXdoohickey.
• Size & Weight:
• Size: 2.875”H × 0.625”D × 0.75”W
• Weight: .5 ounce
