Doug Fleenor DMX to D54 Converter
Details
*Please inquire for lead time
Doug Fleenor DMX to D54 Converter (DMX Console - D54 Dimmers).

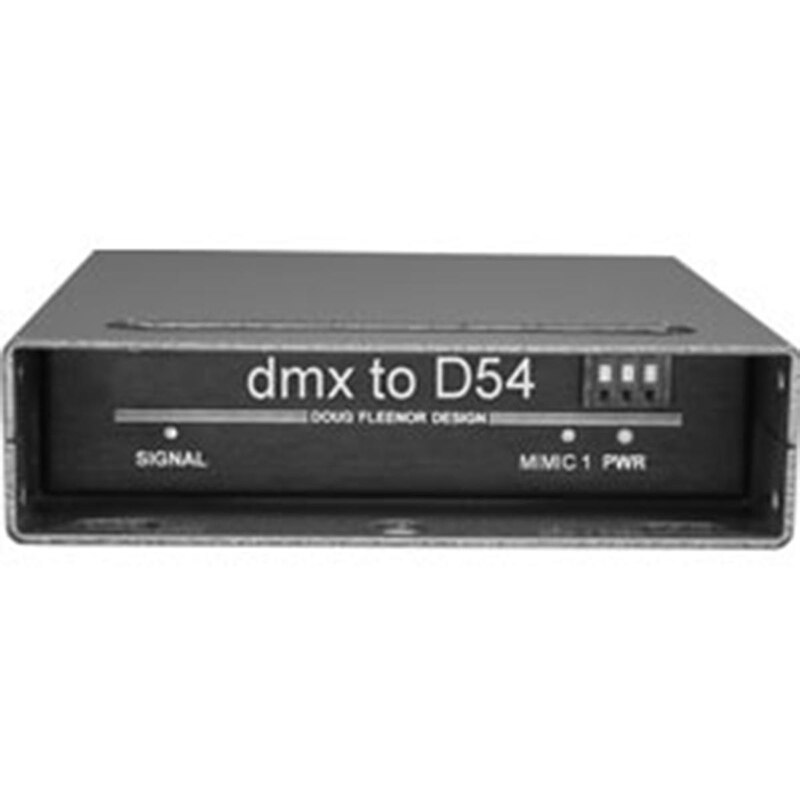

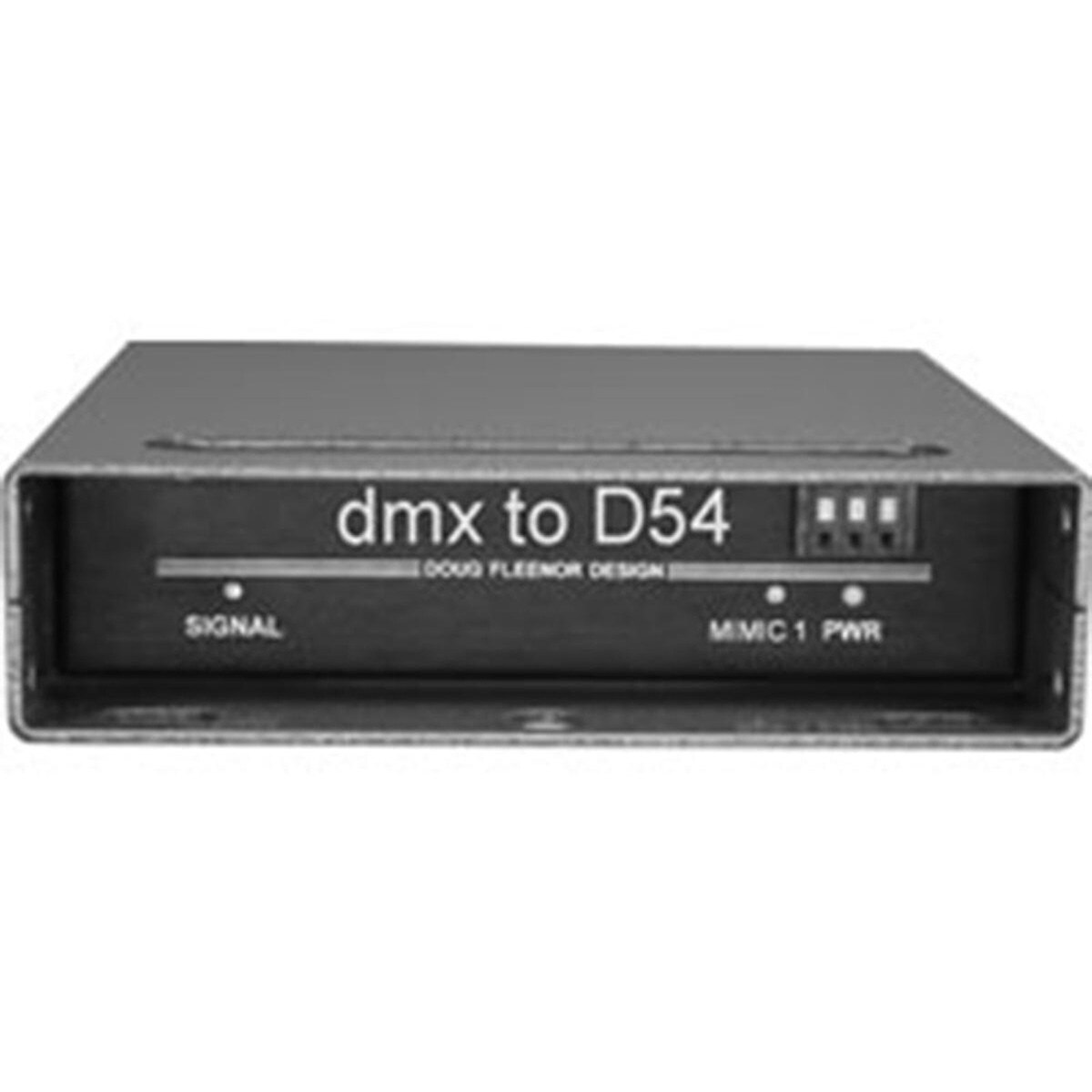

The DMX to D54 interface converts DMX512 into the 384 channels of Strand D54. All connectors feature gold plated contacts. DMX512 is received via a 5 pin male XLR connector. The Strand D54 outputs via a 3 pin female XLR connector. A "pass-thru" 5 pin female XLR is also provided for the DMX signal. LED indicators display DMX input signal, power and a Mimic of Strand D54 channel one. A three digit thumbwheel switch is provided to set the starting address. A test feature allows bringing any output to full by setting the front panel switch to 601 - 984.
Please call for prices.
Available connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure.
