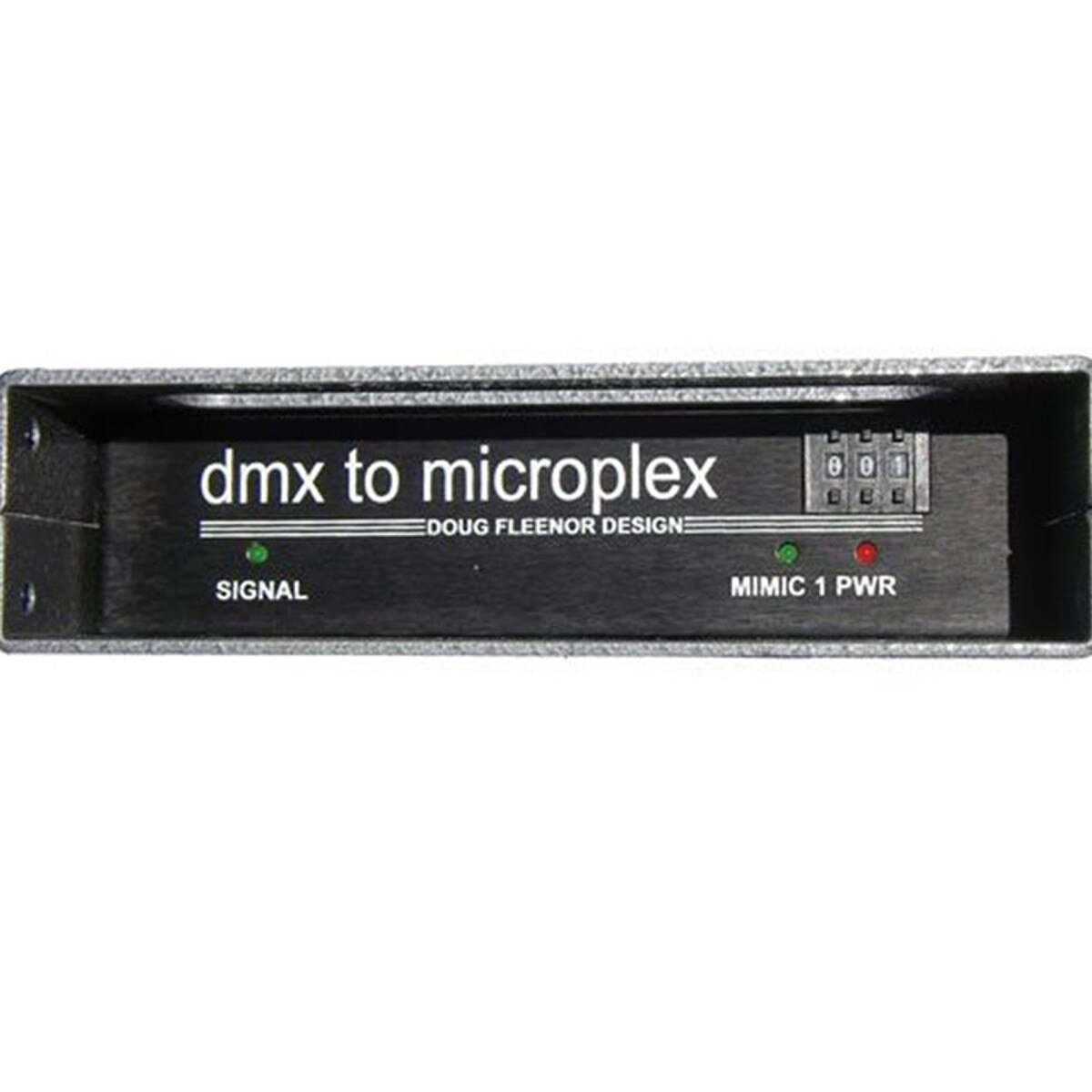

Doug Fleenor DMX to Microplex Interface

The DMX to Microplex Interface is capable of converting DMX512 to Sunn, ETA, NSI, Lepercon or Lightronics versions of Microplex. Since each of these manufactures use unique timings, the DMX to Microplex interface provides jumpers to configure the Microplex output.

Specifications:

• Input signal: 250 Kilobaud, 0.2 volts minimum, 12 volts maximum
• Input circuit: ESD protected EIA-485 transceiver (LT1785)
• Input connector: Gold plated 5 pin male (Neutrik D-1 series)

Input pass through:

• Gold plated 5 pin female (Neutrik D-1 series)
• All five pins are passed through
• Option jumpers:

JP1:

• Installed: DMX times out in 1 second (Default)
• Removed: Hold last look

JP2:

• Installed: 64 Channel Output (Default)
• Removed: 128 Channel Output

JP3:

• Installed: Fast Output (Default)
• Removed: Slow Output
• Output signal:

64 Channel:

• Fast: 70 Hertz Output
• Slow: 37 Hertz Output

128 Channel:

• Fast: 38 Hertz Output
• Slow: 20 Hertz Output

• Output circuit: Hi-speed operational amplifier (LF347)

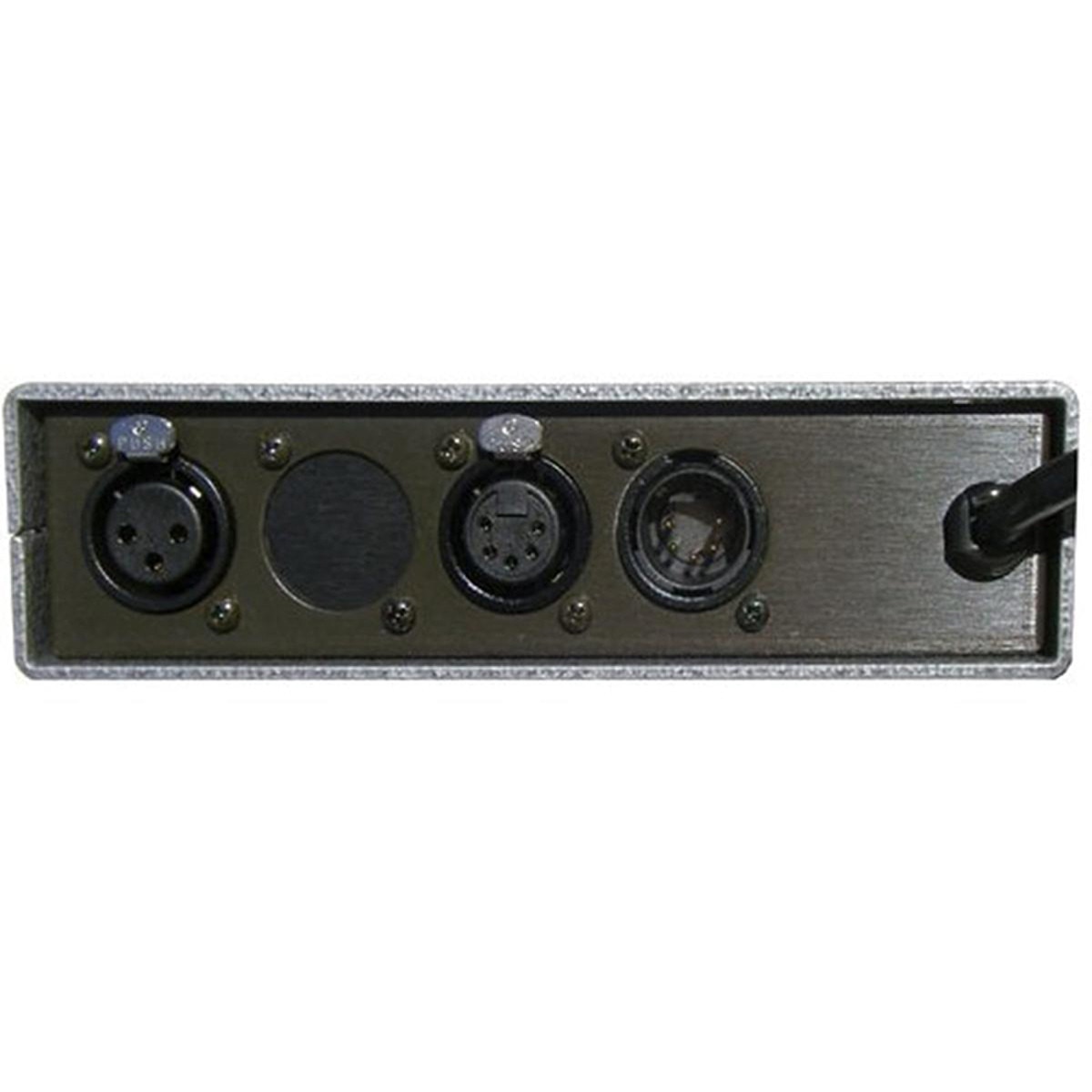

• Output connector: Gold plated 3 pin female (Neutrik D-1 series)

Output Pinout:

• Pin 1 = common
• Pin 2 = N/C
• Pin 3 = signal
• Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208 - 240 volt optional)

Color:

• Top, bottom and sides: Silver hammer tone.
• Front and back: Black.
• Size and weight: 6.5" deep, 1.7" high, 6.5" wide, 2.7 pounds (19" rack adapter available)
