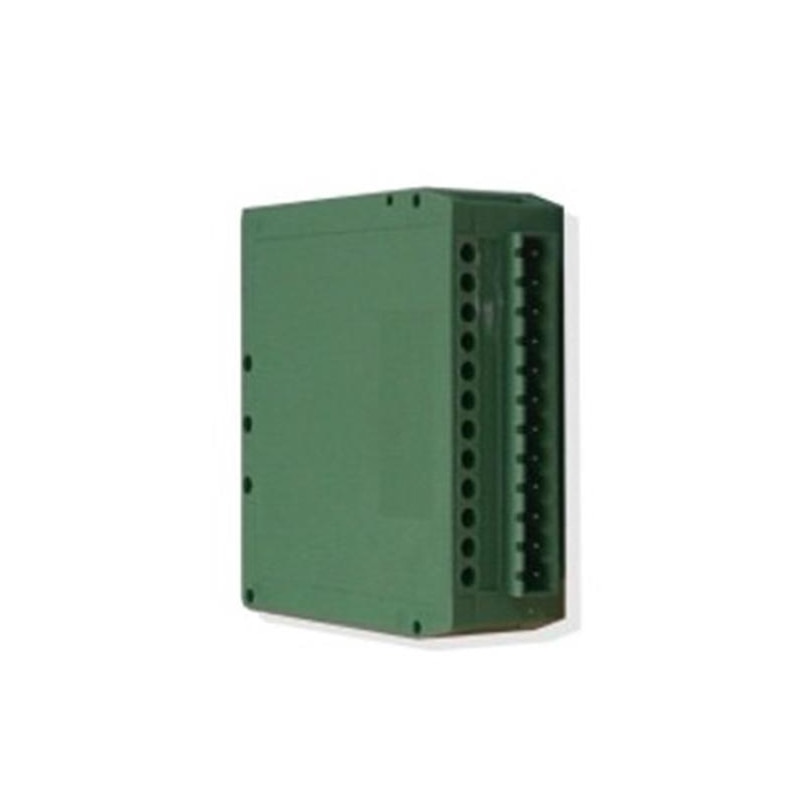

Doug Fleenor DMX512 DIN-Rail Mounted Interface

The DMX512 DIN-Rail Mounted Interfaces are interface products that receives DMX512 lighting control protocol and generates various signals to interface with other show control elements. The interface is currently available with three common outputs: dry contact relay closure, open collector optical coupler and DMX512 opto-isolator.

Specifications:

• Input circuit: EIA-485 receiver with series self resetting fuses (PTC) and transient absorbing diodes.
• Input protection: Not damaged by continuous 120VAC line cross or up to 5KV transients.
• Input isolation: 600 volt DC/DC converter, 2500 volt optical coupler.
• Input termination: 120 ohm termination circuit may be switched in or out via external jumper
• Input signal: 0.2 volts minimum, 12 volts maximum

Output circuits:

• 0-10V analog: LM324 op amp w/ series 1N4004 diode. 15mA Max. short circuit protected.
• 0-10V high current: 2N3904 emitter follower. 150 mA Max. not short circuit protected!
• Dry contact relay: Aromat JQ series high capacity type. 5 amps 30VDC, 10 amps 125VAC
• Optical coupler: H11A1. Max. output current: 5mA. Max. output voltage: 30VDC

Connector:

• Phoenix Contact MSTB series 12 position.
• Supplied male header: Phoenix part number MSTBA2,5/12-G-5,08
• Mating female connector (optional):
• Phoenix part number MSTBT 2,5/12-ST-5,08

Connector pin outs:

• 1 - DMX512 common
• 2 - DMX512 data -
• 3 - DMX512 data +
• 4/5 - Jumper together to terminate DMX512 input with 120 ohms
• 6 - 0-10V analog out
• 7 - common DC supply (15 - 24 VDC)
• 8 - positive DC supply (15 - 24 VDC)
• 9/10 dry contact relay
• 11 - optical coupler's negative pin (NPN emitter)
• 12 - optical couplers positive pin (NPN collector)
• Power input: 15 - 24 volts DC, 0.5 amps plus connected load
• Color: Phoenix Contact green
• Size and weight: 3 1/4" wide, 3 3/4" high, 1" deep, 6 oz.
