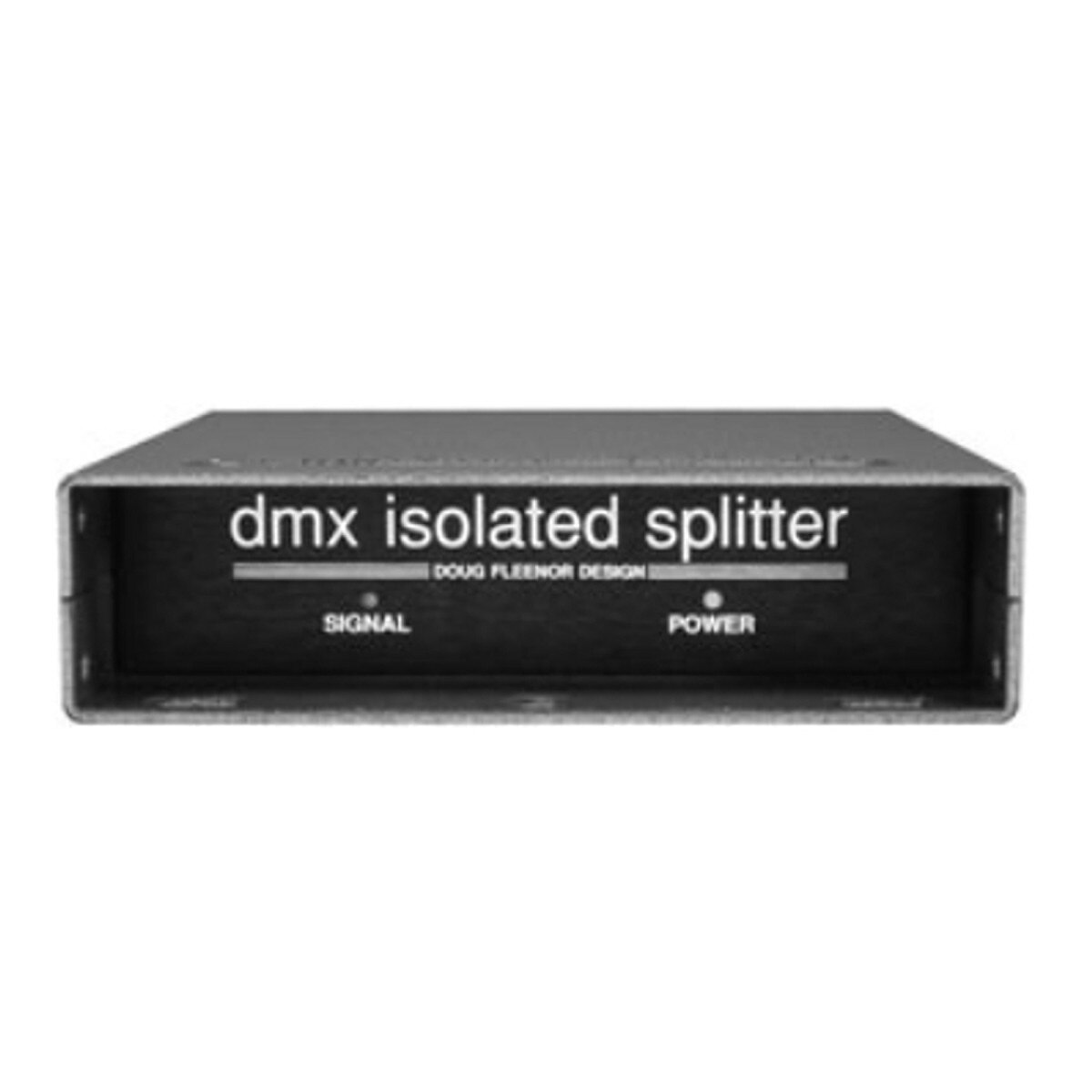

Doug Fleenor DMX512 Isolated Splitter/Amplifier - 3 Outputs 1 Input - 5 Pin
Details
Each output is electrically isolated from the input, and every other output, by 2500V optical couplers. Each output has its own line driver and associated power supply.
Specifications:
- Input circuit: EIA-485 receiver with 120 ohm termination resistor between +Data and -Data (Units with feed through connectors do not have internal termination)
- Input signal: 0.2V minimum, 12V maximum
- Output circuit: EIA-485 driver

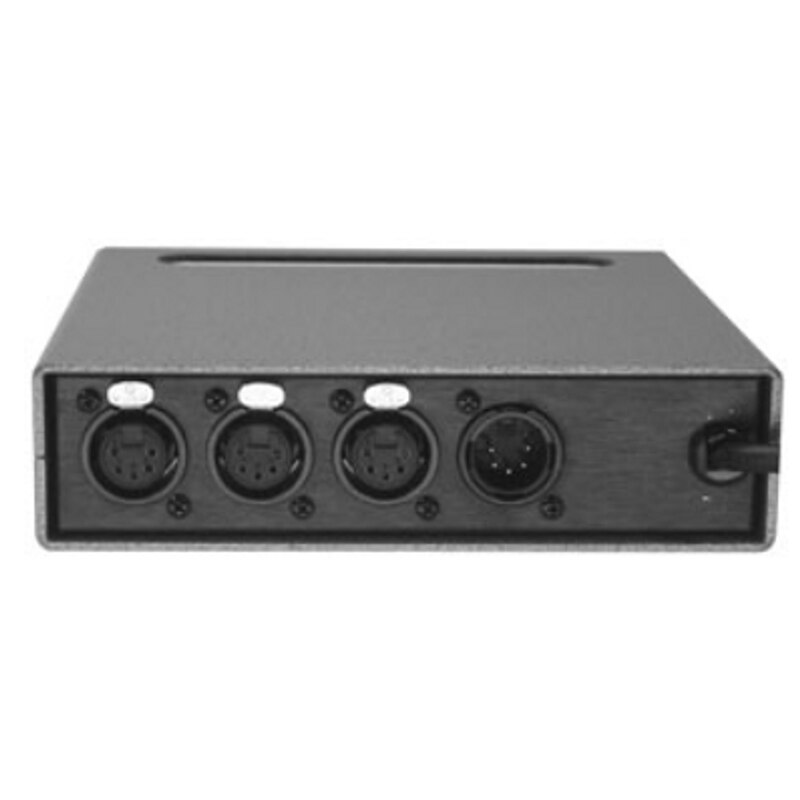

- Connectors: Gold plated 5 pin Neutrik D-1 Series
- Feed through: A non-isolated feed through connector is standard on the eleven output model and is optional on the one, three, and five output models.
- Isolation: 2500V optical coupler, 1500V split bobbin transformer
- Power input: 100V - 120V, 50/60 Hz, 12W
- Color:
- Top, bottom and sides: Silver hammer tone
- Front and back: Black
- Size: 6.5" deep, 1.7" high, 6.5" wide
