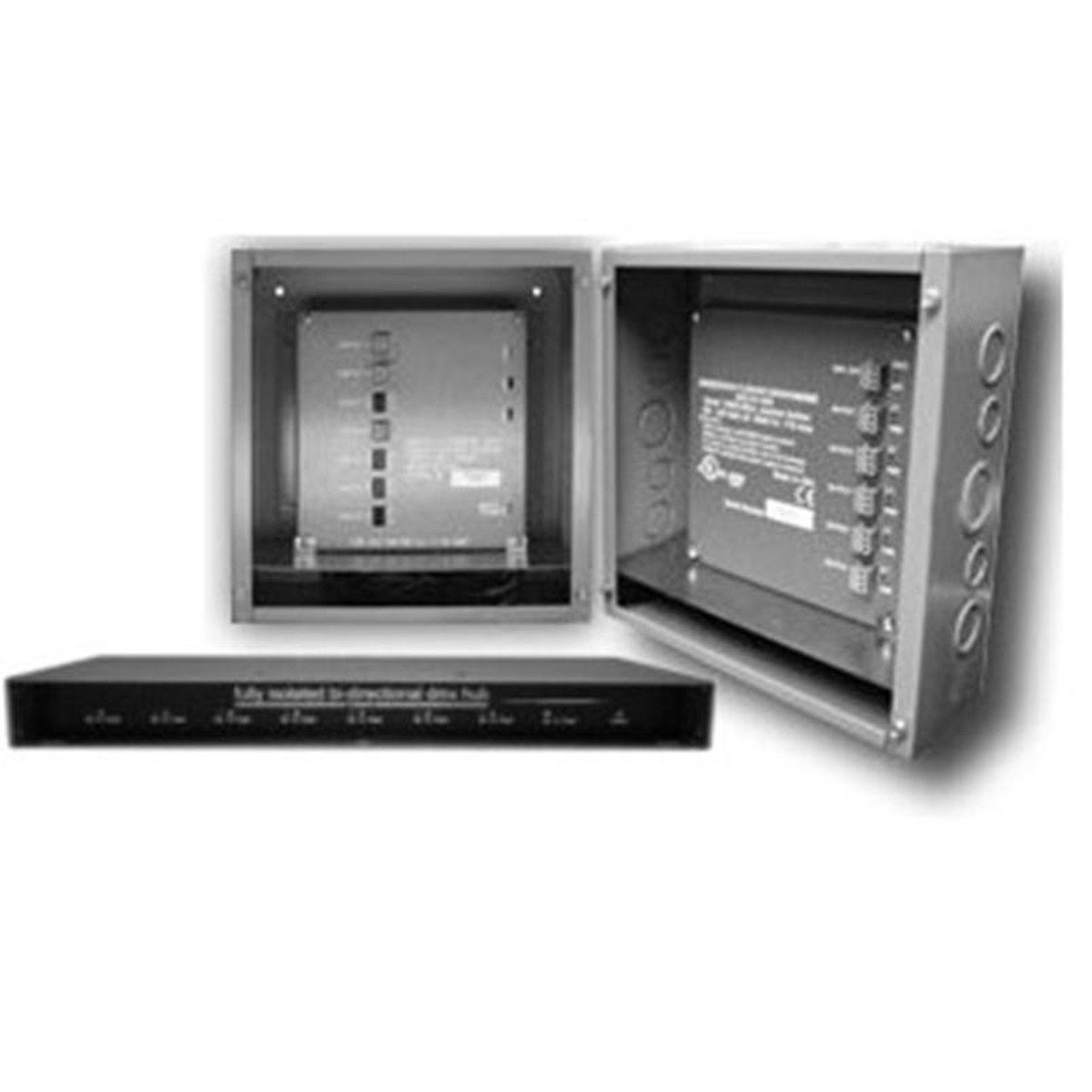

Doug Fleenor DMX Isolated Splitter/Amplifier with Junction Box - 5 Outputs 1 Input

Each output is electrically isolated from the input, and every other output, by 2500 volt optical couplers. Each output has its own line driver and associated power supply. Includes junction box mounting option.

Specifications:

Input Circuit:

• EIA-485 receiver with 120 ohm termination resistor between +Data and -Data (Units with feed through connectors do not have internal termination)

Input Signal:

• 0.2 volts minimum, 12 volts maximum

Output Circuit:

• EIA-485 driver

Connectors:

• Gold plated 5 pin Neutrik D-1 Series

Feed Through:

• A non-isolated feed through connector is standard on the eleven output model and is optional on the one, three, and five output models.

Isolation:

• 2500 volt optical coupler, 1500 volt split bobbin transformer

Power Input:

• 100 - 120 volts, 50/60 hertz, 12 watts

Color:

• Top, bottom and sides: Silver hammer tone
• Front and back: Black

Size (D x H x W):

• 6.5 x 1.7 x 8.25"
