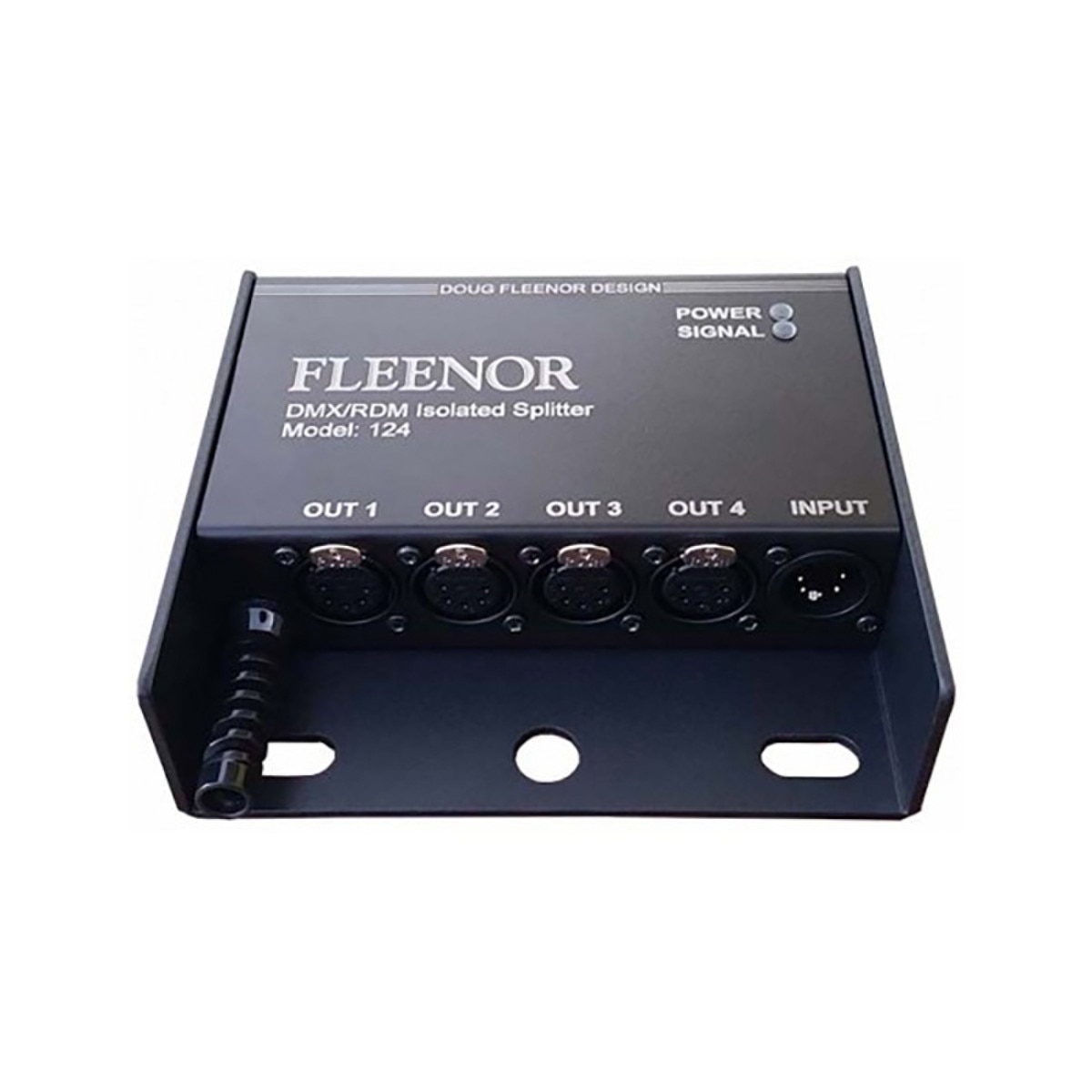

Doug Fleenor DMX512/RDM Splitter - 4 Outputs 1 Input - Terminal Blocks

The 124 is an economical bi-directional DMX512/RDM splitter. These splitters have fully isolated inputs The four outputs are separately driven, but are not isolated from one another.

Specifications:

• Input circuit: Protected EIA-485 receiver (LT1785).
• Input protection: Undamaged by up to 60 Volts continuous, 15KV transients.
• Input signal: DMX512, DMX512/1990, DMX512-A, or RDM.
• Signal connectors: Gold plated 3 or 5 pin Neutrik ‘A’ XLR’s (Phoenix terminal blocks or Neutrik RJ45
• optional)
• Termination: Input and all outputs are terminated per RDM specifications.
• Power input: 100-240 VAC, 50-60 Hz., 0.5 Amps, auto-switching.
• Indicators: Red LED for POWER. Green LED for presence of DMX512 or RDM.
• Cooling: Convection cooling, no fan required.
• Isolation: DMX512/RDM input is optically isolated to 1,500 Volts.
• Color: Black. Laser engraved legends on top surface.
• Size and weight: 1.6"H × 4.8"D × 5.5"W, 2 pounds
• Environmental: 0-40 °C (32-104 °F), 10-90% humidity, non-condensing
• Mounting: A ½” hole is provided for C-clamp or half coupler mounting.
• Two slots are provided for safety cables or other mounting techniques.
