Doug Fleenor DMX512 iPlayer 2 Interface

The DMX512 iPlayer interface receives a DMX512 input signal and outputs RS-232 commands to the iPlayer. The interface uses three consecutive DMX512 channels: trigger mode, show selection, and global intensity.

The interface is compatible with iPlayer 2, iPlayer 3, and Light System Manager which are products (and registered trademarks) of Color Kinetics Incorporated.

Specifications:

• Input band rate: 250 Kb/s
• Input circuit: ESD protected EIA-485 transceiver (LT1785)
• Input signal: 3 volts minimum, 12 volts maximum

Input connectors:

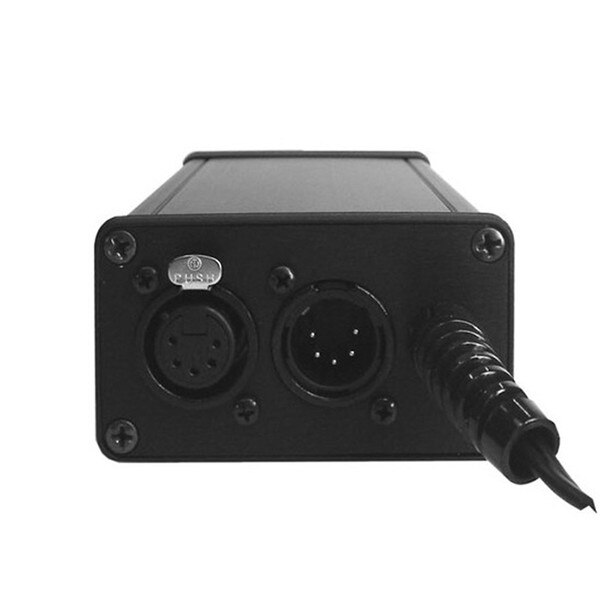

• Gold plated 5 pin Neutrik D-1.
• Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+.
• Through connector: Gold plated female 5 pin XLR (Neutrik D-1 series). All pins wired through.

DMX profile:

• 3 consecutive channels (trigger mode, show selection, global intensity)

OR

• 5 consecutive channels (trigger mode, hundreds, ten, ones, global intensity)
• Output baud rate: 9600 bps, 8 data bits, no parity, 1 stop bit

Output circuit:

• RS-232 driver (MAX232)
• Outputs are short circuit protected but not over voltage protected.
• Output signal: RS-232 driver yields an approximate +/- 10 volt signal

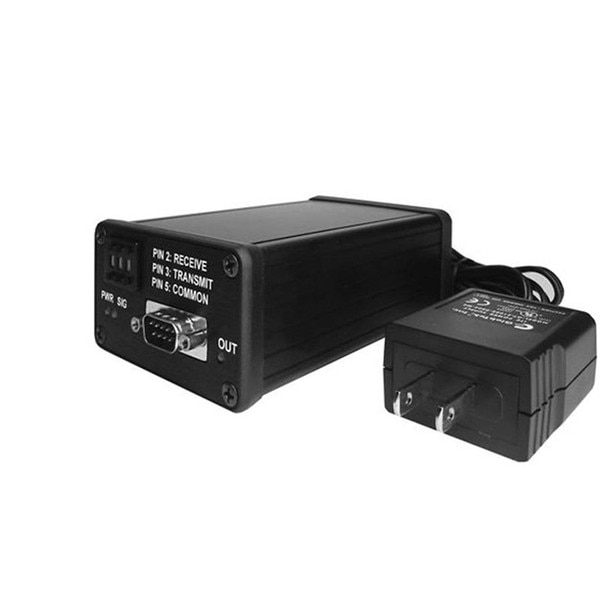

• Output connector: DB9 (male) Pin 2 = Receive, Pin 3 = Transmit, Pin 5 = signal ground. (straight DB9 Male to Female, cable provided)

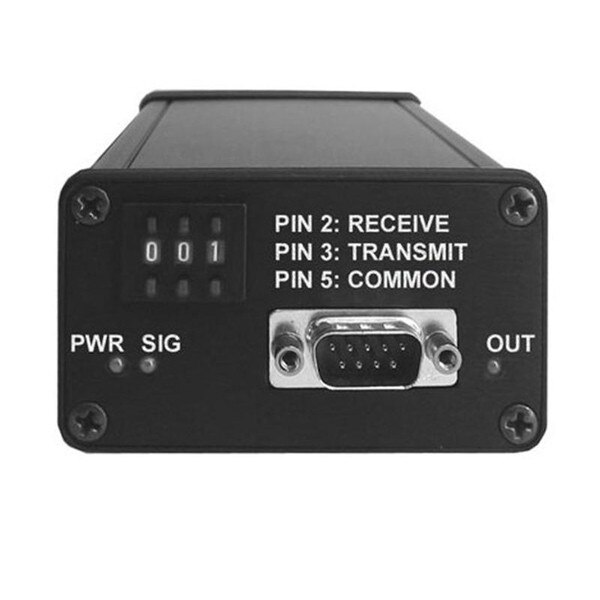

• User interface: Start address set via a three digit thumbwheel switch
• Indicators: Red power LED, Green DMX signal LED, Green RS-232 transmit LED
• Power input: Universal power supply 100 - 240VAC, 50/60 hertz, 5 watts
• Color: Black anodized

Size and Weight:

• Chassis 5.3" X 3.2"w X 1.8"h, 12 ounces
• Power supply 2.2"l X 1.9"w X 1.0"h, 5 ounces
