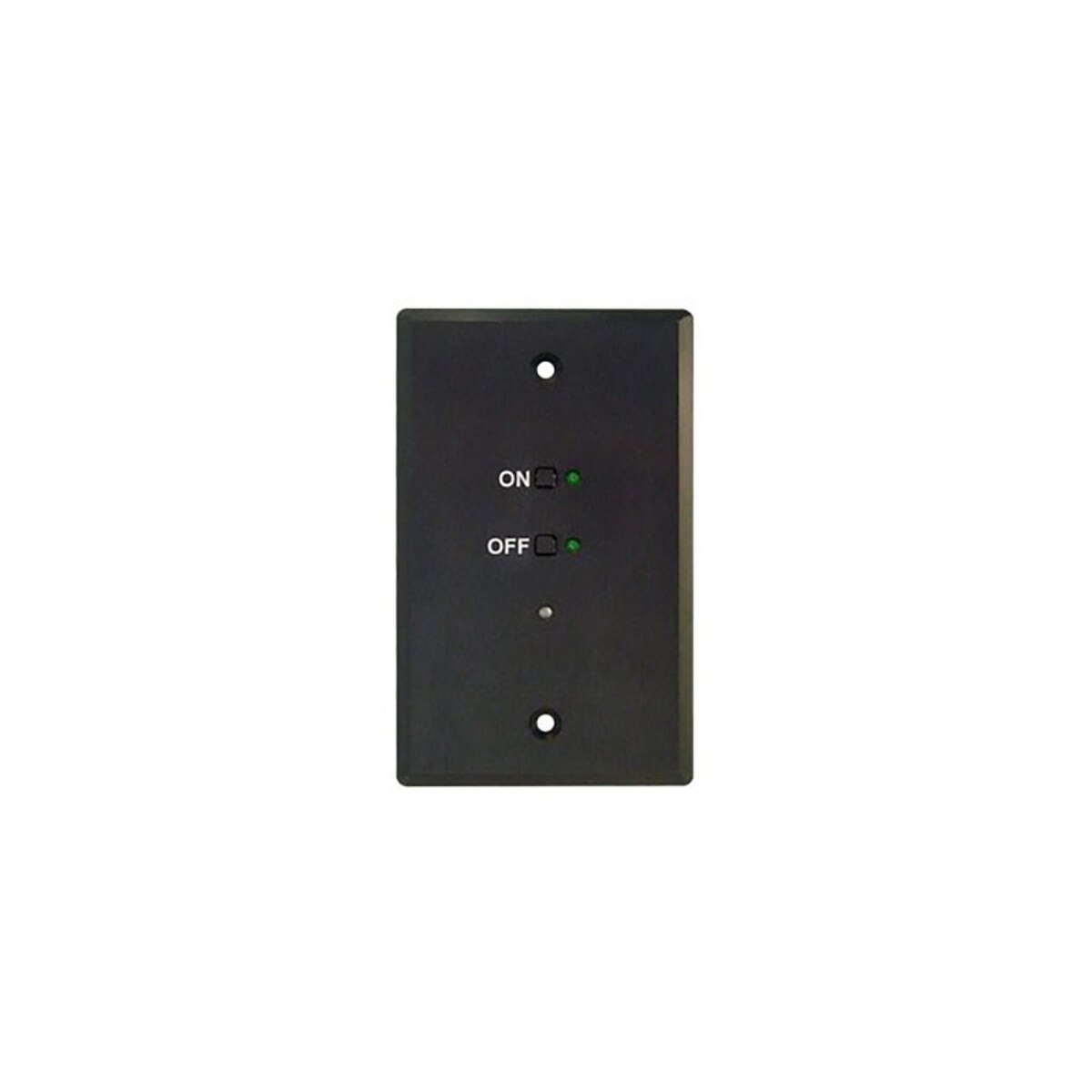

Doug Fleenor Entry Station Two - Black Faceplate

The Entry Station Two is a simplified entry station with two user assignable buttons. The buttons can be associated with any preset on the master. Presets are recalled by pressing one of the buttons.

Note: The ES2 is a slave station only. It must be used in conjunction with a Preset 10 Architectural or Rerun Architectural operating as a master station.

Specifications:

• Connector:
  • Phoenix Contact MSTB series 5 position two part terminal block
  • Model: MSTB 2,5/5-ST-5,08 Order Number 17 57 04 8
• Connector pin out:
  • 1 (C) DMX512 common
  • 2 ( -) DMX512 data -
  • 3 (+) DMX512 data +
  • 4 (C) Supply common (internally tied to pin1)
  • 5 (V) Supply voltage "hot"
• Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)
• Indicators:
  • Two green preset indicator LEDs
  • One bi-color Lockout (red), Time (yellow) & Inactive (green)
• User controls: Two preset push buttons
• Option jumpers: When removed sets preset button address
• Power input: 9 to 24 volts DC or 6 to 16 volts AC / 200mA per station (A 10 volt class 2 "doorbell" transformer is recommended for fixed installations)
• Color: Black Anodized, With Silver Engraved Nomenclature
• Size :
  • Face Plate: 4.5"h x 2.75"w x 0.2"d
  • Face Plate Rear Inset: 4.15"h x 2.4"w x 0.1"d
  • Electrical Box Minimum Inside Dimensions: 3.5"h x 2.1"w x 1.25"d
