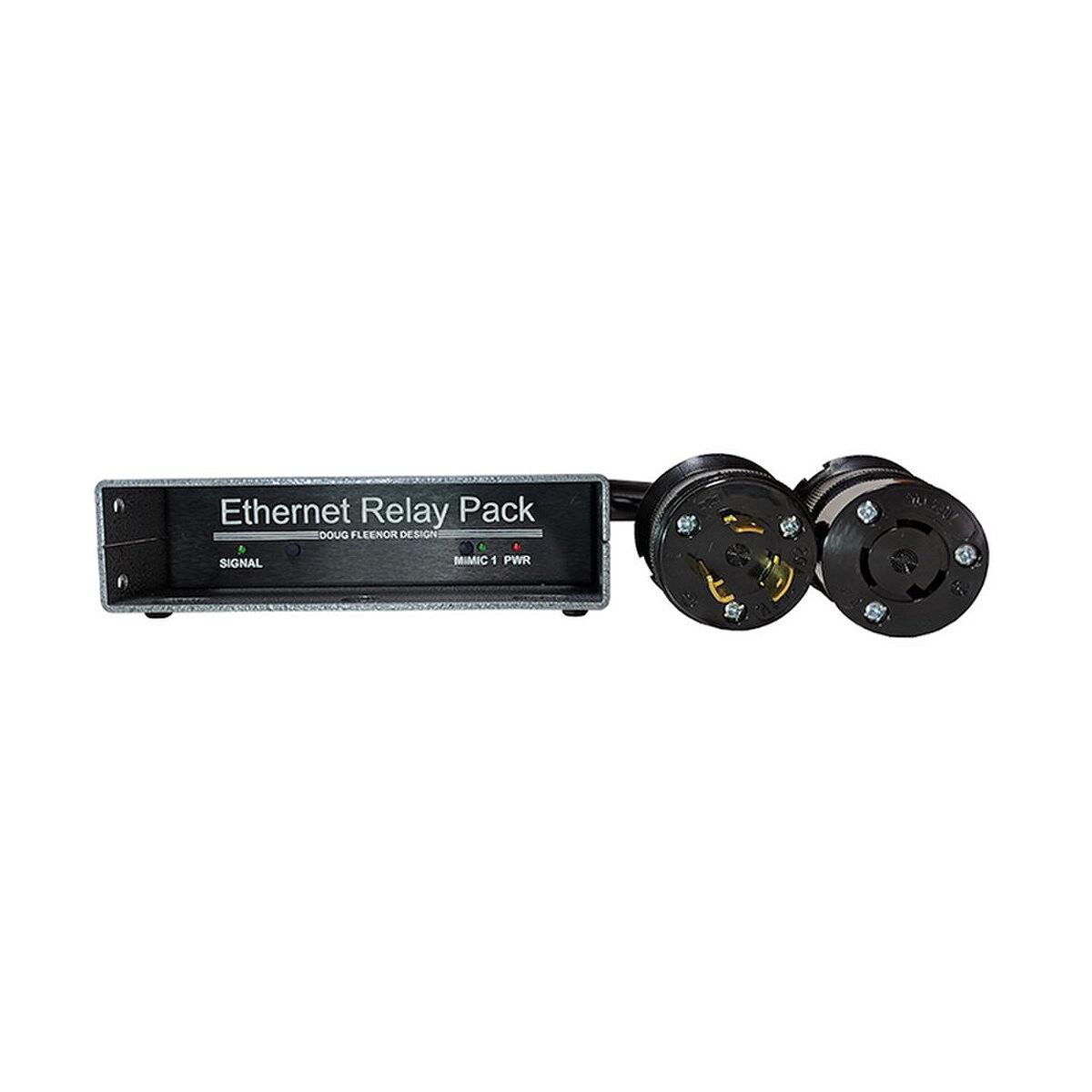

Doug Fleenor Ethernet Control Relay Pack - 120VAC Input and Output w/ 1 Channel - 20A in Junction Box
Details
The E1REL20A-JBOX and E1REL20A-2POLE-JBOX use ArtNet and SACN (E1.31) Ethernet protocols for control of a relay. They can switch up to a 20 amp line voltage load and are built with a 30 amp relay for robust performance.
Specifications:
- Certification: ETL Listed to the UL 508 standard.
- Input signal: E1.31 sACN and ArtNet
- Input circuit: 100BASE-TX Fast Ethernet, Crossover Detection
- Input connector: Neutrik Ethercon
- Power input: 100 to 240 Volts, 50/60 hertz, 4 watts (plus load).
- Power wiring: 10mm Euro Strip UL 30a-450 Volt M3 Screw terminal block.
- Power output: Input power is switched to output.
- Output rating: 20 amps.
- Output device: Omron G8P.
- Mechanical life:
- 10,000,000 operations minimum.
- Electrical life: 250,000 operations minimum at 5 Amps.
- 125,000 operations minimum at 20 Amps.
- Environmental: 0-40° C (32-104° F), 10-90% humidity, non-condensing. Indoor use only.
- Color: Gray.
- Size and weight: 12"H × 4"D × 12"W, 8 pounds.
