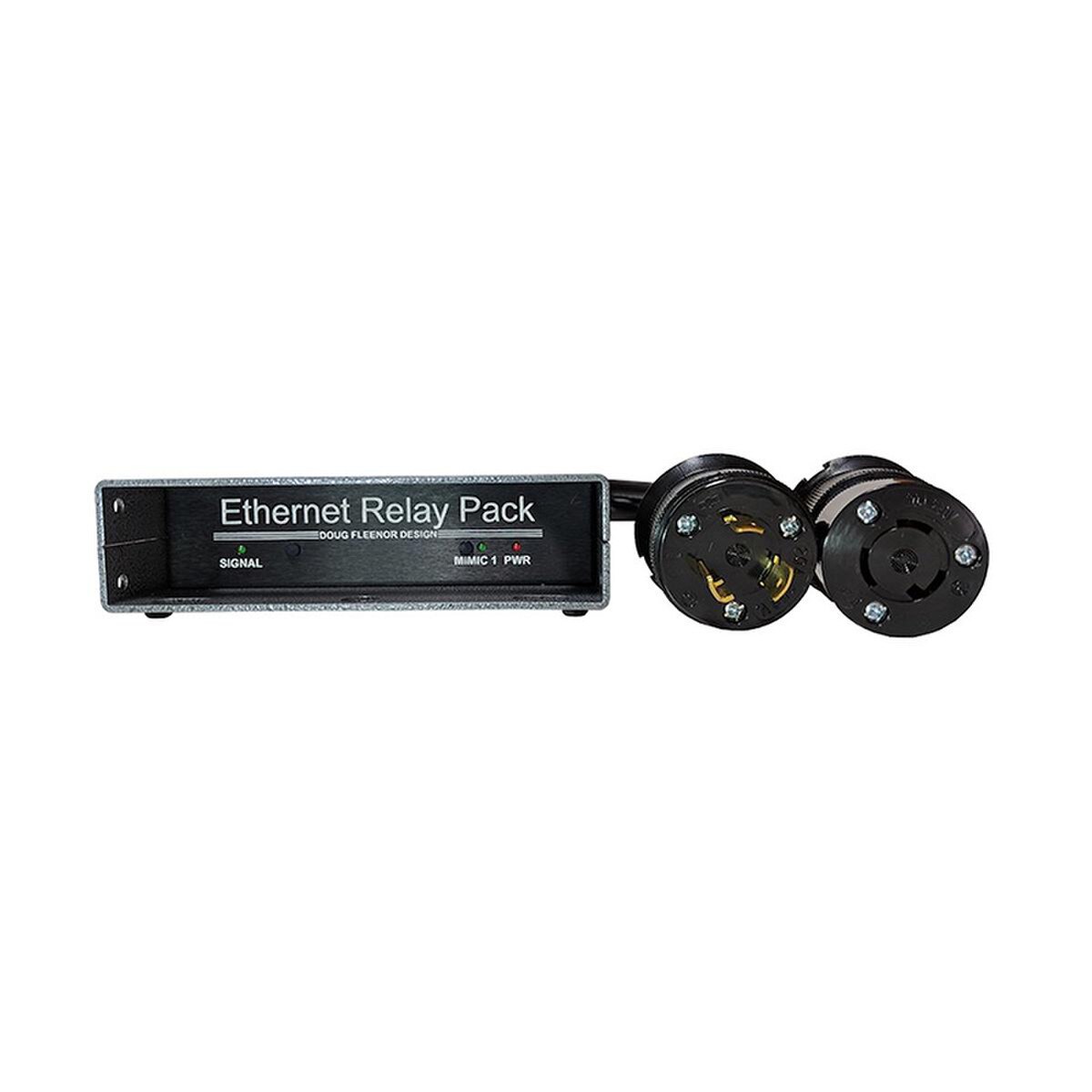

Doug Fleenor Ethernet Control Relay Pack - 240VAC Input and Output w/ 1 Channel - 20A 2 Pole

The E1REL20A-2POLE controls two output legs using a single channel of ArtNet or sACN (E1.31) Ethernet protocols. The relays can switch up to a 20 amp line voltage load and are built with a 30 amp relay for robust performance. The outputs is suitable
for 208VAC with two hot legs switched, or 240VAC with hot and neutral switched. The unit is provided with two 18" 12/3 SJ pigtails for line in and switched line out. Supplied with 20 amp twist lock connectors (L6-20) as standard, the unit may be wired with different connectors by special order or may be rewired by the customer.

Specifications:

• Certification: ETL Listed to the UL 508 standard.
• Input signal: E1.31 sACN and ArtNet
• Input circuit: 100BASE-TX Fast Ethernet, Crossover Detection
• Input connector: Neutrik Ethercon
• Power input: 208 to 240 Volts, 50/60 hertz, 6 watts (plus load)
• Power input plug: NEMA type L6-20, others optional
• Power output: Input power is switched to output (two legs)
• Power output socket: NEMA type L6-20, others optional
• Output rating: 20 amps with L6-20 connectors
• Output device: Omron G8P Relay.
• Mechanical life:
• 10,000,000 operations minimum
• Electrical life:
  • 250,000 operations minimum at 5 Amps
  • 125,000 operations minimum at 20 Amps
• Color:
  • Top, bottom, and sides: Silver hammertone
  • Front and back: Black
• Size and weight: 1.7”H × 6.5”D × 6.5”W, 2.7 pounds (19” rack adapter available)
