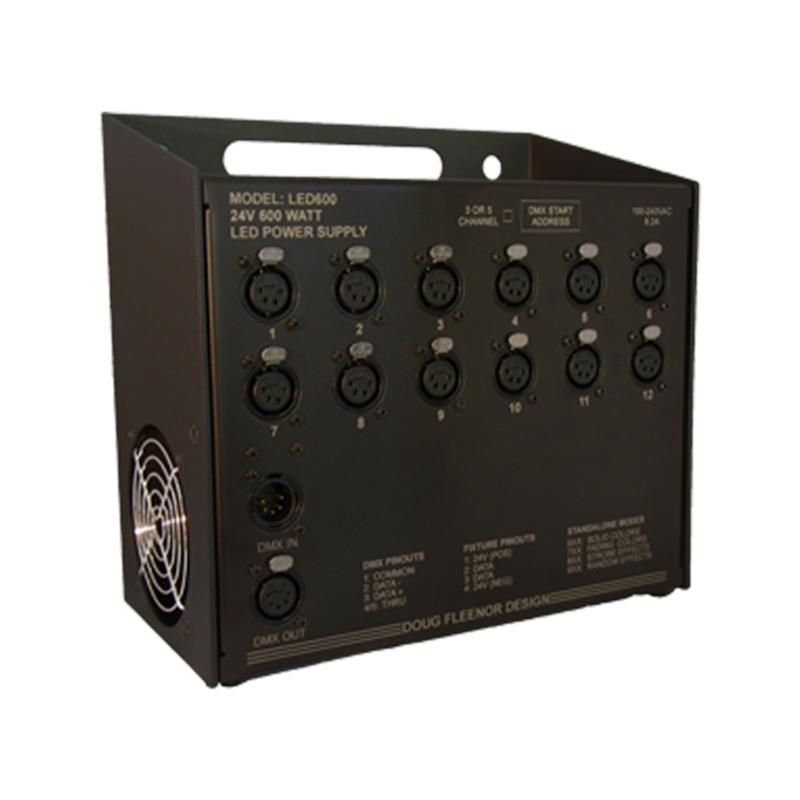

Doug Fleenor LED600 Power Supply
Details
The LED600 power supply distributes DMX512 data and 24 Volt power to popular LED lighting fixtures. Primarily designed to power and control Color Kinetics ColorBlast 12 fixtures, the LED600 can also drive Color Kinetics iColor Cove, and similar products.
Power and data are provided on twelve 4-Pin female XLR connectors. Power appears on pins 1 and 4, Data is provided on pins 2 and 3.
led600-data.pdf
