Doug Fleenor Remote Addressing Device
Details

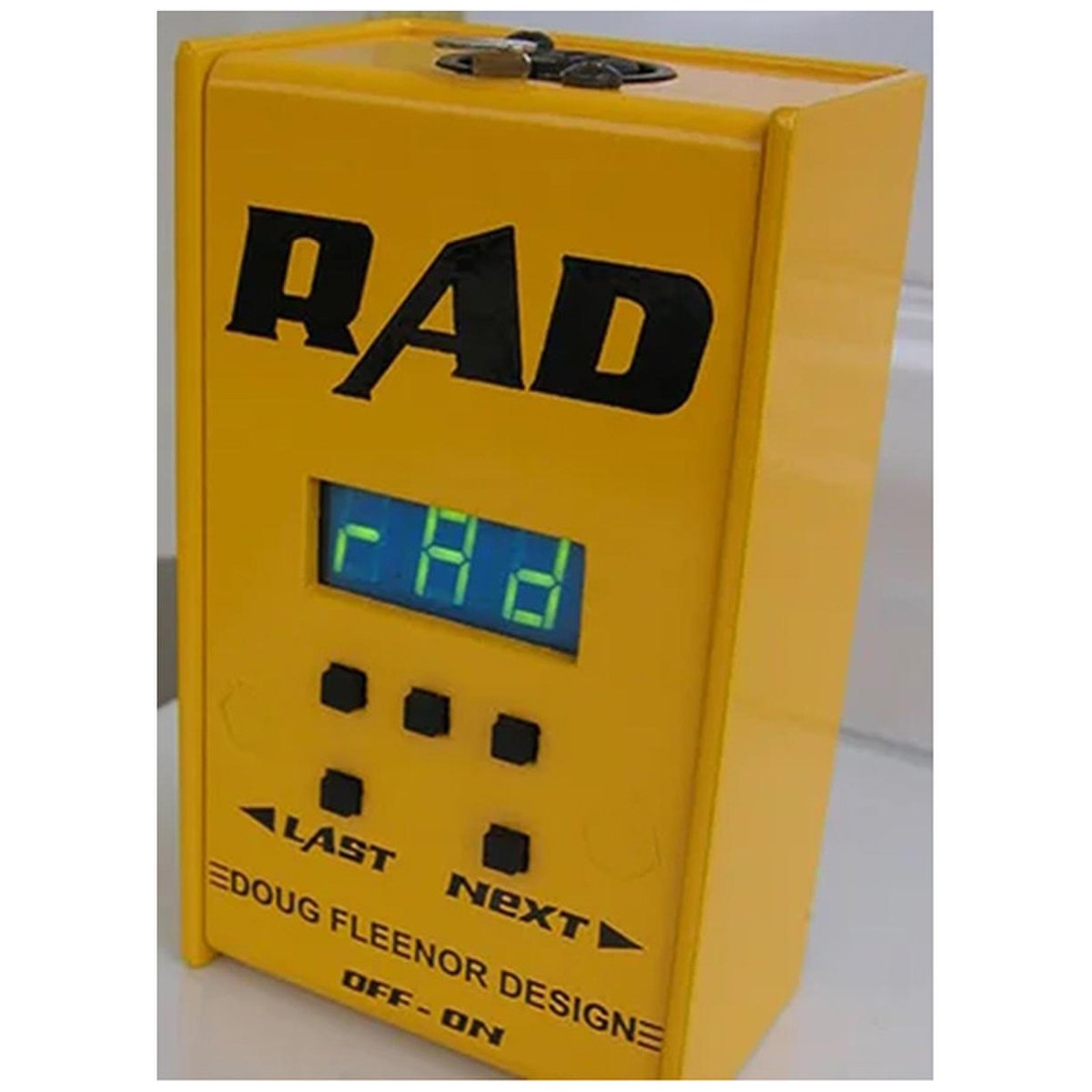

Doug Fleenor RAD The Remote Addressing Device (model RAD) is used to set the DMX address of compatible products using DMX/RDM. RDM (Remote Device Management) is an enhancement to DMX512 which allows status information and parameters (such as the DMX address) to be communicated over the DMX link.
Specifications:
- Connector: Gold plated 5 pin Neutrik Pin 1: Common, Pin 2: Data-, Pin 3: Data+, Pins 4 and 5: n/c
- User Controls: 1's,10's,100's, LAST and NEXT buttons
- Indicators: Three digit 7-segment LED display
- Power: Standard 9V battery
- Color: Yellow with black nomenclature
- Size and Weight: 4"h X 2.5"w X 2"d. 1/2 pound
