Doug Fleenor Rerun Architectural

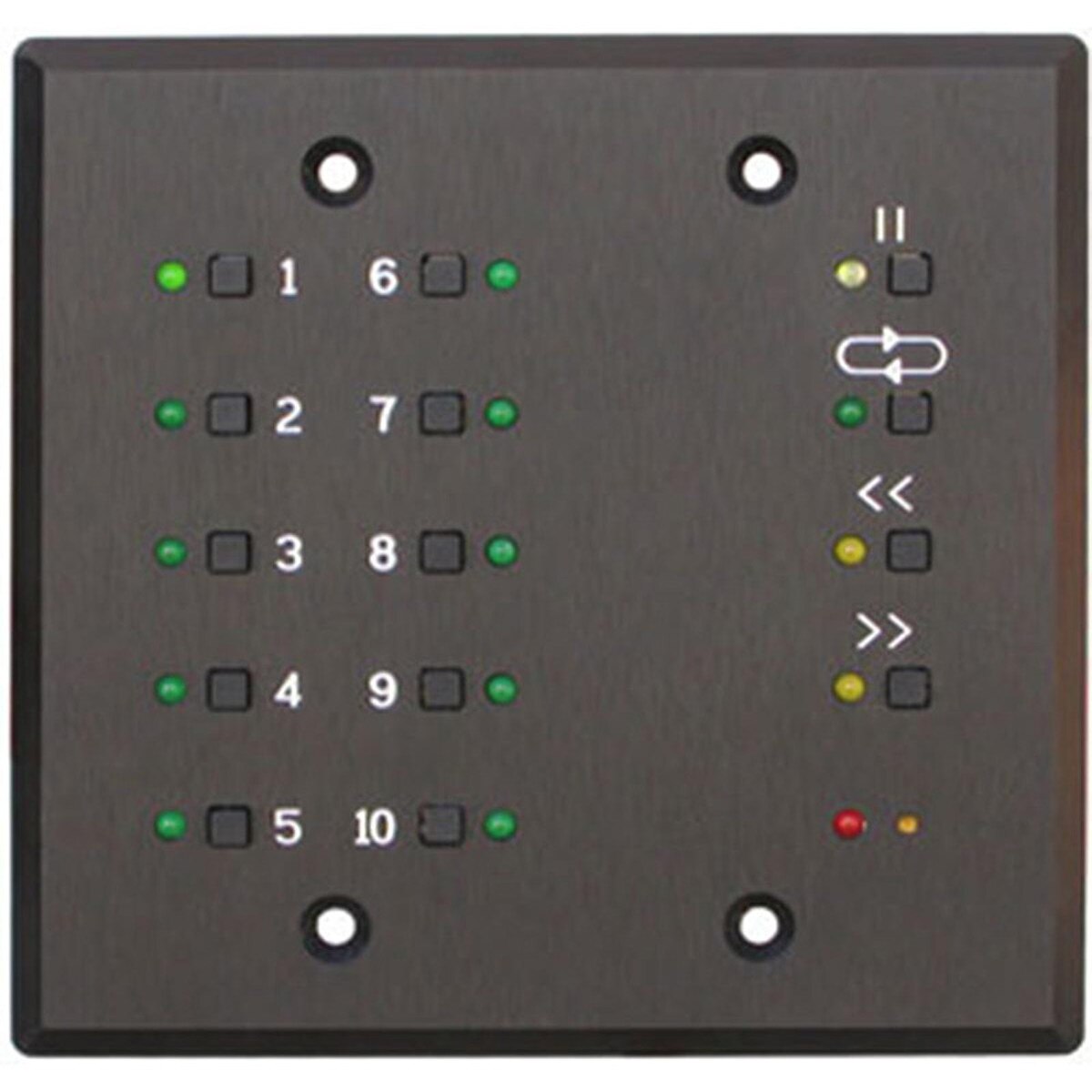

The Rerun Architectural is a lighting control station capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console. The recorded show start and end points may be trimmed non-destructively. Each show can be set to hold the last look, loop to itself or link to another show. Shows are started by pressing one of the ten show buttons.

Version 1.2 features

• Grand Master of show levels
• HTP merging of the DMX input
• Loss of DMX fade out or hold last look
• Show to show crossfade
• Button lockout
• End of show stop transmission

Specifications:

• Connector:

  • Terminal block #1
    • Phoenix Contact MSTB series
    • 5 position two part terminal block
    • Model: MSTB 2,5/5-ST-5,08
    • Order number: 17 57 04 8
  • Terminal block #2
    • Phoenix Contact MSTB series
    • 3 position two part terminal block
    • Model: MSTB 2,3-G-5,08
    • Order number: 17 55 74 9

• Connector pin out:

  • Terminal Block #1 (DMX512 Output)
    • 1 (C) DMX512 common
    • 2 ( -) DMX512 data -
    • 3 (+) DMX512 data +
    • 4 (C) Supply common (internally tied to pin1)
    • 5 (V) Supply voltage "hot"
  • Terminal Block #2 (DMX512 Input)
    • 1 (C) DMX512 common
    • 2 ( -) DMX512 data -
    • 3 (+) DMX512 data +
• Input circuit: ESD protected EIA-485 transceiver (LT1785)
• Output circuit: ESD protected EIA-485 transceiver (LT1785)
• Isolation: None. DMX input is not isolated from DMX output.
• Indicators:
  • Ten green SHOW LEDs
  • One green PAUSE LED
  • One green LOOP LED
  • One yellow START LED
  • One yellow END LED
  • One red INPUT/RECORD LED

• User controls:

  • Ten [SHOW] buttons
  • One [PAUSE] button
  • One [LOOP] button
  • One [REWIND] button
  • One [FORWARD] button
  • One recessed [RECORD] button

• Option jumpers:

INSTALLED REMOVED
JP1 Recording enabled Recording/editing disabled
JP2 Run show on DMX512 loss Hold last look on DMX512 loss
JP3 Normal operation Run hardware test
JP4 Normal operation Disable operation
JP5 Switch Over Mode Highest Takes Precedence (HTP) Mode
JP6 Normal operation Erase Memory (DANGER!)

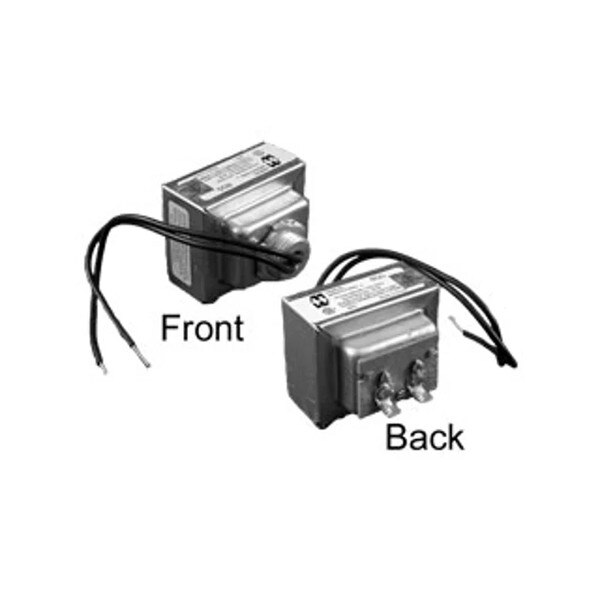

• Power input: 10 to 15 volts AC or DC / 150mA per station (A 10 volt class 2 "doorbell" transformer is recommended for fixed installations)
• Color: Black anodized, with silver engraved nomenclature
• Size :
  • Faceplate: 4.5"h X 4.6"w X 0.2"d
  • Faceplate rear inset: 4.15"h X 4.25"w X 0.1"d
  • Electrical box minimum inside dimensions: 2.9"h X 3.5"w X 1.5"d
