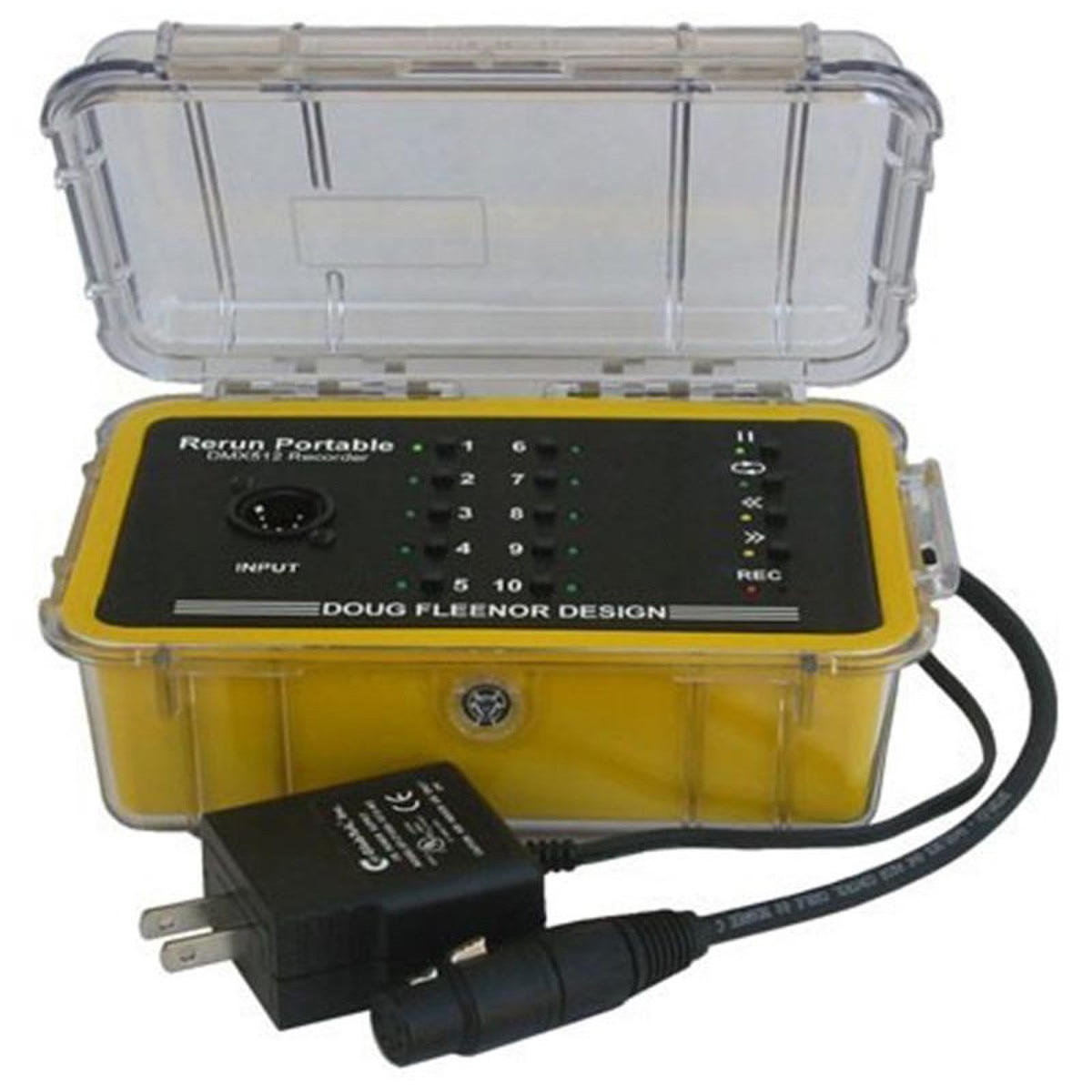

Doug Fleenor Rerun Portable
Details
The Rerun Portable is a lighting control station capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console. The recorded show start and end points may be trimmed non-destructively. Each show can be set to hold the last look, loop to itself or link to another show. Shows are started by pressing one of the ten show buttons.
Version 1.2 features
- Grand Master of show levels
- HTP merging of the DMX input
- Loss of DMX fade out or hold last look
- Show to show crossfade
- Button lockout
- End of show stop transmission
Specifications:
- Connector:
- DMX512 Input
- Gold plated 5 pin Neutrik
- DMX512 Output
- Gold plated 5 pin Neutrik
- 18" Dataplex Tail
- DMX512 Input
- Connector pin out:
- DMX512 Input
- 1 (C) DMX512 common
- 2 ( -) DMX512 data -
- 3 (+) DMX512 data +
- DMX512 Output
- 1 (C) DMX512 common
- 2 ( -) DMX512 data -
- 3 (+) DMX512 data +
- DMX512 Input
- Input circuit: ESD protected EIA-485 transceiver (LT1785)
- Output circuit: ESD protected EIA-485 transceiver (LT1785)
- Isolation: None. DMX input is not isolated from DMX output.
Indicators:
- Ten green SHOW LEDs
- One green PAUSE LED
- One green LOOP LED
- One yellow START LED
- One yellow END LED
- One red INPUT/RECORD LED
User controls:
- Ten [SHOW] buttons
- One [PAUSE] button
- One [LOOP] button
- One [REWIND] button
- One [FORWARD] button
- One recessed [RECORD] button
Option jumpers:
INSTALLED REMOVED
JP1 Recording enabled Recording/editing disabled
JP2 Run show on DMX512 loss Hold last look on DMX512 loss
JP3 Normal operation Run hardware test
JP4 Normal operation Disable operation
JP5 Unused Unused
JP6 Normal operation Erase Memory (DANGER!)
- Power input: Attached universal power supply 100 - 240VAC, 50/60 hertz, 5 watts
- Color:
- Case: Clear with yellow liner
- Keyboard: Black anodized with white silk screened nomenclature
- Size (W x D x H): 7.50 x 5.06 x 3.12"
