Doug Fleenor Single-Port DMX/Ethernet Interface - Portable

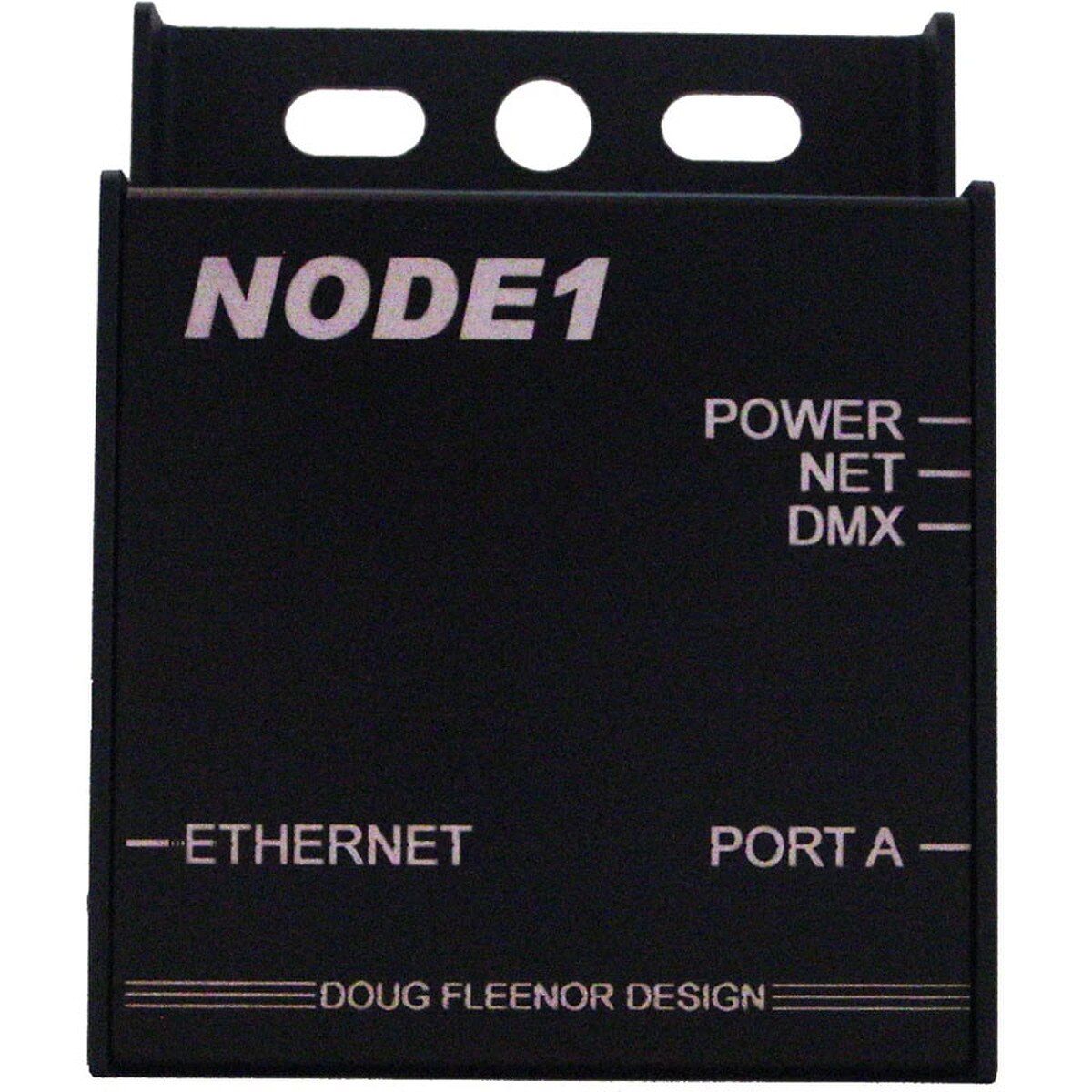

Node1 is a single gang wall mount Ethernet to DMX interface. It has zero boot time* and works with ArtNet (version 3 or prior), streaming ACN (aka sACN, ANSI E1.31, Net3), draft sACN (used by some ETC products), ShowNet (by Strand Lighting), and KiNet (by Color Kinetics). Configuration is done using a web ­browser (Internet Explorer, Safari, etc.). Node1 uses Power over Ethernet (PoE) technology so no power supply is needed at the Node1 end. Node1 requires only a single Ethernet cable for power and signal.

Node1, like all Doug Fleenor Design products, has a five year manufacturers warranty.

Node1 is supplied with either a female (output) or a male (input) DMX connector.

* zero boot time: Node1 becomes fully functional as soon as power is applied, unlike many ethernet interfaces that require substantial time to "boot­up".

Specifications:
Power input: Power over Ethernet, POE (802.11af), 3W
Color: Black
Size and weight:
Faceplate (H x W): 4.5 x 2.75”
Rear of the Unit (H x W x D): 2.75 x 1.6 x 1.7”
Weight: 0.5 lb
Min Box Size (H x W x D): 3.875 x 1.75 x 2.75”
Ethernet:
Ethernet circuit: 100BASE-TX Fast Ethernet, MDIX, and Auto Negotiation
Connector: RJ45
Isolation: 1500 Volts
DMX Port:
DMX circuit: EIA-485 transceiver with 120 ohm fail safe termination between +Data and -Data
NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections.
Input signal: 0.2 Volts minimum, 12 Volts maximum
Output signal: 1.5 Volts (minimum) into 120 Ohm Termination
Connectors: Gold plated 5 pin XLR (typically female connector, male on request)
Port protection: +60V continuous, +15KV transient
