Doug Fleenor Single-Port DMX/Ethernet Interface - Single Gang Architectural
Details

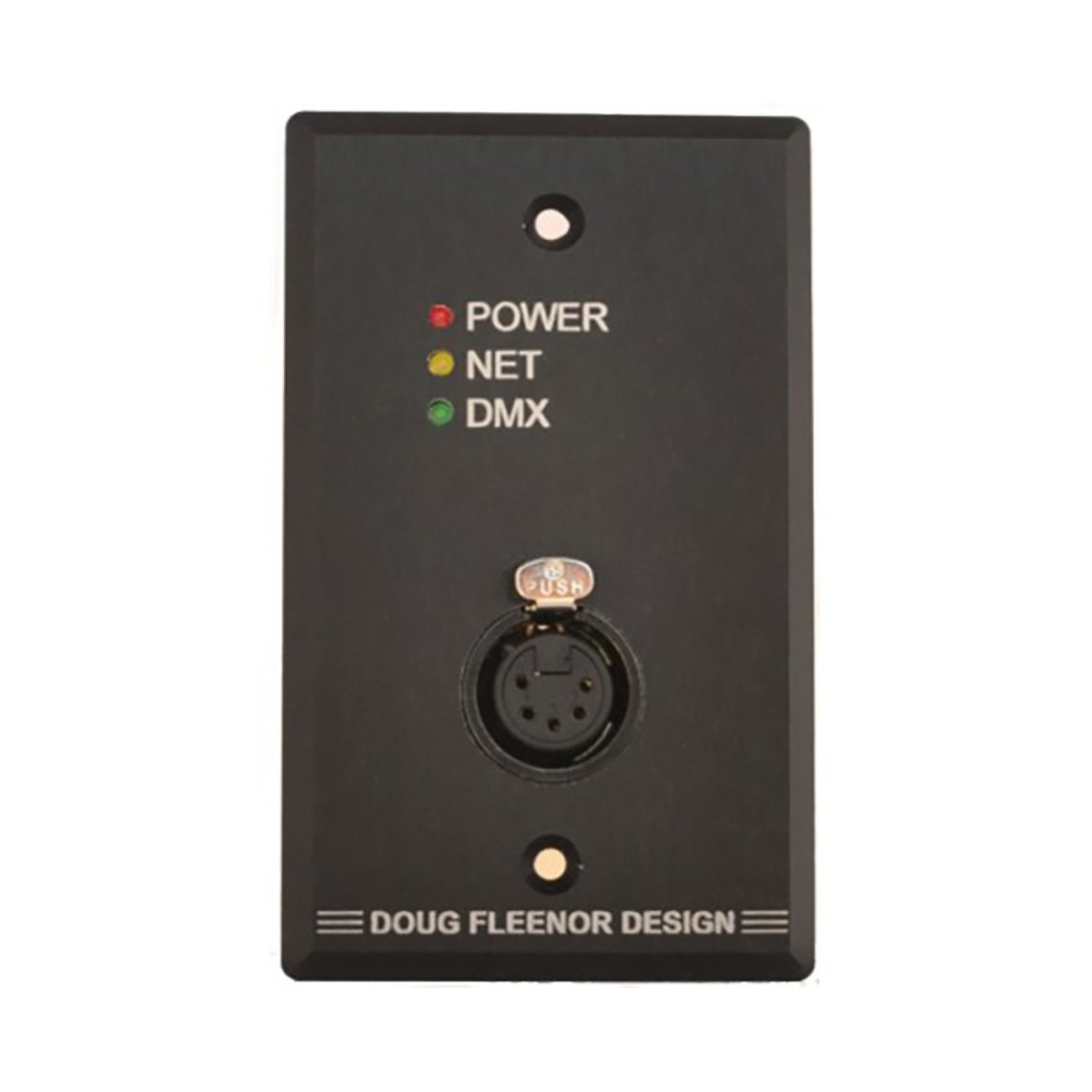

Node1 is a single gang wall mount Ethernet to DMX interface. It has zero boot time* and works with ArtNet (version 3 or prior), streaming ACN (aka sACN, ANSI E1.31, Net3), draft sACN (used by some ETC products), ShowNet (by Strand Lighting), and KiNet (by Color Kinetics). Configuration is done using a web browser (Internet Explorer, Safari, etc.). Node1 uses Power over Ethernet (PoE) technology so no power supply is needed at the Node1 end. Node1 requires only a single Ethernet cable for power and signal.
Node1, like all Doug Fleenor Design products, has a five year manufacturers warranty.
Node1 is supplied with either a female (output) or a male (input) DMX connector.
* zero boot time: Node1 becomes fully functional as soon as power is applied, unlike many ethernet interfaces that require substantial time to "bootup".
Specifications:
Node1, like all Doug Fleenor Design products, has a five year manufacturers warranty.
Node1 is supplied with either a female (output) or a male (input) DMX connector.
* zero boot time: Node1 becomes fully functional as soon as power is applied, unlike many ethernet interfaces that require substantial time to "bootup".
Specifications:
- Power input: Power over Ethernet, POE (802.11af), 3W
- Color: Black
- Size and weight:
- Faceplate (H x W): 4.5 x 2.75”
- Rear of the Unit (H x W x D): 2.75 x 1.6 x 1.7”
- Weight: 0.5 lb
- Min Box Size (H x W x D): 3.875 x 1.75 x 2.75”
- Ethernet:
- Ethernet circuit: 100BASE-TX Fast Ethernet, MDIX, and Auto Negotiation
- Connector: RJ45
- Isolation: 1500 Volts
- DMX Port:
- DMX circuit: EIA-485 transceiver with 120 ohm fail safe termination between +Data and -Data
- NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections.
- Input signal: 0.2 Volts minimum, 12 Volts maximum
- Output signal: 1.5 Volts (minimum) into 120 Ohm Termination
- Connectors: Gold plated 5 pin XLR (typically female connector, male on request)
- Port protection: +60V continuous, +15KV transient
- DMX circuit: EIA-485 transceiver with 120 ohm fail safe termination between +Data and -Data
