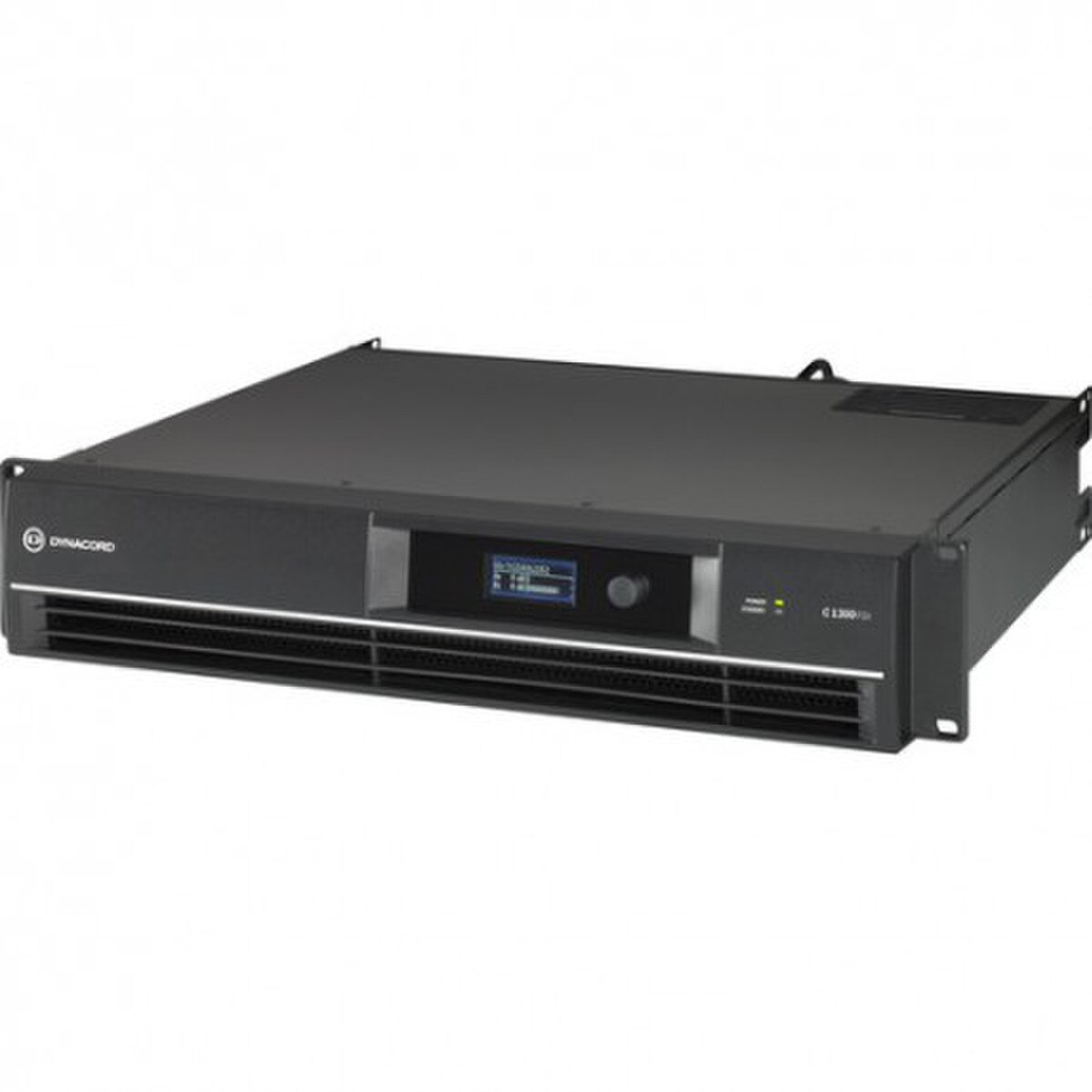

Dynacord DSP Power Amplifier 2x1800W - Install w/ FIR Drive and Phoenix Connectors

DYNACORD C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

Features:

• Installation DSP amplifier, Euroblock connectors
• Fully integrated professional speaker processing with FIR Drive technology
• Professional acoustic performance and rock-solid reliability
• Low-Z and 70/100V operation and power saving standby mode
• Powerful and proven audio performance
• Engineered for constant stability at 2 Ohms
• Low- and high-impedance outputs and remote GPIO control
• Highly efficient standby power mode reduces running costs and power consumption up to 90%
• Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
• High-performance bulletproof voltage handling
• On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ
• Intuitive, powerful control software makes configuration and real-time control easy. Up to 16 amp channels can be controlled and monitored simultaneously
• Advanced FIR drive to optimize loudspeaker settings, providing premium features into an installation form factor
• Engineered in Germany

Specifications:

• Load Impedance 2 Ohms
  • 2.7 Ohms
  • 4 Ohms
  • 8 Ohms
• Maximum Output Power
  • Single Channel
    • 2 Ohms: 3200 W
    • 2.7 Ohms: 2700 W
    • 4 Ohms: 1800 W
    • 8 Ohms: 950 W
  • Dual Channel
    • 2 Ohms: 3000 W
    • 2.7 Ohms: 2500 W
    • 4 Ohms: 1700 W
    • 8 Ohms: 900 W
    • High-Impedance 70 V: 2 x 1250 W
    • High-Impedance 100 V: 2 x 2500 W
  • Bridged
    • 4 Ohms: 6000 W
    • 8 Ohms: 3400 W
• Impedance
  • High-Impedance Operation: 70 V, 100 V
• Maximum RMS Voltage Swing
  • 90.6 V
• Voltage Gain
  • 32.0 dB (ref 1 kHz)
• IMD SMPTE
  • IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
• DIM 30
  • < 0.05% (3.15 kHz, 15 kHz)
• Maximum Input Level
  • +21 dBu
• Crosstalk
  • < -80 dB (ref. 1 kHz, at 100 W / 4 Ohms)
• Frequency Response
  • 10 Hz to 21 kHz (±1 dB)
• Input Impedance
  • 20 kOhms
• Signal-to-Noise Ratio (SNR)
  • > 109 dB (A-weighted)
• Output Noise
  • < -68 dBu (A-weighted)
• Total Harmonic Distortion
  • < 0.05% (at 1200 W / 4 Ohms MBW = 80 kHz, 1 kHz)
• Topology
  • Class-H
• Signal Processing
  • FIR filters
  • Audio limiters
  • Output delay per channel
  • 31-band GEQ per channel
  • PEQ per channel
  • Load impedance
• Protection
  • Audio limiters
  • High temperature
  • DC
  • HF
  • Back-EMF
  • Peak current limiter
  • Inrush current limiters
  • Turn on delay
• Cooling
  • Front-to-rear, 3-stage fans
• Safety Class
  • I
• Color
  • Black
• Operating Temperature
  • 40 to 105°F / 4 to 41°C
• Power
  • Power Requirement: 120 VAC, 60 Hz
  • Power Consumption: 850 W (1/8 maximum output power @ 4 Ohms)
  • Mains Fuse: T30AH
• Dimensions
  • (H x W x D) 3.5 x 19.0 x 18.2" / 88.9 x 482.6 x 462.3 mm
• Weight
  • 40.1 lb / 18.2 kg
