ENCORE FR PRO COLOR

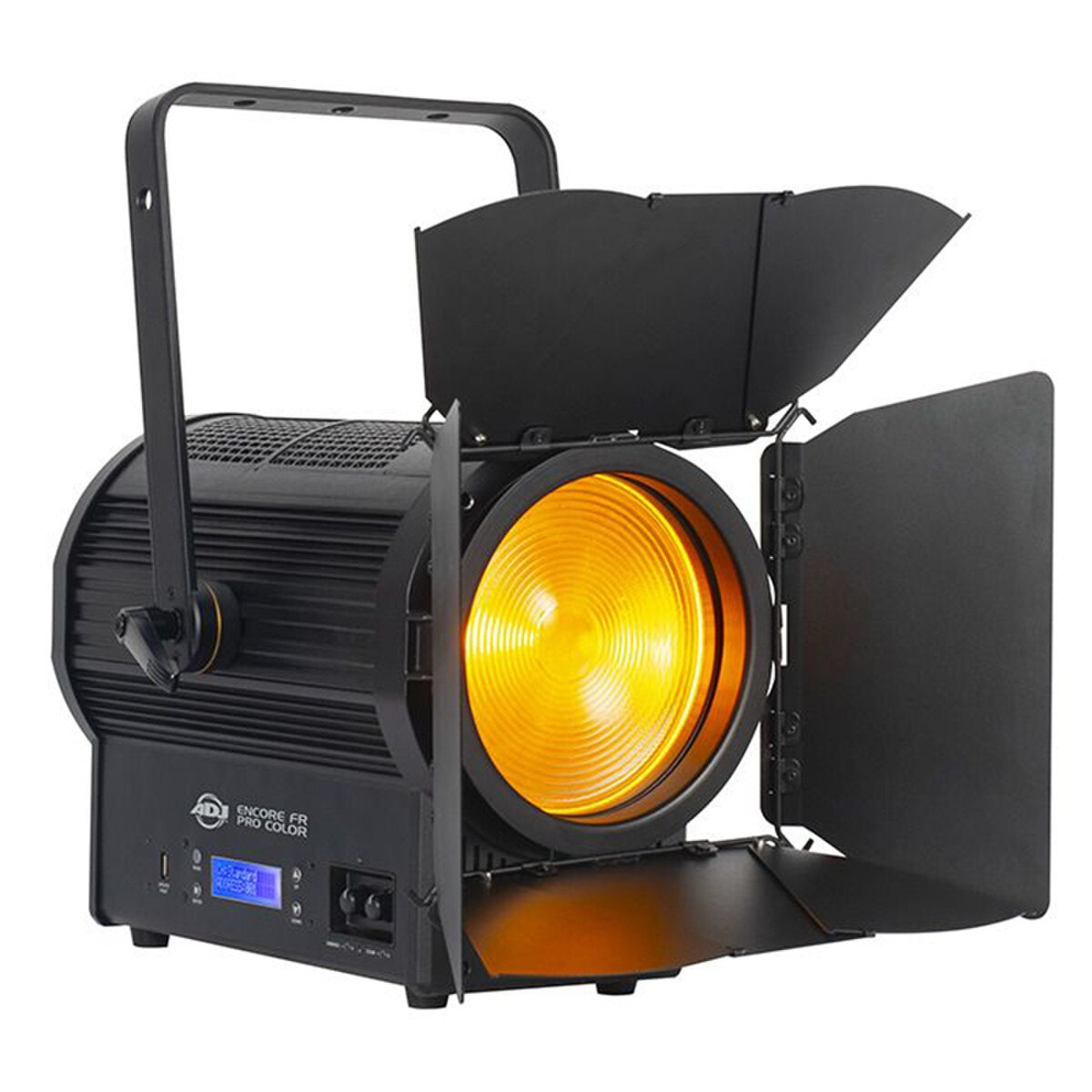

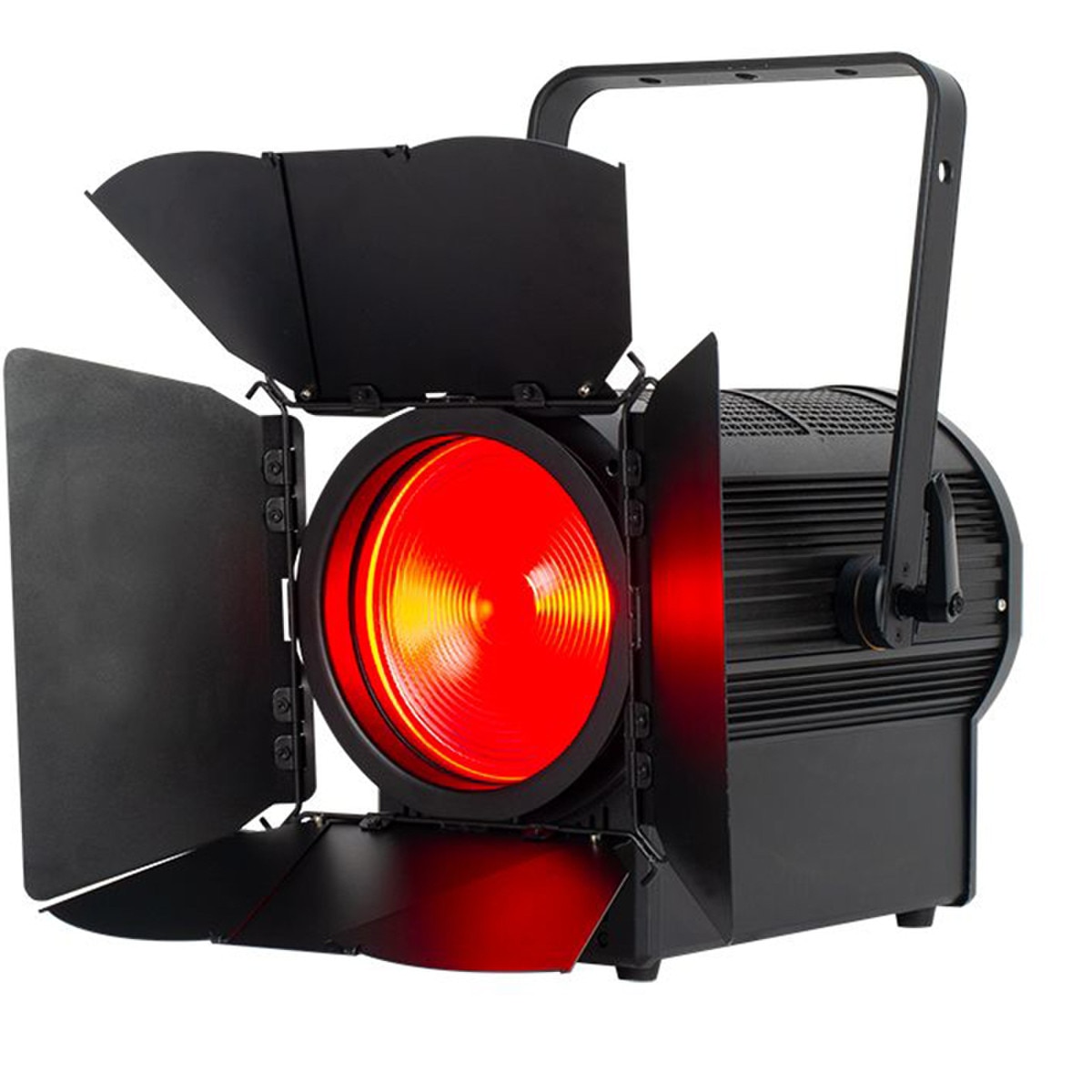

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.

The Encore FR Pro Color has a motorized zoom range of 9 ~ 37-degrees, a high CRI rating with an output of more than 11,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.

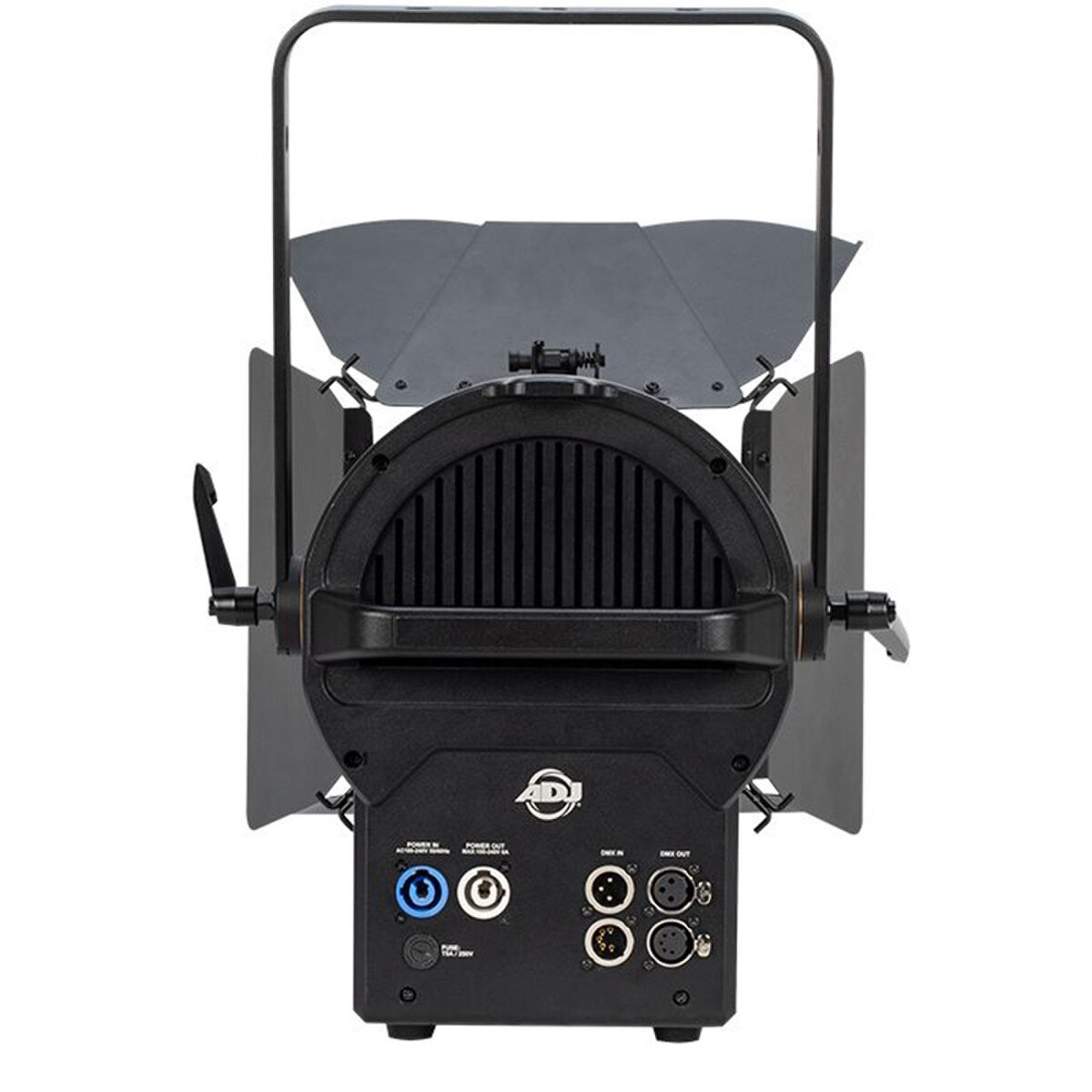

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

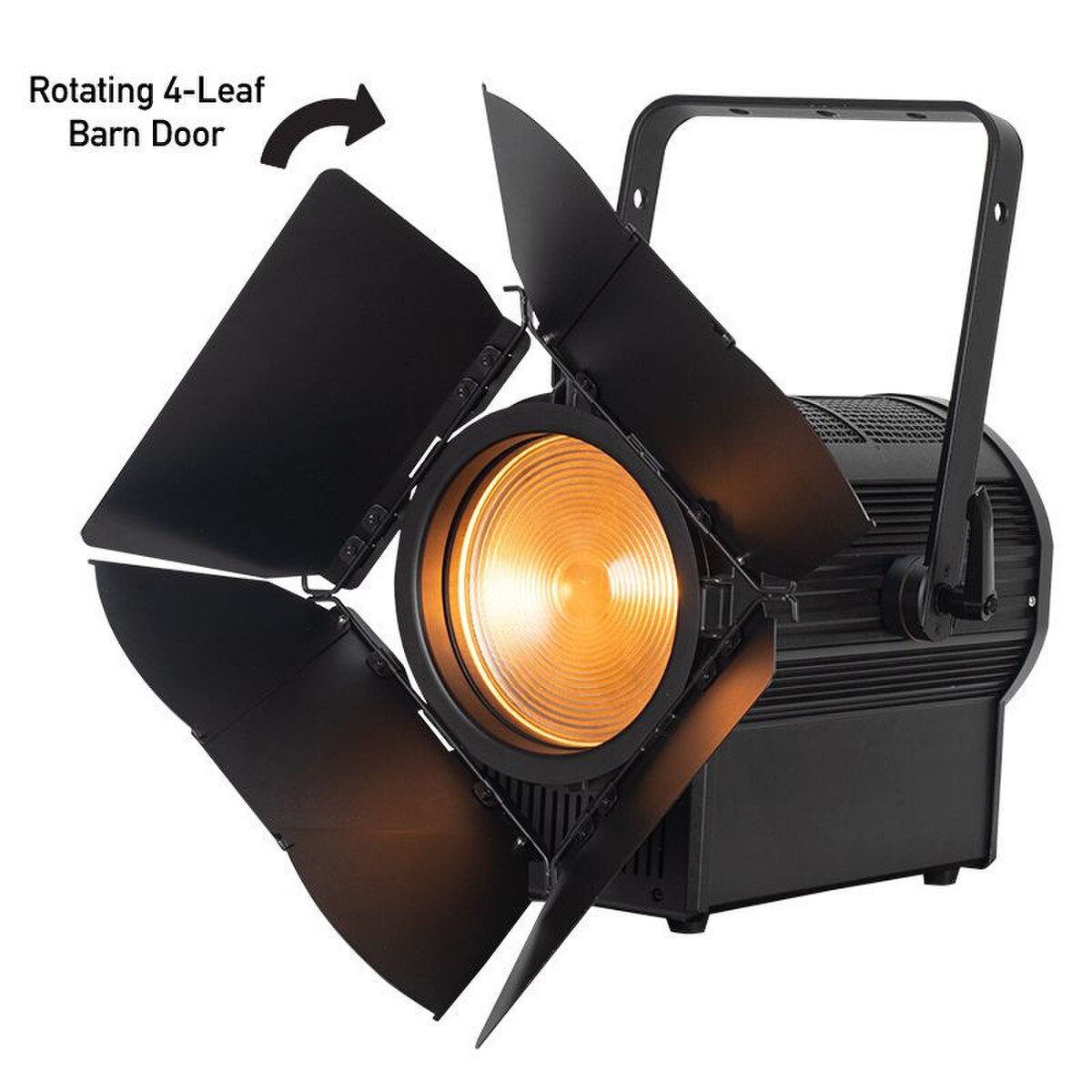

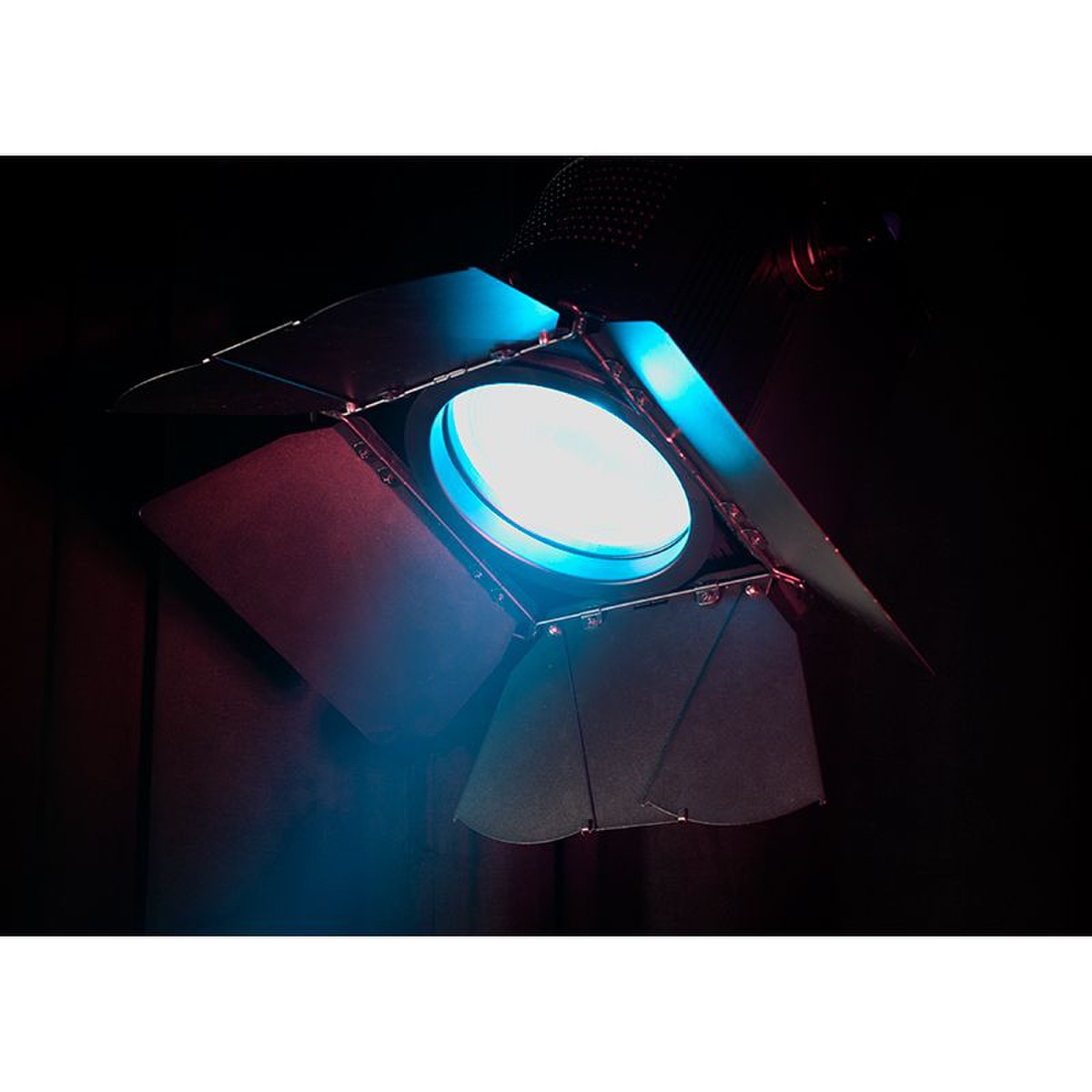

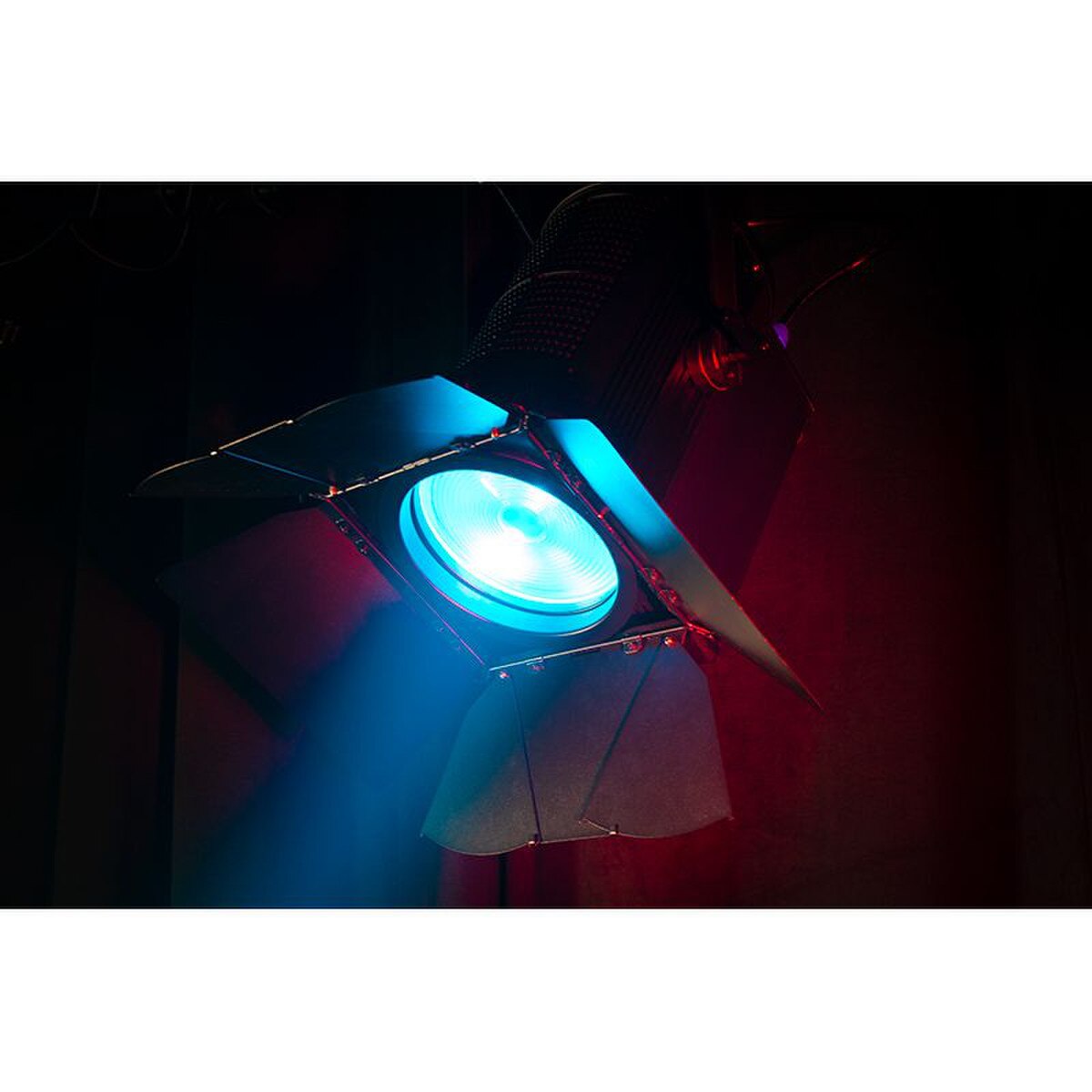

A rotating 4-leaf barn door, two safety cables and power cord are included with the fixture.

Specifications:
Source:

• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Lime and Cyan)
  50,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data:

• 9237 Total Lumen Output (Full ON, Zoomed Out to Full)
• 23,179 LUX 2,153 FC @6.6’ (2m) (Zoomed In / Full ON)
• 2,860 LUX 266 FC @6.6’ (2m) (Zoom Out / Full ON)
• Beam Angle: 9° to 37°
• Max Field Angle: 49.9°

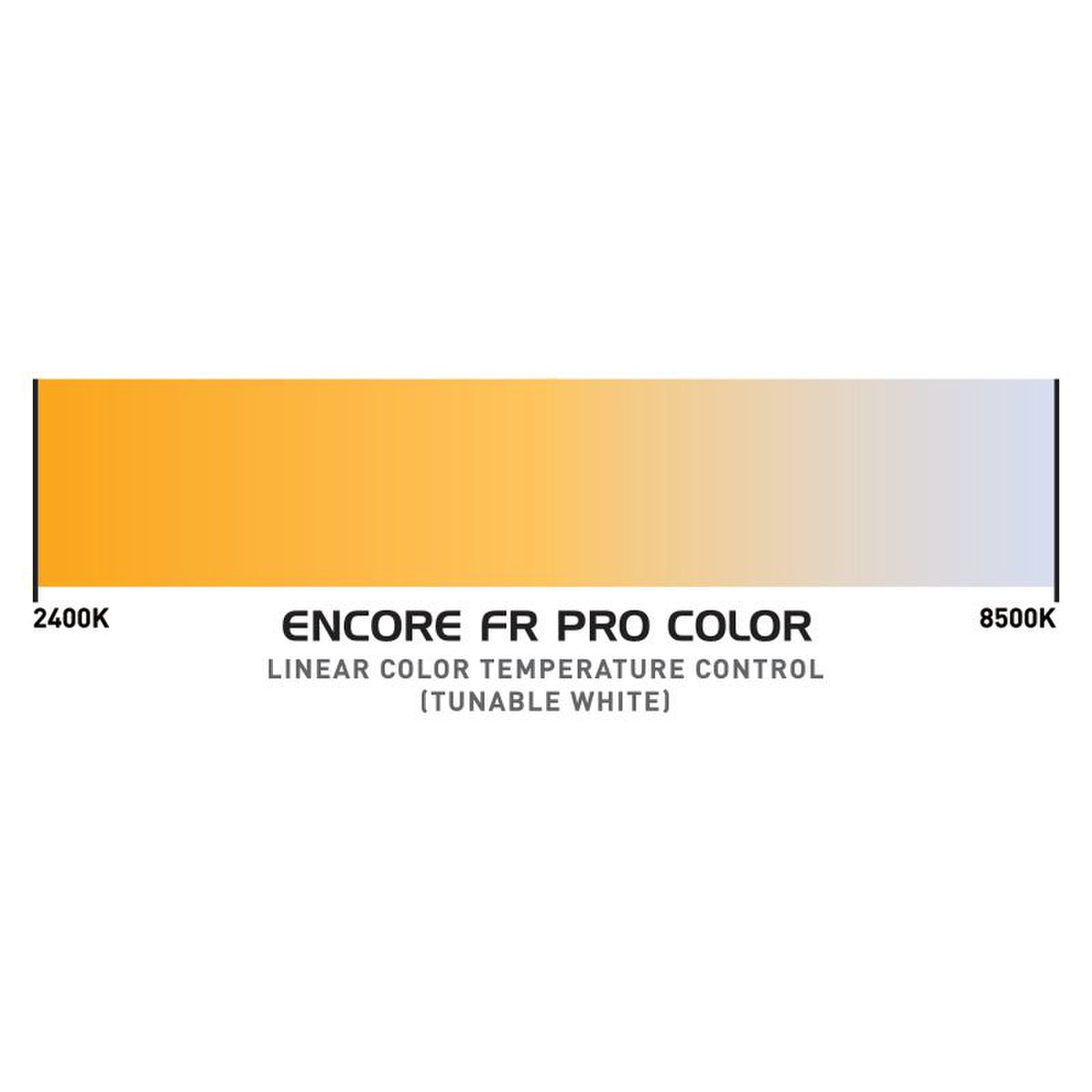

• Color Temperature: Tunable, 2400K to 8500K
• CRI: 94+

Effects:

• Motorized Zoom
• Electronic Dimmer and Strobe (1-20Hz)
• Variable 16-bit Dimming Modes and Curves
• Virtual CMY Color Mixing DMX Control Modes
• Tunable White Color Temperature from 2400K to 8500K

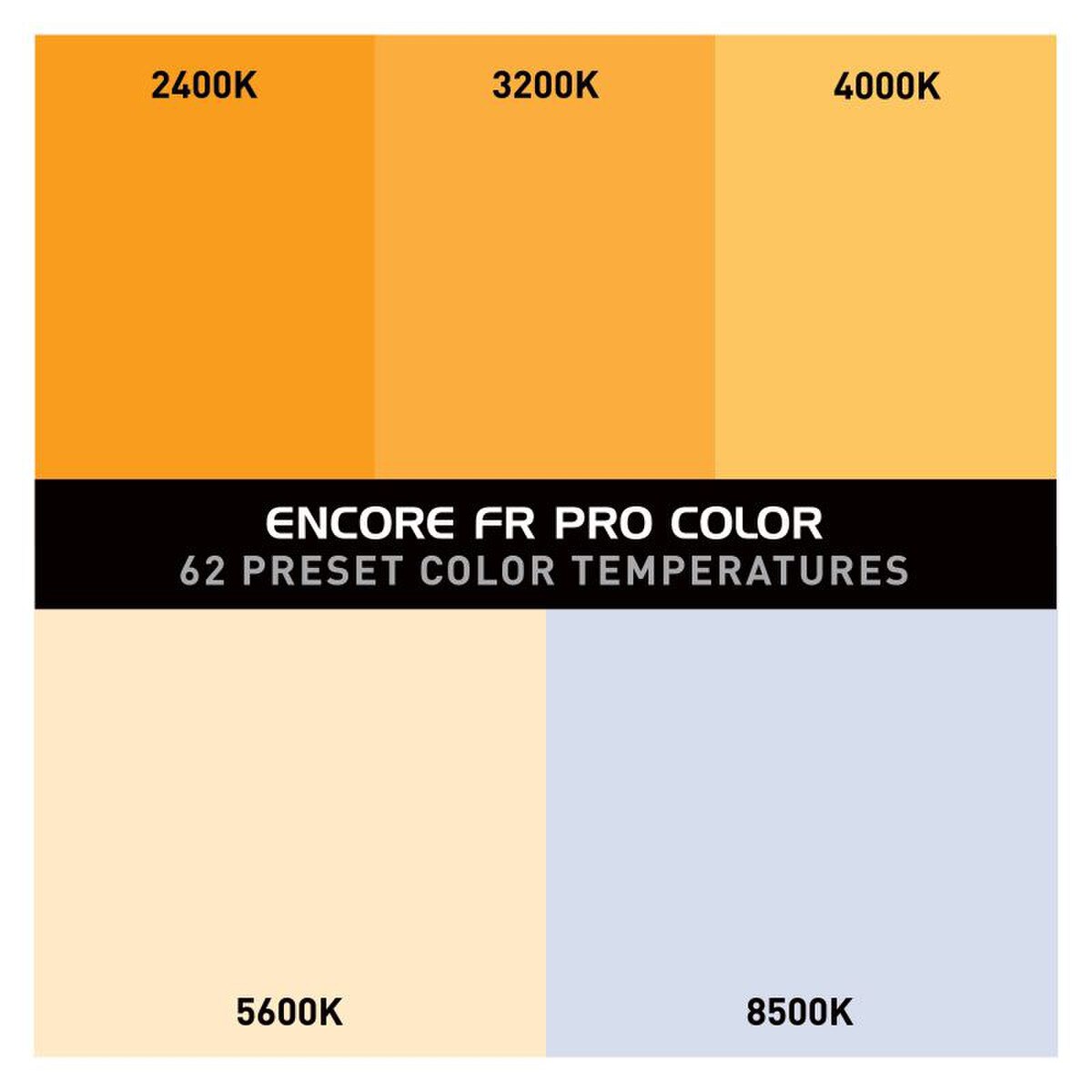

• 62 Preset White Color Temp Macros (2400K to 8500K)
• 60 Preset Colors on Virtual Color Wheel
• 64 Preset RGBA Color Macros

Control / Connections:

• Manual and DMX Controlled Dimmer and Shutter
• Dimmer and Zoom Rotary Dials
• (5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
• Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
• 6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
• Dim Speed Options (0.1s to 10s)
• 4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)

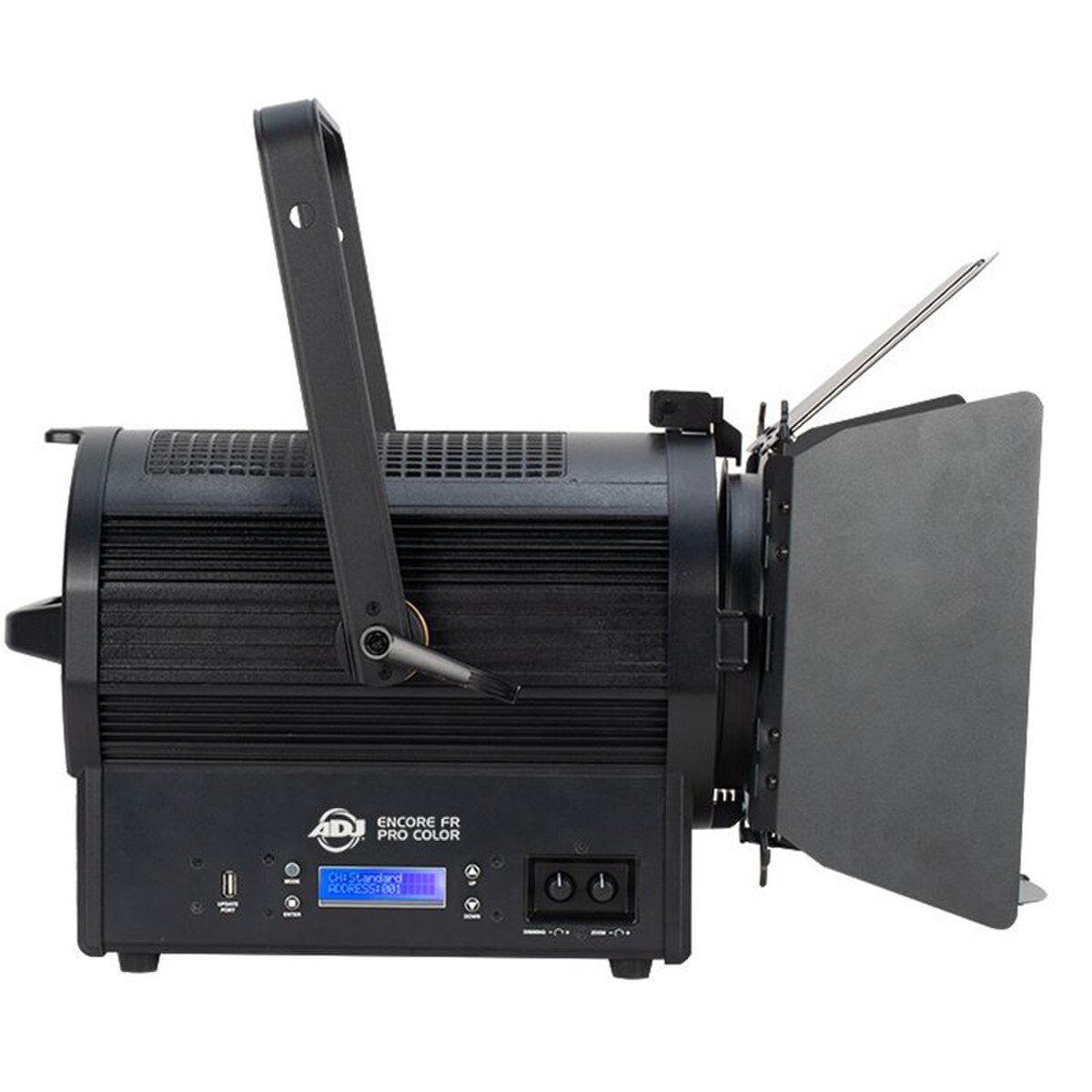

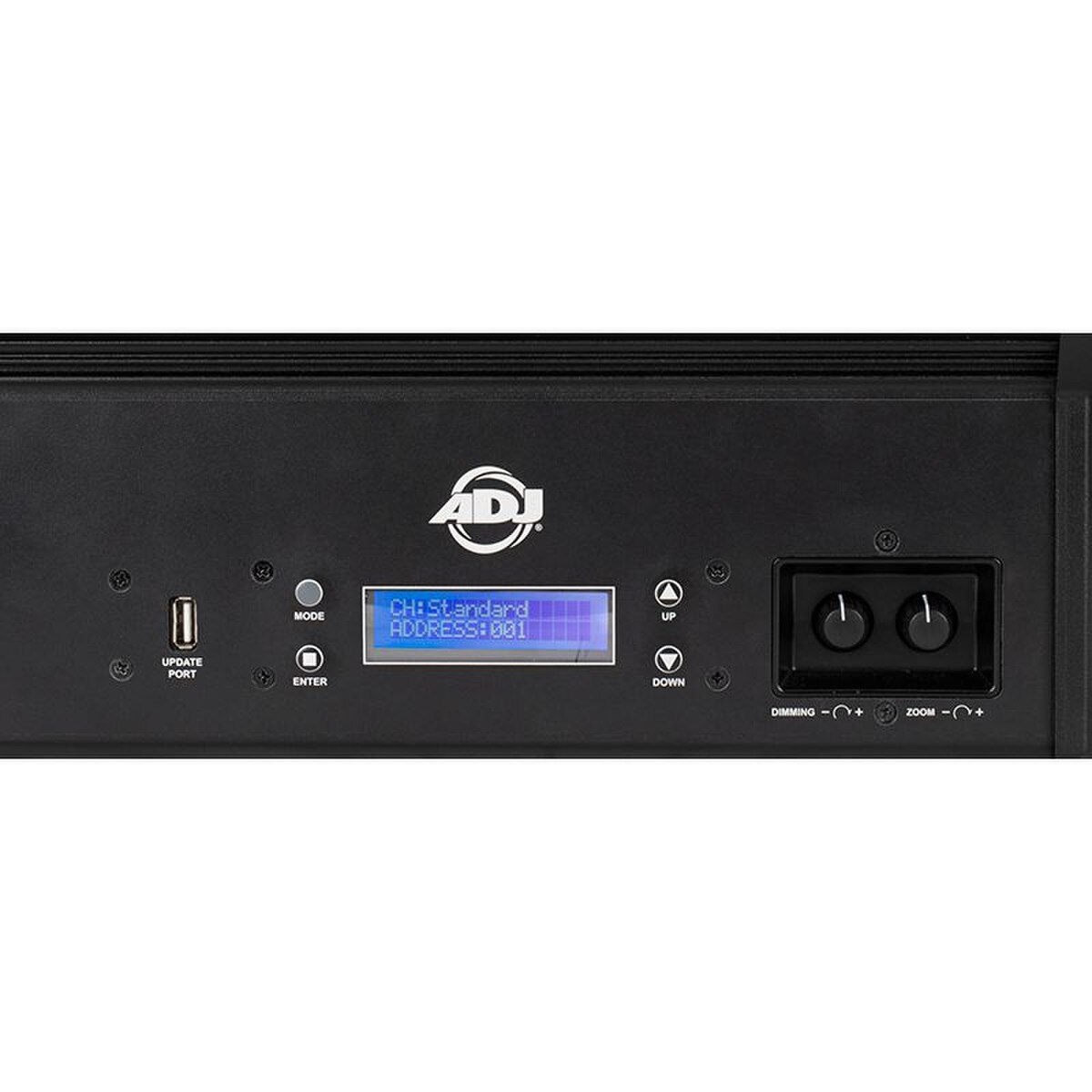

• 4 Button Control Panel LCD Menu Display
• RDM (Remote Device Management)
• 3/5pin DMX Input and Output
• Locking Power Input and Output
• USB Service Port
• With Wired Digital Communication Network

Size / Weight:

• Length: 16.6” (421.9mm)
• Width: 14.18” (360.1mm)
• Vertical Height: 19.29” (490mm)
• Weight: 21.8 lbs. (9.9kg)

Electrical / Thermal:

• AC 100-240V - 50/60Hz
• 420W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• Power Linking: 2Pcs @ 110V / 5Pcs @ 240V

Included Items:

• Barn Doors
• Locking Power Cable
• Two (2) Safety Cables

Approvals / Ratings:

• CE | cETLus (Pending) | IP20
