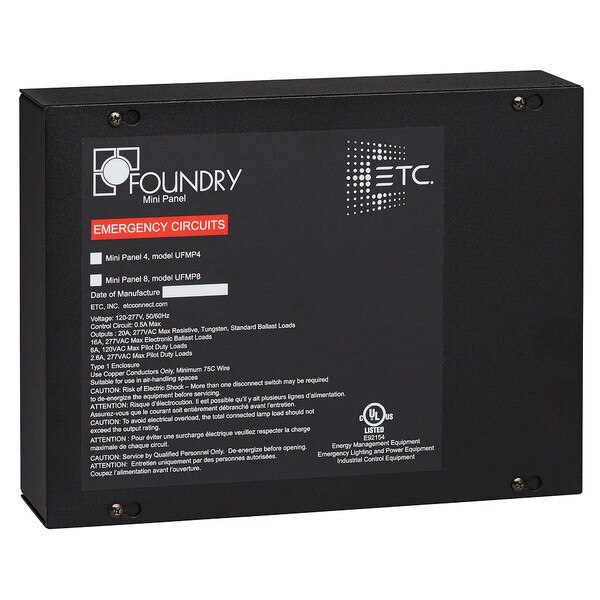

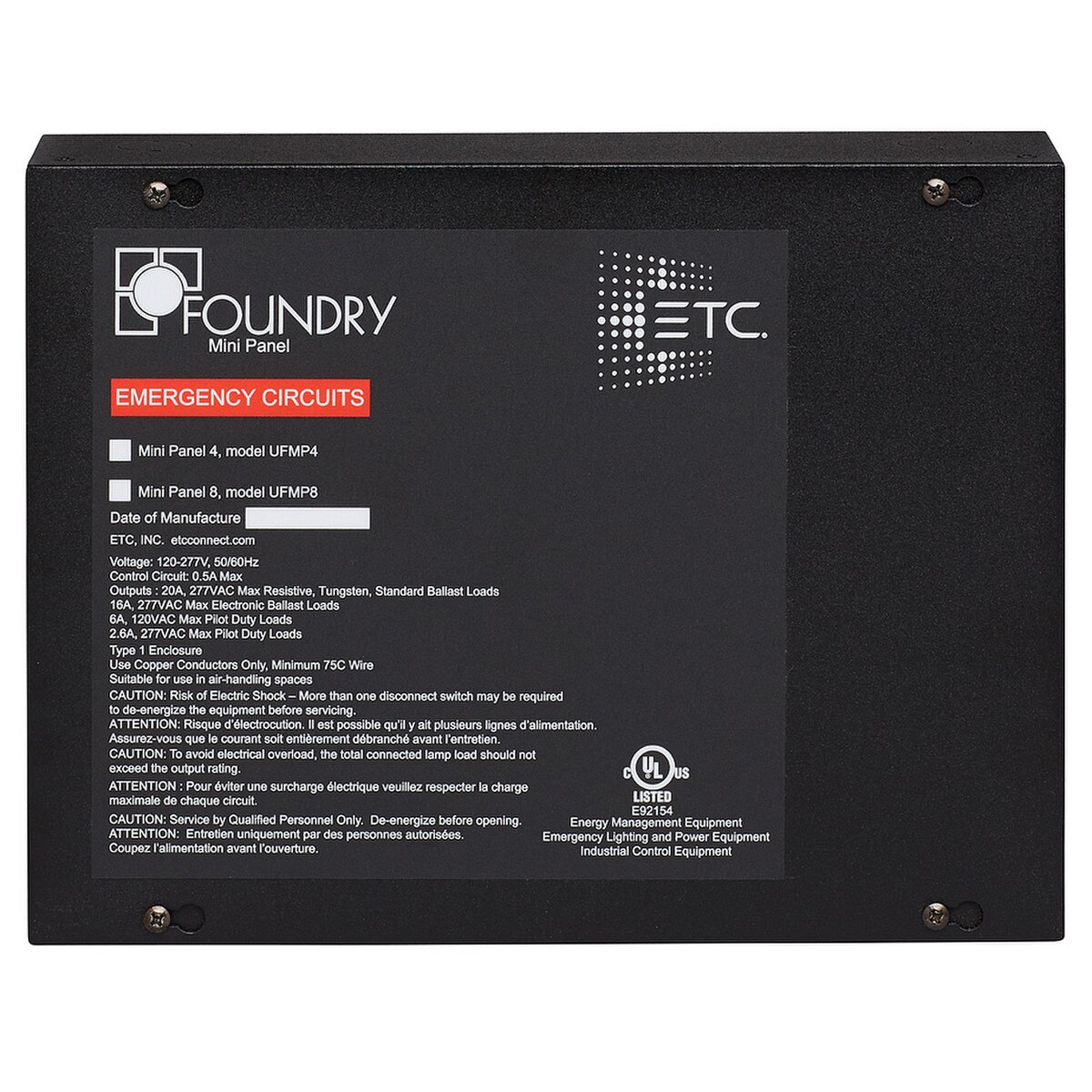

ETC 4 Zone DMX Mini Panel (UFMP4)
Details
We are not an authorized ETC dealer. Please contact manufacturer for warranty information.
DMX-controlled Unison Foundry™ products are the perfect partners for Unison Paradigm® and Mosaic® systems to create a complete, economical lighting control package. The Foundry Mini Panel takes 20A branch circuit input and provides four or eight switched power control outputs with fully-isolated 0-10V dimming per output.
The Foundry Mini Panel comes in two versions—a four input/four output or an eight input/eight output model—and each version can be configured in multiple ways. Each Mini Panel can be wired with discrete inputs for each output, just one input split to all outputs, or anything in between. With the capacity to support combinations of 120V, 277V, normal and emergency circuits in a single Mini Panel, Foundry offers outstanding flexibility in a compact, robust package.
Features:
- Available with 4 or 8 power control outputs
- Each output is paired with a fully isolated 0-10V control output
- Demand Response contact closure sets maximum output while active
- UL924 Listed for Emergency Lighting Control – sense feed circuit or dry contact force on emergency lighting loads and drive 0-10V control to full, while powering down normal loads if load shedding is configured
- Independent 120V, 277V, emergency, (more...)
