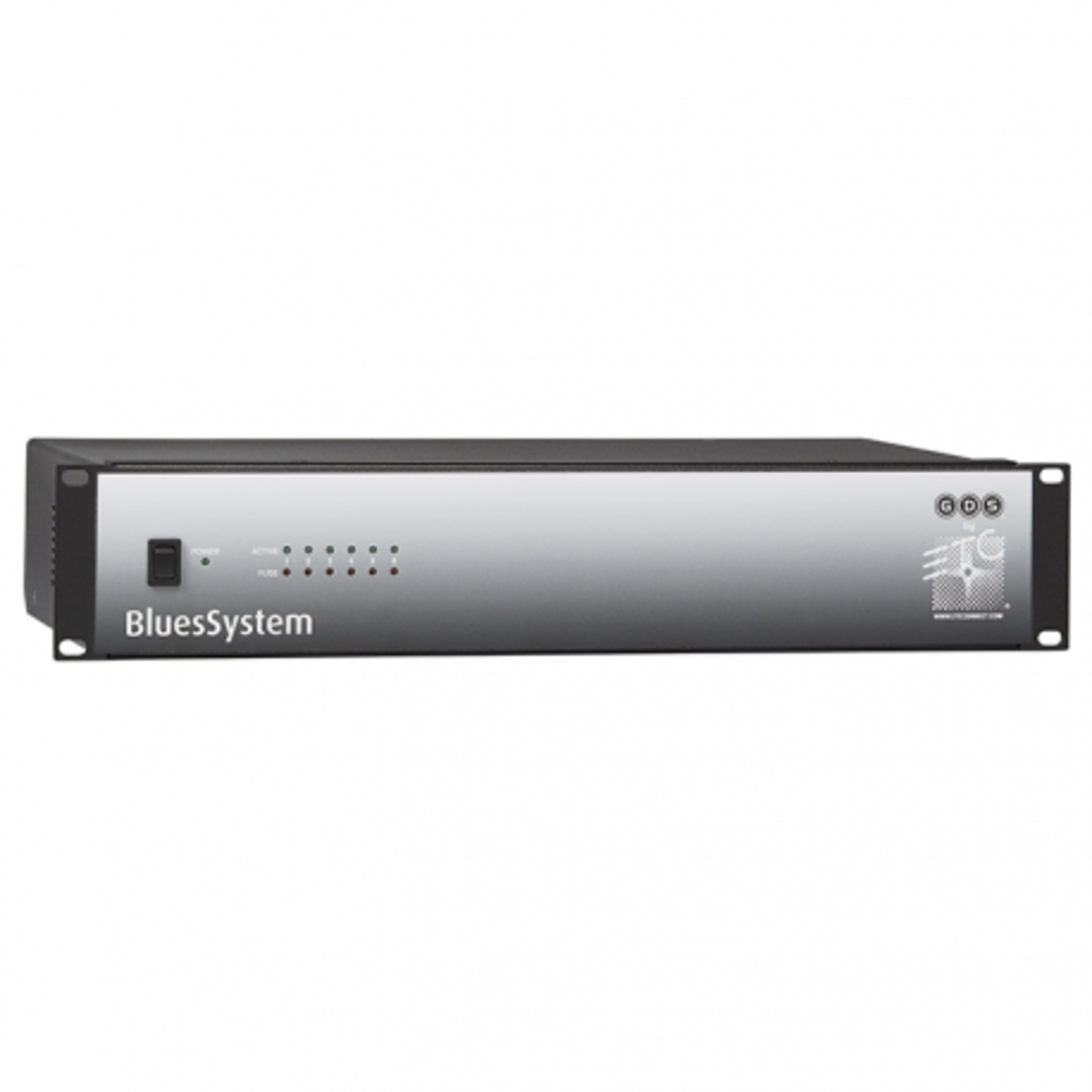

ETC 6 Zone DMX Controlled Input - Rack Mounted (BSPS6RD)

LV Power Supplies BluesSystem LV power supplies provide precision power and control for BlueBeam and BlueDome fixtures. Available in a one-zone and six-zone version (up to 10 luminaires per zone) with wall-mount and rack-mount options, BluesSystem LV power supplies allow for maximum flexibility when designing your venue.

Applications:

• For use with BluesSystem LV Fixtures

Features:

• Configurable options for minimum light level and DMX loss behavior
• One-zone version (up to 10 luminaires) available with:
  • Wall-mounting enclosure
  • Switched (dry contact) or DMX control input options
• Six-zone version (up to 60 luminaires) available with:
  • Wall- or rack-mounting enclosure
  • Switched (dry contact), 0-10 V Analog or DMX control
  • input options

General:

• Three-year warranty
• Ambient operating temperature 0–40° C / 32–104° F

Regulatory and Compliance:

• cETLus Listed
• Conforms to ANSI/UL STD. 2108
• Certified to CSA STD. C22.2 No. 250.0
• CE Compliant

Specifications:
Control:

• Each zone supports up to ten luminaires
• One-zone power supply available with switched (LV d(more...)
