ETC 8 Zone DMX Mini Panel (UFMP8)

(0)No Reviews yet
$900.00
SKU: ETC 7179A1008

Add this item to get free shipping! (Motor Freight Excluded)

Details

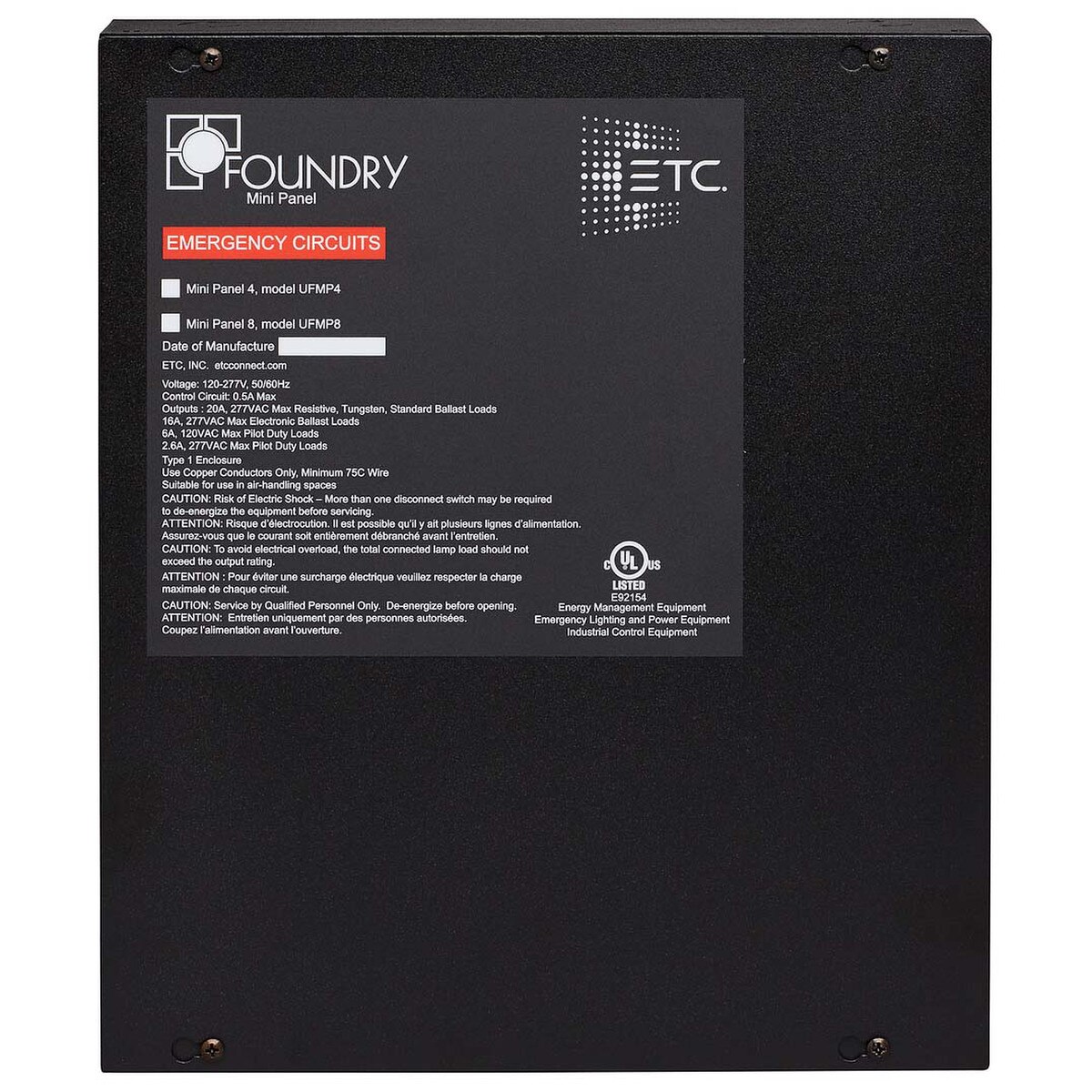

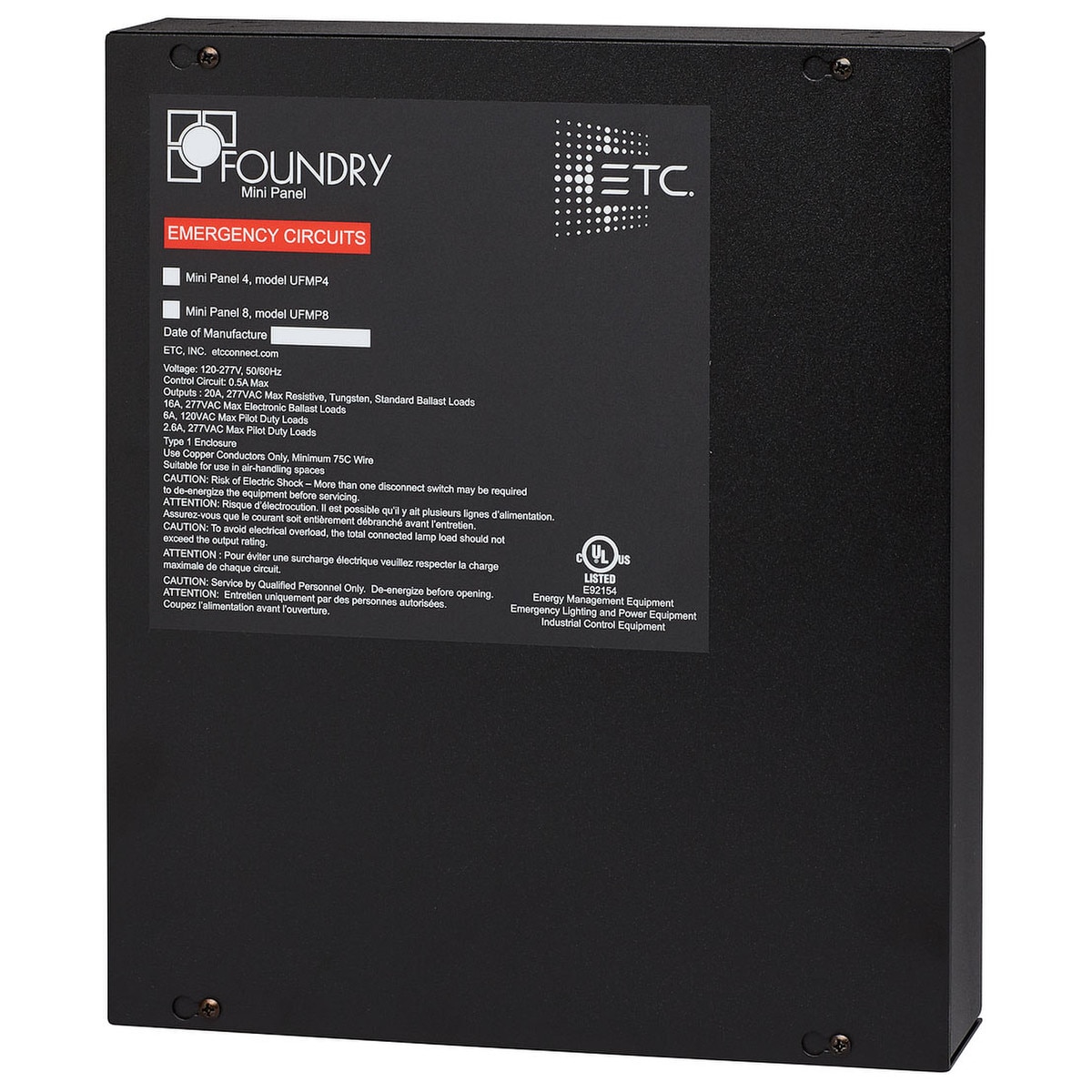

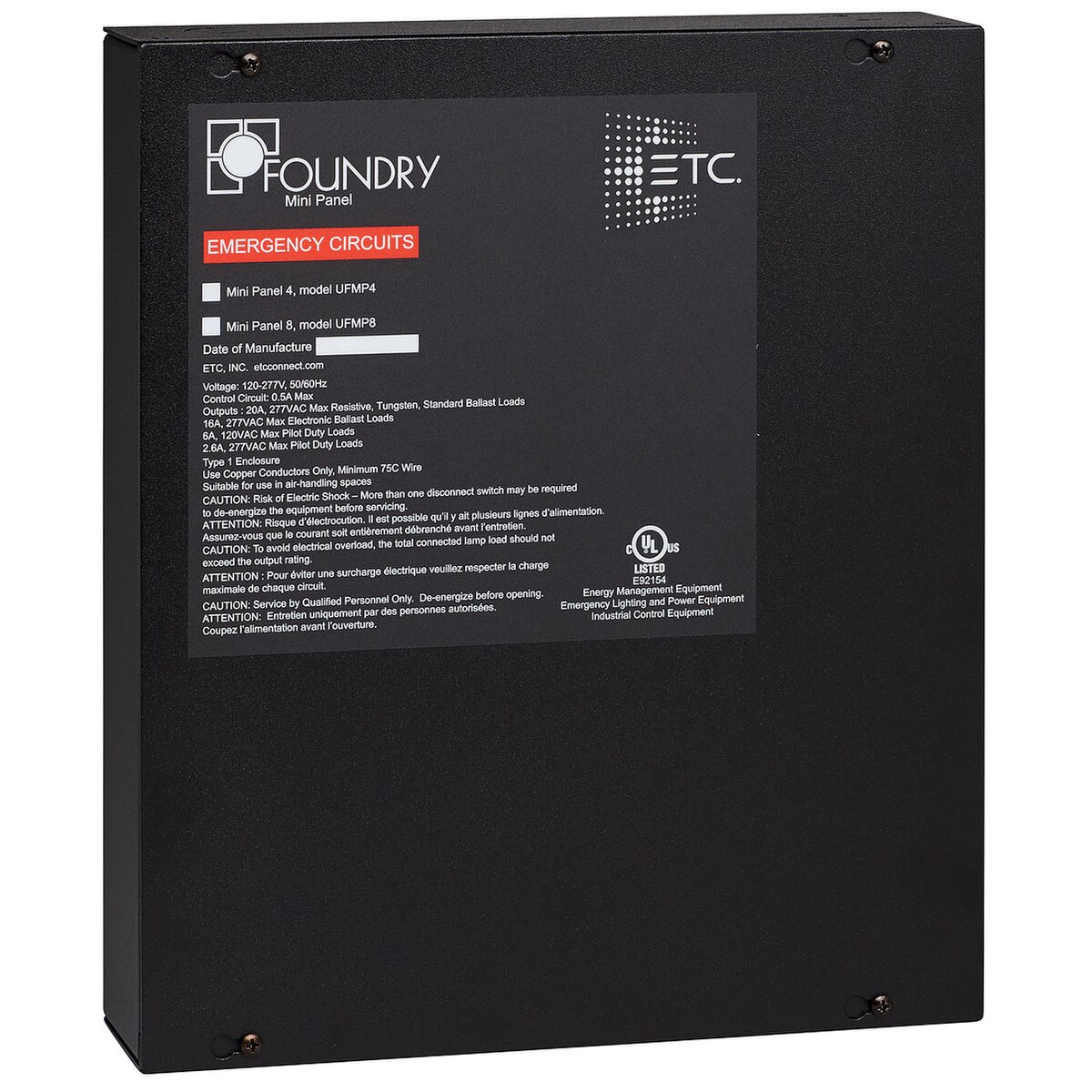

DMX-controlled Unison Foundry™ products are the perfect partners for Unison Paradigm® and Mosaic® systems to create a complete, economical lighting control package. The Foundry Mini Panel takes 20A branch circuit input and provides four or eight switched power control outputs with fully-isolated 0-10V dimming per output.

The Foundry Mini Panel comes in two versions—a four input/four output or an eight input/eight output model—and each version can be configured in multiple ways. Each Mini Panel can be wired with discrete inputs for each output, just one input split to all outputs, or anything in between. With the capacity to support combinations of 120V, 277V, normal and emergency circuits in a single Mini Panel, Foundry offers outstanding flexibility in a compact, robust package.

Features:

  • Available with 4 or 8 power control outputs
  • Each output is paired with a fully isolated 0-10V control output
  • Demand Response contact closure sets maximum output while active
  • UL924 Listed for Emergency Lighting Control – sense feed circuit or dry contact force on emergency lighting loads and drive 0-10V control to full, while powering down normal loads if load shedding is configured
  • Independent 120V, 277V, emergency, and plug-load control as needed

Specifications:
Functional:

  • Control for up to eight zones of switching for lighting and plug loads
  • Control for up to eight zones of 0-10V dimming for LED drivers and fluorescent ballasts
  • UL924 emergency-lighting control via contact closure and power loss sense feed terminal
  • Demand Response input provided by a power company can enforce a maximum level per circuit while active
  • Supports USITT DMX512-A (ANSI E1.11)
  • Supports RDM (ANSI E1.20)

Mechanical:

  • Constructed of 16-gauge cold-rolled steel, finished in fine-textured, black powder coat
  • Wall-mount installation; - rated for installation in plenum air space
  • Class-1 voltage barrier prevents access to line-voltage wiring with front panel removed
  • Optional voltage divider allows for separation of normal and emergency circuits in a single controller where allowed by local codes

Thermal:

  • Ambient room temperature: 0 to 50°C
  • Ambient humidity: 5 to 95% non-condensing

DMX Mini Panel Data Sheet
