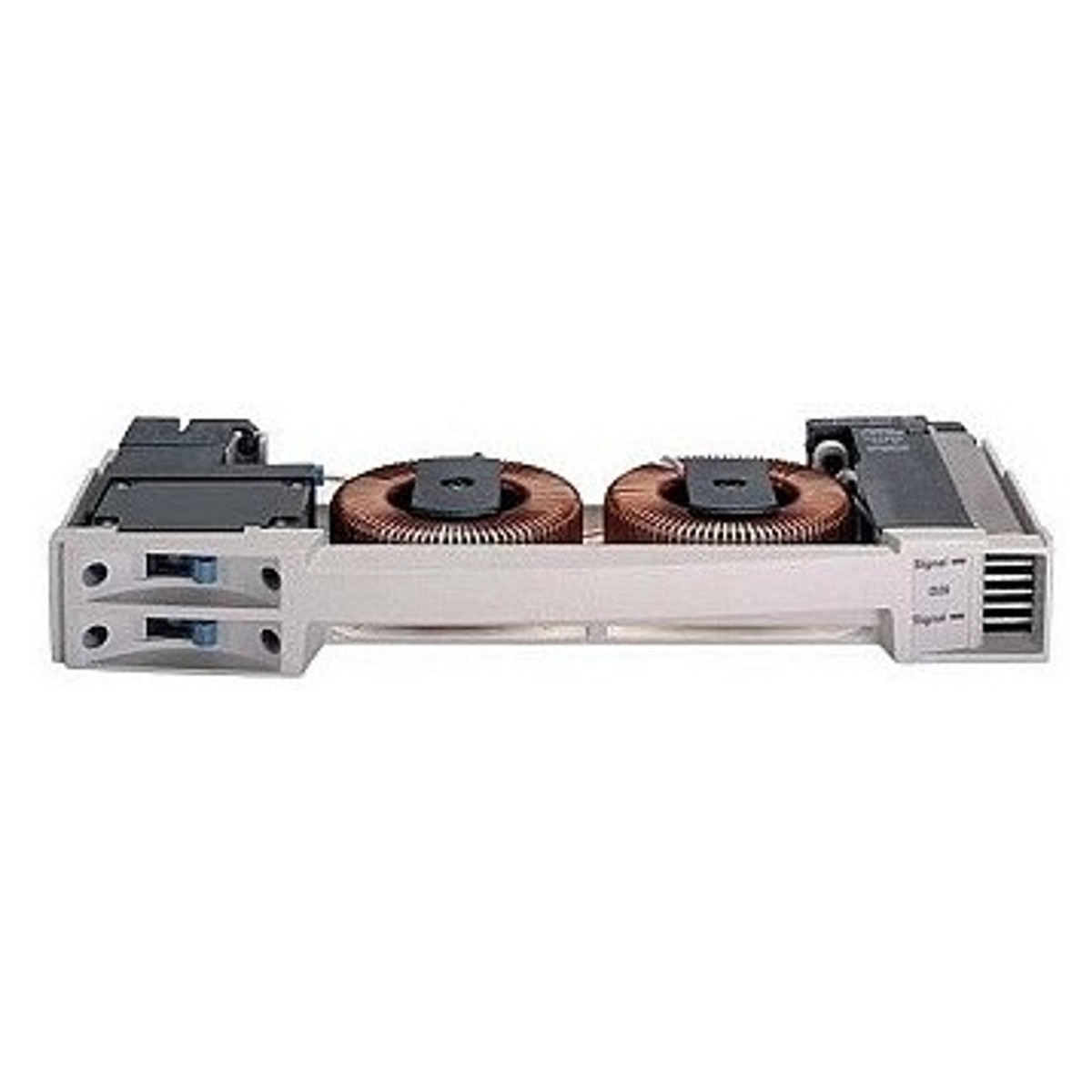

ETC Dual 20A Dimmer Module - 350µS (7050A1003)
Details
We are not an authorized ETC dealer. Please contact manufacturer for warranty information.
Unison Modules are hard at work in venues across the globe. Designed specifically for use in Unison DRd Series enclosures, these modules are heavy-duty, high-grade commercial dimmers. Each module uses fully-rated magnetic breakers and is UL-Listed for continuous duty at 20-Amp capacity.
Unison modules handle dimming silently, across a variety of loads. Unison lets you decide what fits your load requirements. Universal modules are available for incandescent, magnetic low-voltage, two- and four-wire fluorescent, neon, cold-cathode, or switched loads, or in specialized modules, such as, three-wire fluorescent, relay, or constant current. Reverse-phase (trailing edge) dimming of electronic transformer loads is available with the electronic low-voltage dimming module series, and it works on a module-by-module basis, in line with forward-phase (leading edge) dimming.
Features:
- Available to control incandescent, low-voltage, neon, cold-cathode, 2-, 3-, and 4-wire fluorescent loads
- 20A module at 120V
- Fully-rated magnetic breakers
- 350µs risetime
- Short Circuit Current Ratings up to 100,000A
