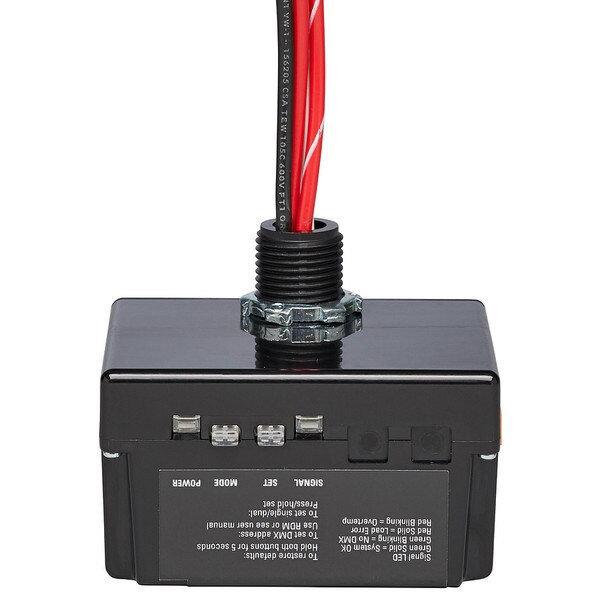

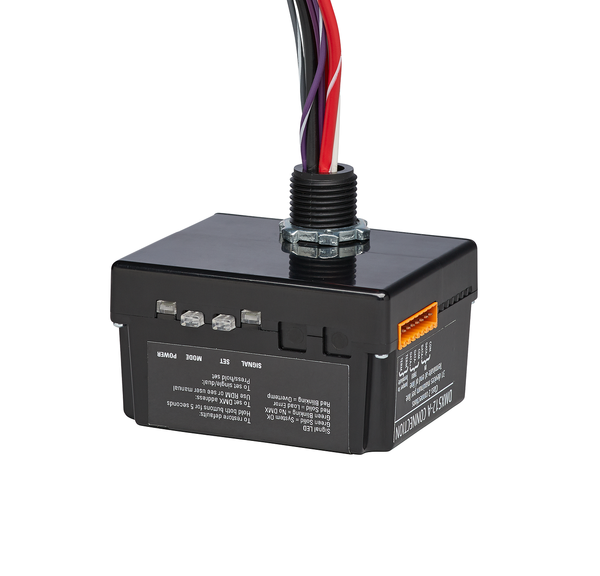

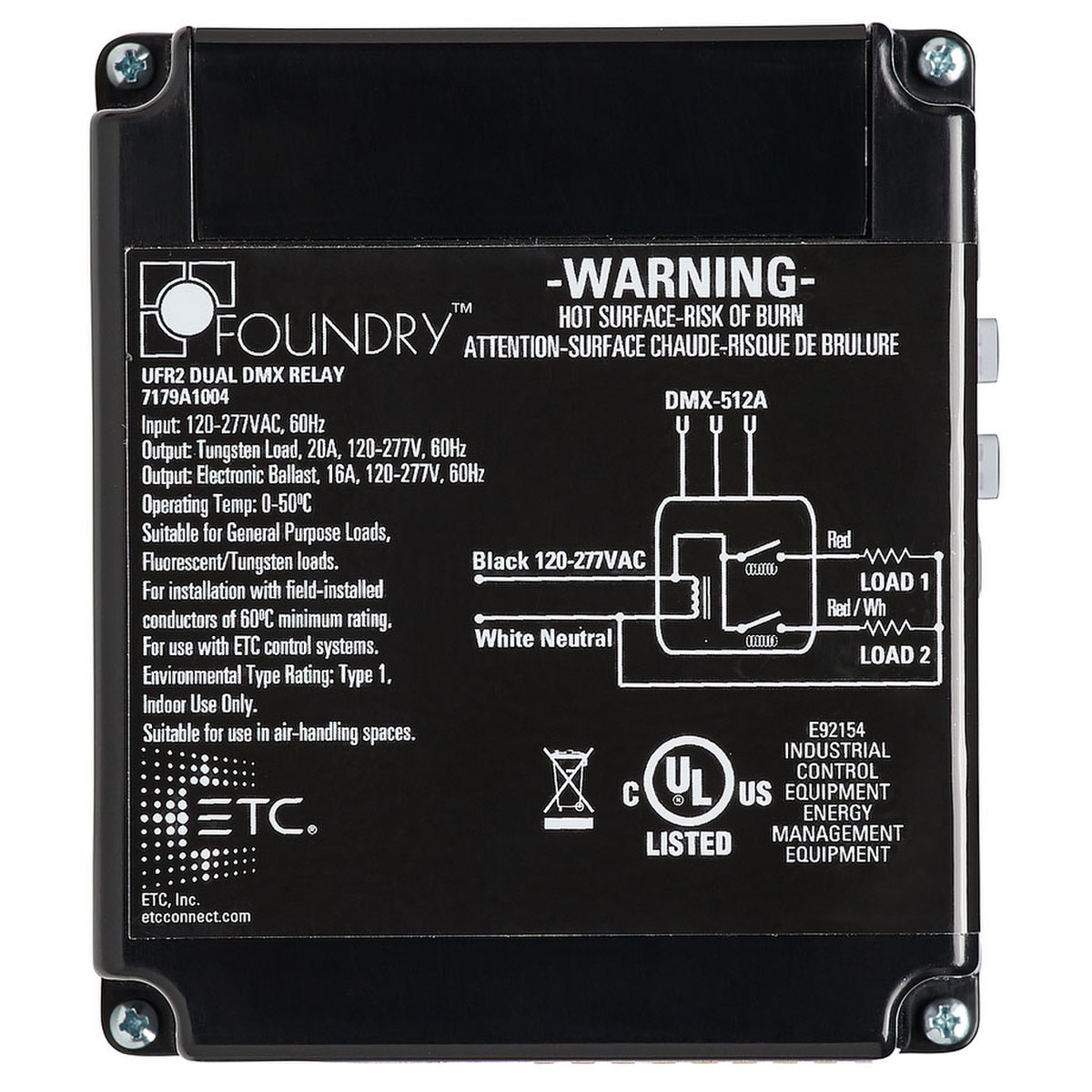

ETC Dual-Zone DMX Relay (UFR2)

Unison Foundry™ Relay Controllers offer seamless, reliable distributed power control for Unison Paradigm® and Mosaic® lighting control systems. The Foundry Relay Controller comes with two outputs rated for 20 amps total load of on/off control for all types of lighting fixtures and provides single- or dual-zone operating modes for added flexibility. It accepts DMX control in, and is configurable via RDM. Foundry Relay Controllers are also available with a fully isolated 0-10V control output, making them compatible with almost any low-voltage driver. With Foundry you can build a power infrastructure capable of handling todays LED and fluorescent fixtures – and whatever the future brings.

Features:

• Single- or dual- zone control of fully-rated relays for up to 20A total controlled load
• Available fully-isolated 0-10V control outputs for one or two zones
• DMX512A control input
• Remote configuration over RDM
• Local pushbutton configuration controls
• Plenum rated and designed for simple j-box installation

Specifications:
Functional:

• Control for individual fixtures, zone power
• Supports USITT DMX512-A (ANSI E1.11)
• Supports RDM (ANSI E1.20)

Mechanic(more...)
