ETC Element 2 Console - 1024 Outputs (ELEMENT 2 1K)

(0)No Reviews yet
$8,235.00
SKU: ETC 4331A1011-US

Add this item to get free shipping! (Motor Freight Excluded)

Details

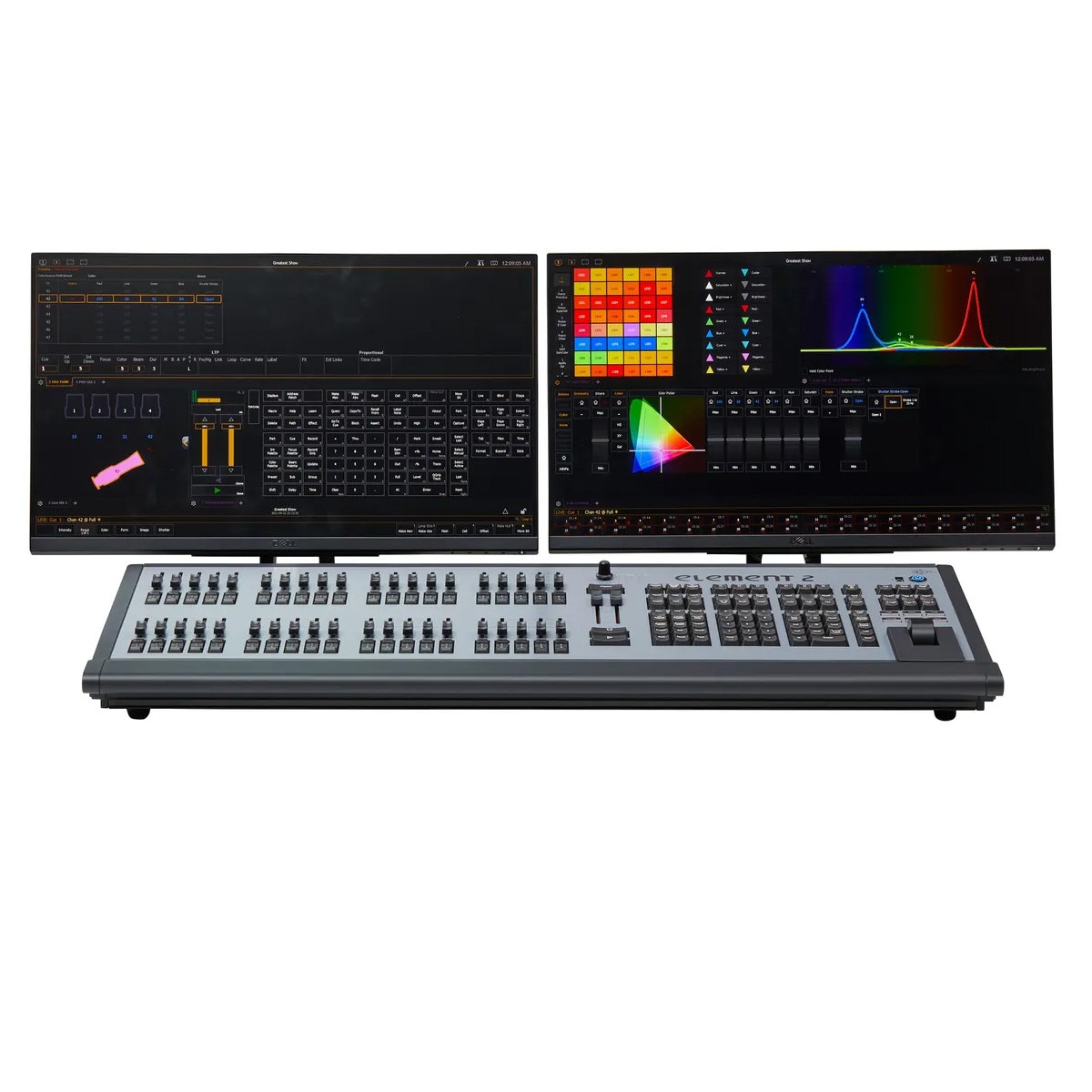

Affordable and easy to use, the Element 2 console provides generous hands-on control for smaller rigs. Element streamlines your show file with a single cue list while allowing access to a wealth of advanced control features below the surface. Ideal for amateur and professional operators alike, Element 2 provides the experience of a classic fader-intensive lighting desk combined with the powerful Eos engine – including award-winning color tools and the Augment3d 3D-programming and visualization environment.

Easy hands-on control

  • 1K or 6K output
  • 40x 45mm faders for extensive hands-on control
  • Supports up to two multi-touch external monitors

System:

Element 2 can be expanded with other Eos Family components.

Backup:

Every show deserves peace of mind. Network the ETC Puck as backup to provide security to your system

Viewing:

With the ETCnomad software key, your designers, stage managers, and other production staff can monitor your lighting system through a networked PC or Mac.

Output:

Output DMX directly from the console, or connect Response Gateways to your sACN network to put data exactly where you need it.

Focus Remote:

Equip your phone or tablet with the Eos app to turn it into an Augment3d-reality-enabled focus remote for your console.

Classic control for modern spaces:

From student productions to broadcast studios to museum auditoriums to houses of worship to rep-plot performance venues, Element 2 gives you the hands-on control you need to handle your small rig with ease.

System Capacity:

  • 1,024 or 6,144 Outputs
  • 32,768 Control Channels (mapped to any number from 1 to 99,999)
  • 100,000 Cues
  • One Cue List
  • 999 Submasters
  • 100 Fader Pages
  • 4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
  • 10,000 Presets (all palette)
  • 10,000 Groups
  • 10,000 Effects (relative, absolute or step)
  • 99,999 Macros
  • 10,000 Snapshots
  • 10,000 Curves
  • 10,000 Color Paths
  • 99 discrete users
  • Partitioned control
  • Show import from Obsession, Express™, Expression®, Emphasis®, Congo®, Cobalt®, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
  • Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
  • Magic Sheets suite for customized user programming and displays
  • Virtual Media Server function for pixel-mapping effects, images, and animations
  • Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian, and Chinese (Simplified and Traditional)

Hardware/Interfaces:

  • Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
  • Forty 45mm standard faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
  • Dedicated fader paging knob, with backlit selection labels
  • Main Playback with two 45mm standard faders
  • On-Demand moving light and LED virtual encoders on connected display monitor
  • Dedicated high-resolution intensity level wheel
  • Eos keypad
  • Included USB keyboard
  • Solid-state hard drive
  • IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
  • Two individually configurable Gigabit Ethernet ports, RJ45 connectors
  • One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
  • Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
  • sACN and Art-Net network output protocols
  • Four DMX-512 / RDM 5-pin XLR ports
  • Contact closure triggers via D-Sub connector
  • USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
  • One Littlite XLR port
  • One Kensington lock port
  • Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

Physical:
Element 2:

  • Height: 4.36" (111mm)
  • Width: 34.17" (868mm)
  • Depth: 14.24" (362mm)
  • Weight: 16.00 lbs (7.26 kgs)

Element 2 in Shipping Container:

  • Height: 9.50" (241mm)
  • Width: 40.25" (1022mm)
  • Depth: 19.50" (495mm)
  • Weight: 20.40 lbs (9.25 kgs)

Element 2 in Flight Case:

  • Height: 8.34" (212mm)
  • Width: 45.12" (1146mm)
  • Depth: 19.45" (494mm)
  • Weight: 41.75 lbs (18.94 kgs)

Included:

  • One three-button scroll mouse and mousepad
  • Alpha-numeric keyboard
  • Locking regionalized IEC power cord
  • Two active display port to DVI adapters
  • Dust cover
  • Augment3d AR target kit



Element 2 Data Sheet
VectorworksAugment3dPlug-in_InstallationGuide_RevD.pdf
IonClassic_v3.0.0_OperationsManual_RevA.pdf
Gadget_II_Interface_v1.2.1_ReleaseNote_revA.pdf
Augment3d_QuickStartGuide_RevA.pdf
EosFamily_v3.1_CS_revA.pdf
EosFamily_v3.0.2_RelNote_RevB.pdf
Eos Family Custom Encoder Maps Quick Guide - Rev A.pdf
ElementClassic_v3.0.0_UserManual_RevA.pdf
