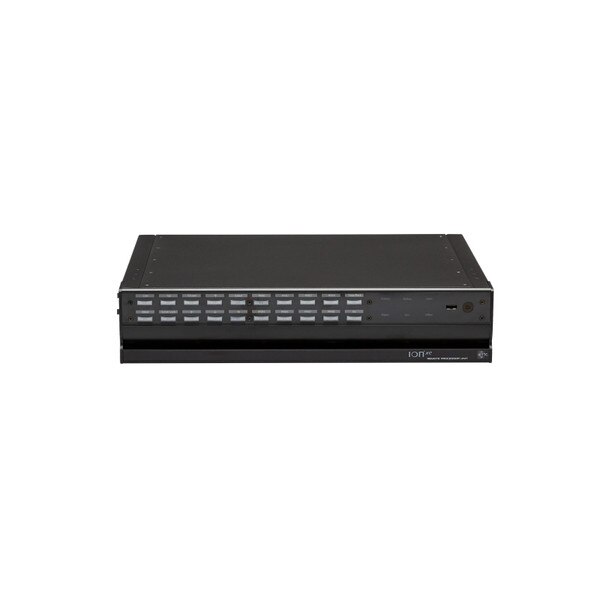

ETC ION XE Remote Processor Unit - 2048 Outputs (ION XE RPU 2K-US)
Details
We are not an authorized ETC dealer. Please contact manufacturer for warranty information.
An optional main/backup processor for the Ion® Xe control systems, the Ion Xe RPU can also be used as a stand-alone lighting playback controller.
Features:
- 2,048
- 32,768 control channels (any number from 1 to 99,999)
- Up to 99 Discrete Users
- Partitioned Control
- Access to all Ion Xe application programming functions
- 20 user-programmable front panel buttons
- Can be used in Primary, Backup, Client, or Offline Mode
- Six front panel LED status indicators
- 2U 19” Rack-mount enclosure
Interfaces:
- AC Input (100 – 240 VAC at 50/60Hz)
- Two individually configurable ethernet ports
- ETCNet2, Net3, Artnet and Avab UDP
- Two display-port connectors support external displays (1280x1024 minimum resolution) with optional single-touch or mutli-touch screen control
- Four DMX/RDM 512 ports
- Contact Closure triggers via D-Sub Connector
- Five multipurpose USB ports
- Radio Focus Remote (RFR)
- OSC Transmit/Receive
- UDP Transmit/Receive
- MIDI In/Out (MIDI timecode and show control) through gateway
- SMPTE Time Code through gateway
- Contact closure (12 analog intputs, 12 SPDT contact outputs, RS-232(more...)
