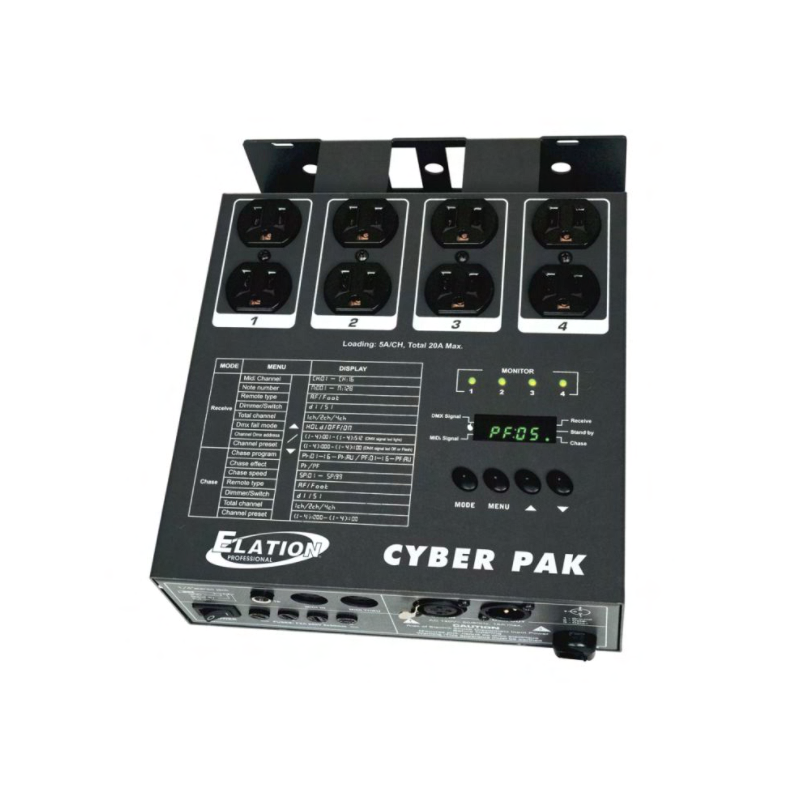

Elation CYBER PACK

The CYBER PAK is an all-in-one Dimmer/Power/MIDI Pack with multiple functions. This pack allows you to convert from a dimmer to a relay pack through the menu function.

Specifications:
DIMMER MODE:

• (4) Channel Dimmer (1, 2 or 4 Channel Option)
• Individual Channel Assignment & Output Limiter

RELAY MODE:

• (4) Channel Relay (1, 2 or 4 Channel Option)
• Individual Channel Assignment

CHASER MODE:

• (4) Channel Chase Controller
• 16 Internal Chase Programs
• Adjustable Fade Times

MIDI MODE:

• Receives MIDI Notes 001-128 Program
• MIDI In & MIDI Through Connections

CONTROL/CONNECTIONS

• (2) 3-prong Edison Sockets per Channel (8 total)
• 5pin MIDI IN/OUT Ports
• 3pin XLR IN/OUT Ports
• (4) Button LED Display Control Panel
• Master Power Switch

SIZE/WEIGHT

• Dimensions: 8.3”x10.4"x3.0" (212x265x75 mm)
• Weight: 8.0 lbs. (3.6kg)

ELECTRICAL/THERMAL

• AC 120V 50/60Hz 20A Max
• NOTE: Main Power Cord has NEMA 6-20P Connector
• 2,400W Max Power Consumption (600W per channel)

APPROVALS/RATINGS

• CE | cETLus
