Elation Arena Zoom Q7IP

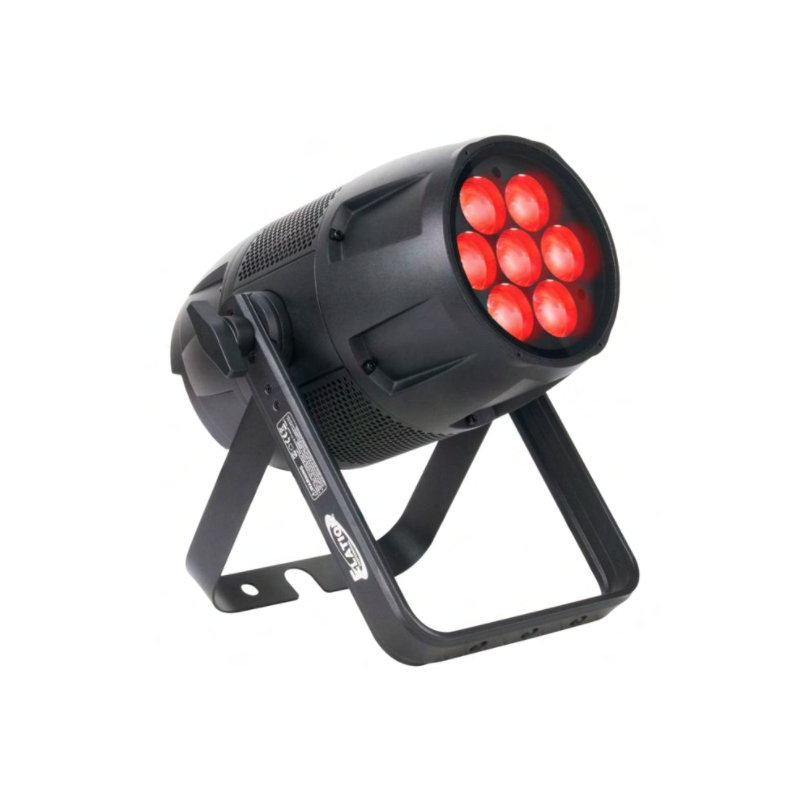

The ARENA ZOOM Q7IP™ an IP65 outdoor rated par fixture featuring (7) 30W Osram™ QUAD-Color RGBW LEDs, 7° to 40° motorized zoom, smooth color mixing, 38 color macros and variable speed macro effects, RGB white balance calibration, variable 3,200-10,000K color temperatures, selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (remote device management) protocol support, IP rated 5pin DMX and powerCON TRUE1 power in/out connections, 4 Button 180° Reversible OLED Menu Control Display, integrated dual rigging yoke/floor stand, a durable die-cast housing, multiple unit power linkable, and a multi-voltage universal auto switching power supply (100-240v).

Features:

• IP65 Outdoor Rated Par Wash Luminaire
• (7) 30W Osram™ Quad-Color RGBW LEDs
• 7° to 40° Motorized Zoom
• 38 Color Macros and Variable Speed Macro Effects
• Variable 3,200-10,000K Color Temperatures
• Selectable Dimming Curve Effects
• Adjustable LED Refresh Rate and Gamma Brightness
• Dual Rigging Yoke / Floor Strand
• Durable Die-Cast Housing

Specifications:
SOURCE

• 7x 30W Osram™ Quad-Color RGBW LEDs
• 30,000 Hour Average LED Life*
• *LED Life may vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

• 3,000+ Total Lumens

EFFECTS

• 7° - 40° Motorized Zoom
• 38 Color Macros and Variable Speed Macro Effects
• Variable 3,200-10,000K Color Temperatures
• Selectable Dimming Curve Effects

COLOR

• RGBW

CONTROL/CONNECTIONS

• (5) Multiple DMX Channel Modes (12 total channels)
• Adjustable Refresh Rate (600-28,800 (Hz)
• Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
• 4 Button 180° Reversible OLED Menu Control Display
• DMX and RDM Protocol Support
• IP Rated 5pin DMX In/Out
• powerCON TRUE1Power In/Out

SIZE/WEIGHT

• Length: 12.4” (316mm)
• Width: 9.6” (245mm)
• Vertical Height: 7.8” (197mm)
• Weight: 19.0 lbs. (8.6kg)

ELECTRICAL/THERMAL

• AC 100-240V - 50/60Hz
• 250W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)

APPROVALS/RATINGS

• CE | IP65
