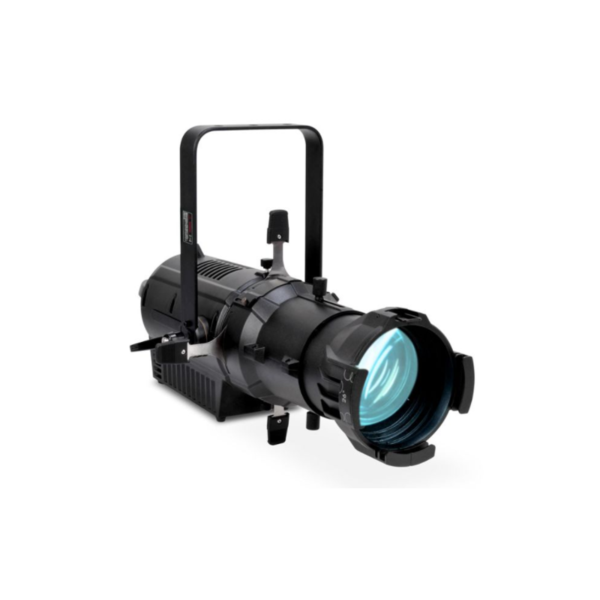

Elation CW Profile HP

The CW Profile HP ellipsoidal features a High Powered 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19, 36, and 50 interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM, 3/5pin DMX and powerCON TRUE1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Features

• High Power 130W Cool White 5,600K LED Engine
• >90CRI | 11,000+ Total Lumens
• Interchangeable Lens Options (not included)
• (4) Blade Manual Framing Shutters
• Supports B Size Metal or HT Transparency Gobos (not included)
• DMX Controlled Electronic Strobe and 16bit Dimming
• Selectable Dimming Curve Modes
• Flicker Free Operation for TV and FILM
• Adjustable LED Refresh Rate and Gamma Brightness
• Quiet Fan Cooling

Specifications:

SOURCE

• High Power LED Engine
• 50,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• >90CRI | 11,000+ Total Lumens

EFFECTS

• Electronic Strobe
• Variable Dimming Curve Modes

GOBOS

• Supports "B" Size Metal, HT Transparency Gobos**
• **Gobo Holder Not Included

CONTROL/CONNECTIONS

• 2 DMX Channel Modes (4 total channels)
• 4 Button Control Panel
• LED Menu Display
• 3/5pin DMX In/Out
• powerCON TRUE 1 In/Out

SIZE/WEIGHT

• Length: 24.3"x12.2"x15.7" (618x310x398 mm)
• Weight: 21.0 lbs. (9.5kg)

ELECTRICAL/THERMAL

• Quiet Fan Cooling
• AC 100-240V - 50-60Hz
• 160W Max Power Consumption

APPROVALS / RATINGS

• CE | cETLus | IP20
