Elation EP 2

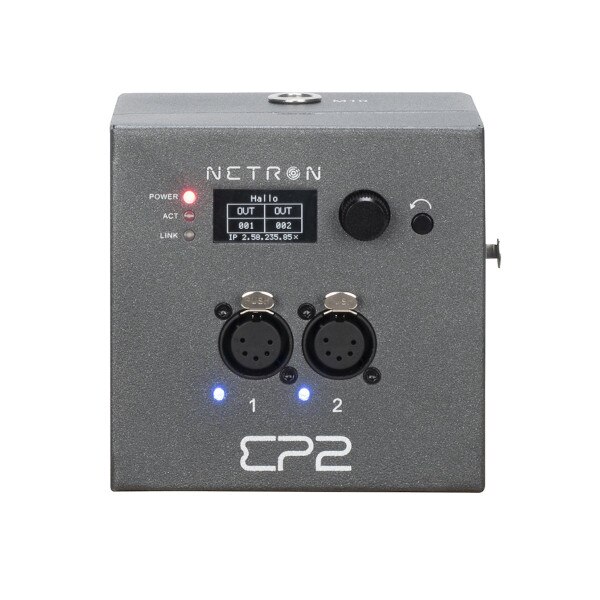

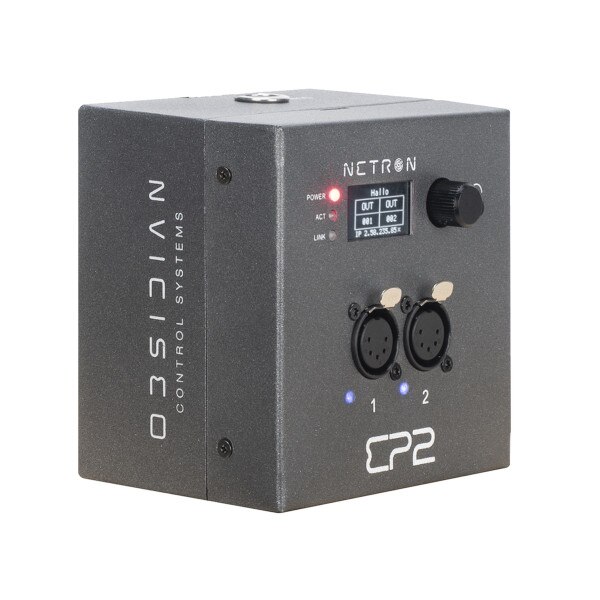

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.

It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.

Key Features:

• RDM, ArtNet and sACN support
• Factory and user presets for plug and play setups
• POE or USB-C powered
• 1.3” OLED Display with rotary knob
• Remote configuration via internal webpage
• Powder-coated compact metal housing
• Connect to ONYX PC for a full four Universe Solution
• In-wall, On-Wall, Truss and Standalone mounting
• Unlocks ONYX NOVA 4-Universe License

Specifications:
Mounting:

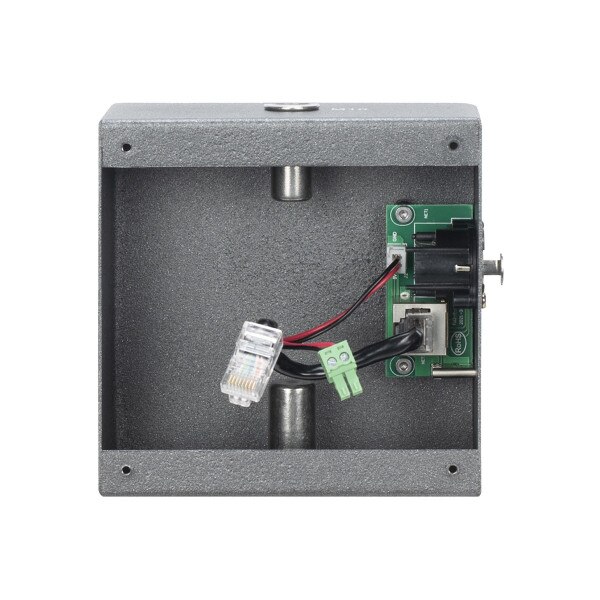

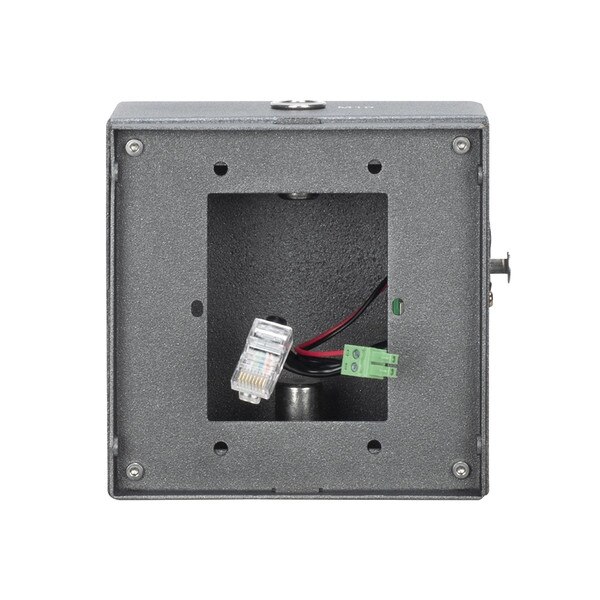

• Standalone (backbox included)
• Truss-mount (M10 + M12 mounting hole)

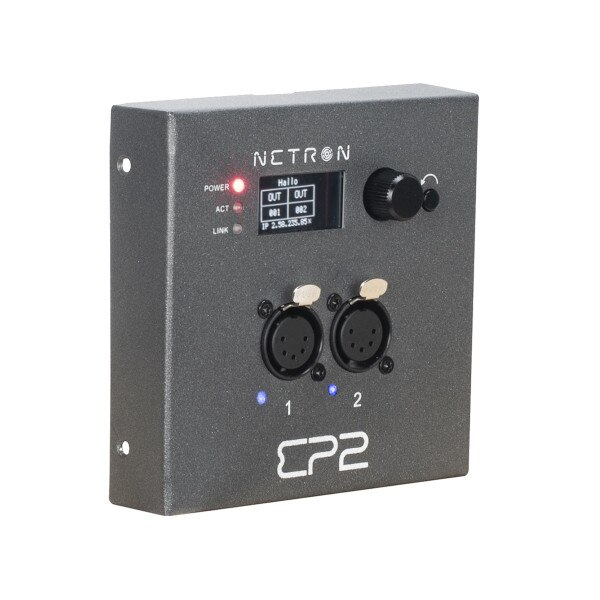

• In or On-wall 2-Gang (US)

Connections:
Front:

• (2) 5pin DMX/RDM optically isolated ports
• Ports are bidirectional for DMX In and Output

Side:

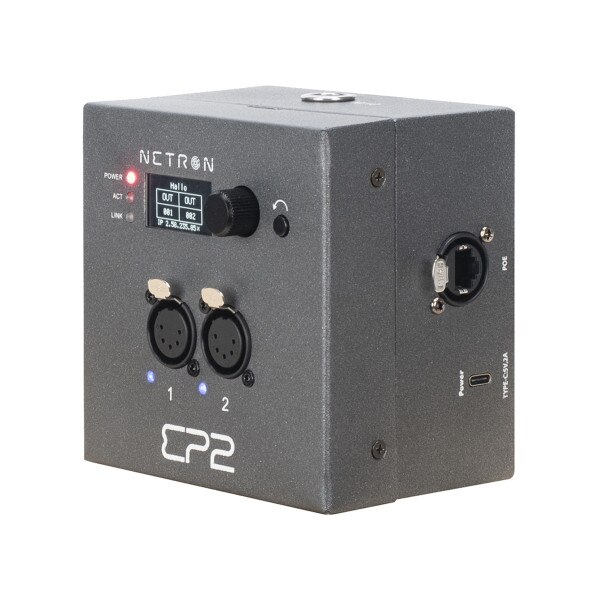

• (1) Locking RJ45 Ethernet network connections (POE)
• USB-C power option (5V, 2A)

Physical:

• Length: 4.6 in. (117.6mm)
• Width: 4.5 in. (114.0mm)
• Height: 3.5 in. (89.1mm)
• Weight: 1.76lbs. (0.8kg)

Electrical:

• USB-C 5V
• POE 802.3af
• Power Consumption 2.8W
