Elation Fuze Wash Z350

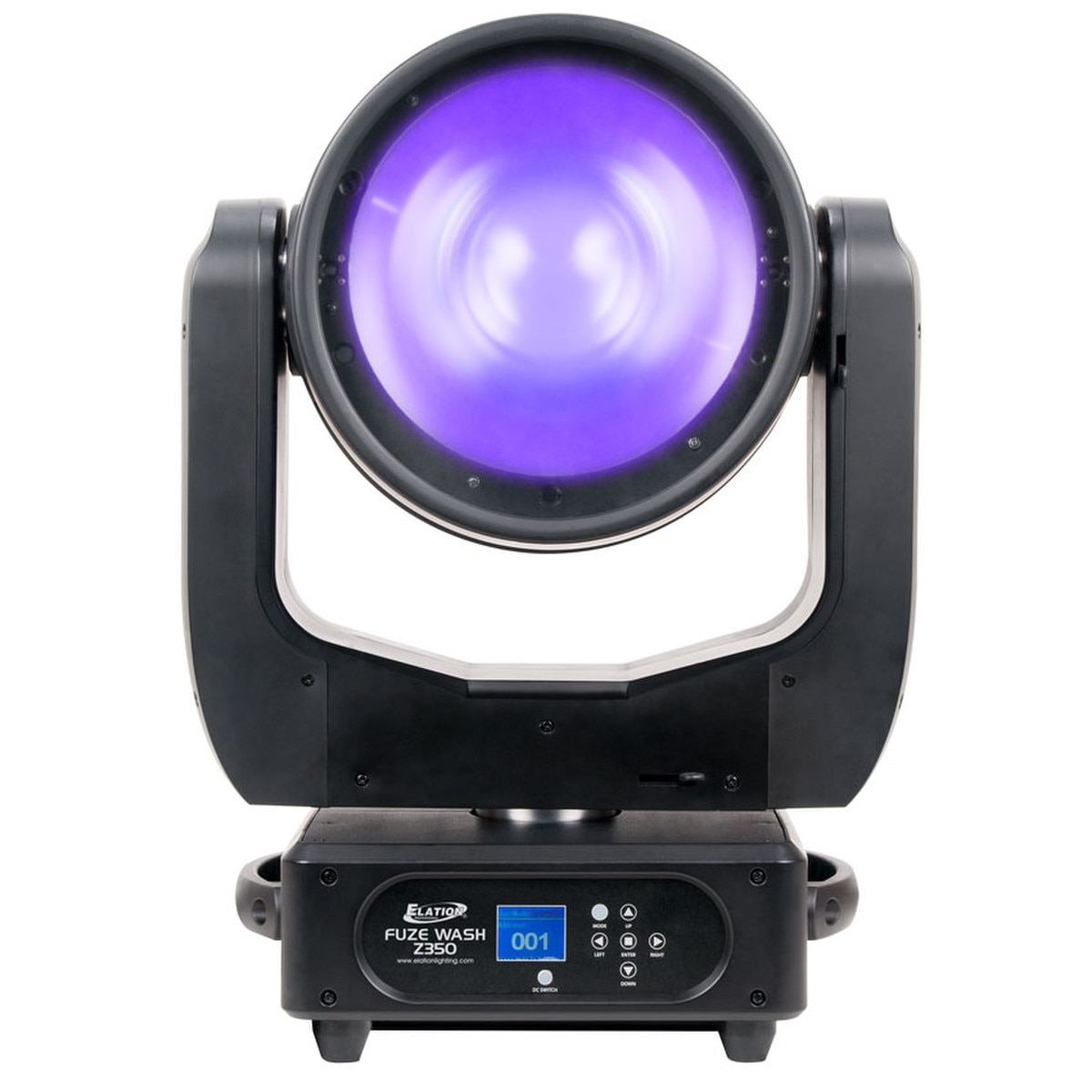

The FUZE WASH Z350™ is a single source par moving head luminaire featuring a 350W Quad Color RGBW COB LED, 6° to 46° motorized zoom, pan and tilt, RGBW color mixing, variable dimming curve and strobe effects, DMX and RDM (remote device management) protocol support, DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Size / Weight:

• Length: 16.3" (414mm)
• Width: 11.6" (294mm)
• Vertical Height: 22.7" (578mm)
• Weight: 45 lbs. (20.4 kg)

Electrical / Thermal:

• AC 110-240V - 50/60Hz
• 399W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 1360.59

Effects:

• RGBW Color Mixing
• 6° to 46° Beam Zoom Range
• Electronic Strobe, Dimming and Variable Dimming Curves
• 64 Color Presets and 14 Unique Color Macros
• Pan Angle: 540°/630°
• Tilt Angle: 250°

Control / Connections:

• 4 DMX Channel Modes (19 Total Channels)
• 7 Button Control Panel and LCD Menu Display
• RDM (Remote Device Management)

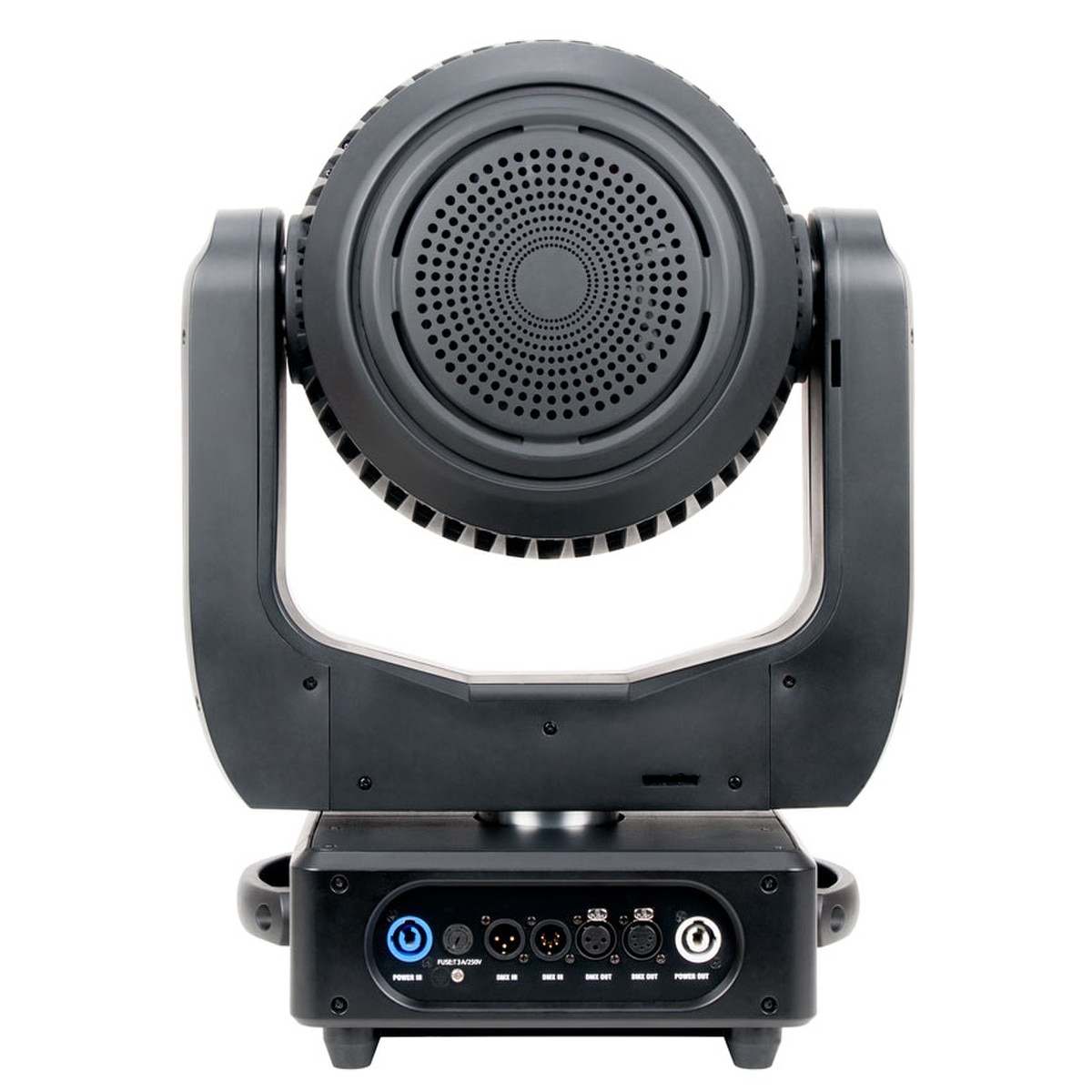

• 3pin/5pin DMX and Locking Power Cable In/Out
• With Wired Digital Communication Network

Color:

• RGBW

Source:

• 350W RGBW COB LED
• 100,000 Hour Average LED Life

Features:

• 350W RGBW COB LED Moving Head Wash Luminaire
• RGBW Color Mixing
• 6° to 46° Wide Motorized Zoom Range
• Variable Dimming Curves
• Multiple Unit Power Linking
• RDM (Remote Device Management)
• Flicker Free Operation for TV and FILM
