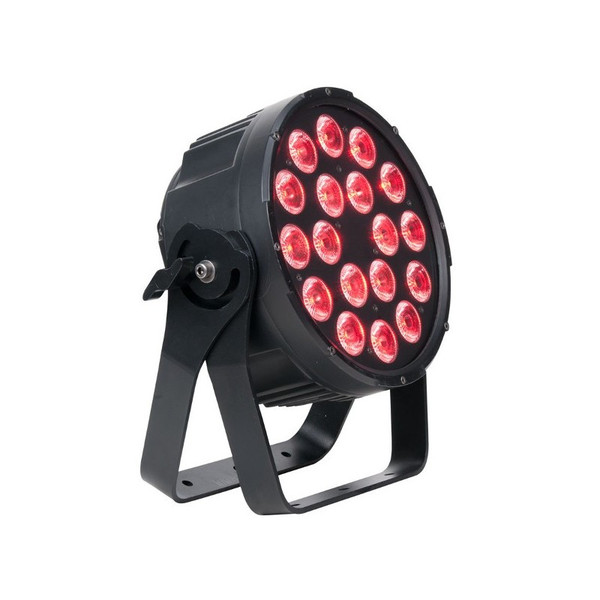

Elation SixPar 300IP
Details
The new IP65 rated SIXPAR 300IP features eighteen 12W 6-IN-1 RGBAW+UV LEDs, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum exterior, and a multi-voltage universal auto switching power supply (110-250v).
Features:
- General:
- IP65 Rated
- 15 degrees Beam 25 degrees Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM - Remote Device Management
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Source:
- (18) 12W 6-in-1 RGBAW+UV LEDs
- 100,000 Hour Average LED Life
Photometric Data:
- 24,500 LUX 2,276 FC @3.3’ (15 degrees Full ON)
- 8,500 LUX 790 FC @6.6’ (15 degrees Full ON)
- 3,950 LUX 367 FC @9.8’ (15 degrees Full ON)
- 2,150 LUX 200 FC @13.1’ (15 degrees Full ON)
- 1,350 LUX 125 FC @16.5’ (15 degrees Full ON)
Effects:
- Electronic Strobe
- Color and Chase Macros
- Electronic Dimming: 0% - 100%
- 5 Variable Dimming Curve Modes
Control / Connections:
Size / Weight:
- (4) DMX Channel Modes (6 / 7 / 8 / 12)
- (4) Button Touch Control Panel
- LCD Menu Display
- IP DMX In/Out
- IP Power In/Out
Electrical / Thermal:
- Length: 14.4”
- Width: 6.2”
- Vertical Height: 14.4”
- Weight: 19.2 lbs
- AC 110-250V - 50/60Hz
- 220W Max Power Consumption
- Power Linking: 5pcs @110V / 10pcs @240V
- 5 degrees F to 113 degrees F (-15 degrees C to 45 degrees C)
- UV Wavelength: 395nmApprovals / Ratings:
- CE | IP65
Installation:
- Rigging: Integrated Dual Yoke / Floor Stand
- Working Position: Any (360 degrees )
