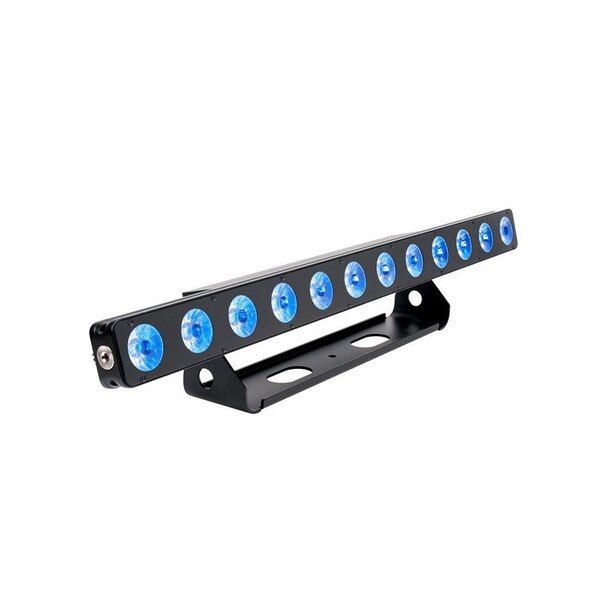

Elation Six Bar 1000

Features:

• 30 degrees Beam Angle
• ArtNet and Klingnet Support
• RDM - Remote Device Management
• Individual LED Control
• Variable Dimming Curve Modes
• Multiple Unit Power Linking
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and film
• Included Items: (1) powerCON Cable

Specifications:

• Source:
  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life
• Photometric Data:
  • 8,500 LUX 790 FC @3.3’ (1m) (30 degrees Full ON)
  • 3,660 LUX 340 FC @6.6’ (2m) (30 degrees Full ON)
  • 2,040 LUX 190 FC @9.8’ (3m) (30 degrees Full ON)
  • 1,290 LUX 120 FC @13.1’ (4m) (30 degrees Full ON)
  • 878 LUX 82 FC @16.4’ (5m) (30 degrees Full ON)
• Effects:
  • Strobe and Chase Effects
  • Individual LED Control
  • Variable and Selectable Dimming Curves
• Control / Connections:
  • 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
  • 4 Button Control Panel and LCD Menu Display
  • ArtNet + KlingNET Protocol Support
  • RDM (Remote Device Management)
  • (2) RJ45 Ports
  • 5pin DMX In/Out
  • powerCON Power In/Out
• Size / Weight:
  • Length: 35.4” (900mm)
  • Width: 8.1” (206.4mm) *with included shield
  • Vertical Height: 6.1” (155mm)
  • Weight: 13.7 lbs (6.2 kg)
• Electrical / Thermal:
  • AC 110-240V - 50/60Hz
  • 145W Max Power Consumption
  • Power Linking: 6pcs @110V / 15pcs @240V
  • 5 degrees F to 113 degrees F (-15 degrees C to 45 degrees C)
  • UV Wavelength: 395nm
• Approvals / Ratings:
  • CE | IP20
• Installation:
  • Rigging: Integrated Dual Rigging Brackets
  • Working Position: Any (360 degrees )
